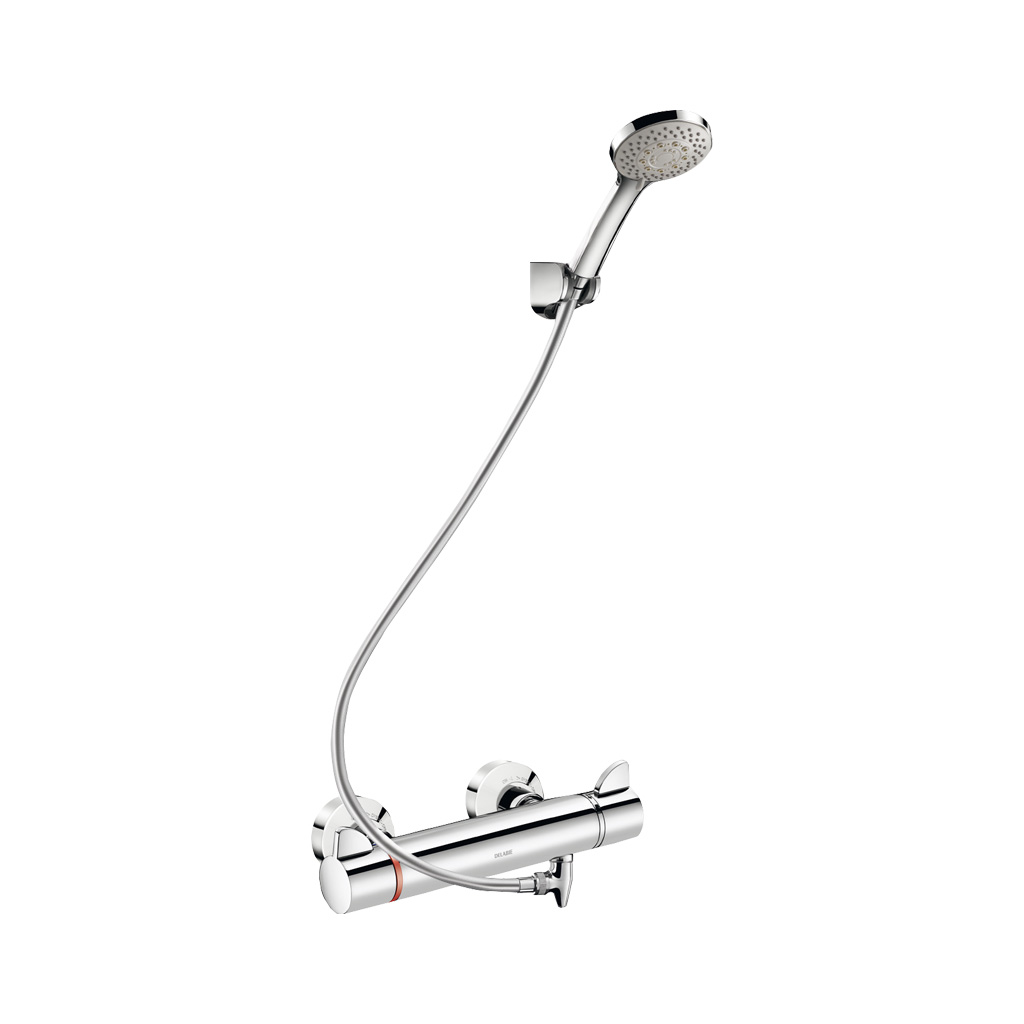

Thermostatic SECURITHERM securitouch auto-drain shower kit.

Ref. H9741HYG
Securitouch dual control thermostatic mixer
Thermostatic SECURITHERM securitouch auto-drain shower kit.

Presentation

DESCRIPTION

Thermostatic SECURITHERM securitouch auto-drain shower kit.

Ref. H9741HYG
SECURITHERM dual control thermostatic shower kit with auto-draining device:
• Shower mixer with scale-resistant thermostatic cartridge:
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic cartridge adjusts the temperature.
¼-turn ceramic valve head adjusts the flow rate.
Temperature control from 25 - 41°C.
Double temperature limiter: 1st limiter set at 38°C can be overridden, 2nd limiter set at 41°C.
Thermal shocks are possible without removing the control knob or shutting off the water supply.
Flow rate regulated at 9 lpm.
Chrome-plated brass body with ERGO controls.
M1/2" shower outlet.
Filters and non-return valves integrated on the inlets, F3/4".
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
• Shower head (ref. 813) with chrome-plated wall-mounted adjustable support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (ref. 880).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.

2024 UK public price excluding VAT: £444.80

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Double maximum temperature limiter

Sécurité anti-brûlure

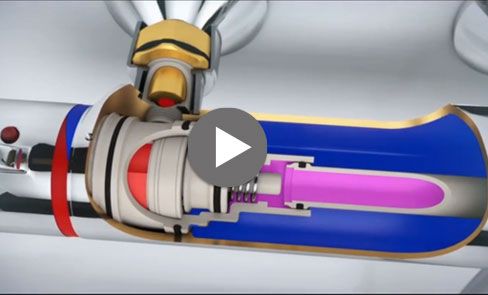

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

Thermostatic SECURITHERM securitouch auto-drain shower kit.

Ref. H9741HYG
Connector M1/2"
Technology SECURITHERM Securitouch thermostatic mixer
Depth 92mm
Length 286mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Thermostatic SECURITHERM securitouch auto-drain shower kit.

Ref. H9741HYG

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Thermostatic SECURITHERM securitouch auto-drain shower kit.

Ref. H9741HYG
1. 813
Chrome-plated shower head with 5 jets, M1/2"
2. 836T3
SILVER flexible shower hose
3. 845
Wall-mounted tilting support for shower heads
4. 855755.2P
Offset connectors
5. 880
Auto-draining device

VARIANTS

H9741SHYG Standard offset connectors £409.99 excl. VAT
Thermostatic shower mixer: anti-scalding safety and infection control
Thermostatic shower mixer: anti-scalding safety and infection control

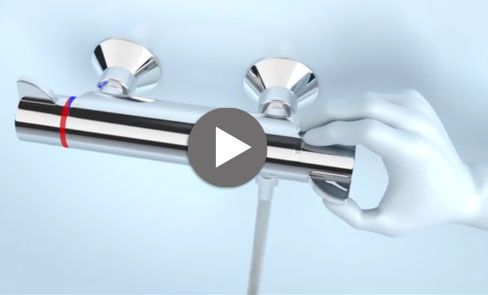

Ergonomic: shower mixer with ERGO controls which are easy to grip
