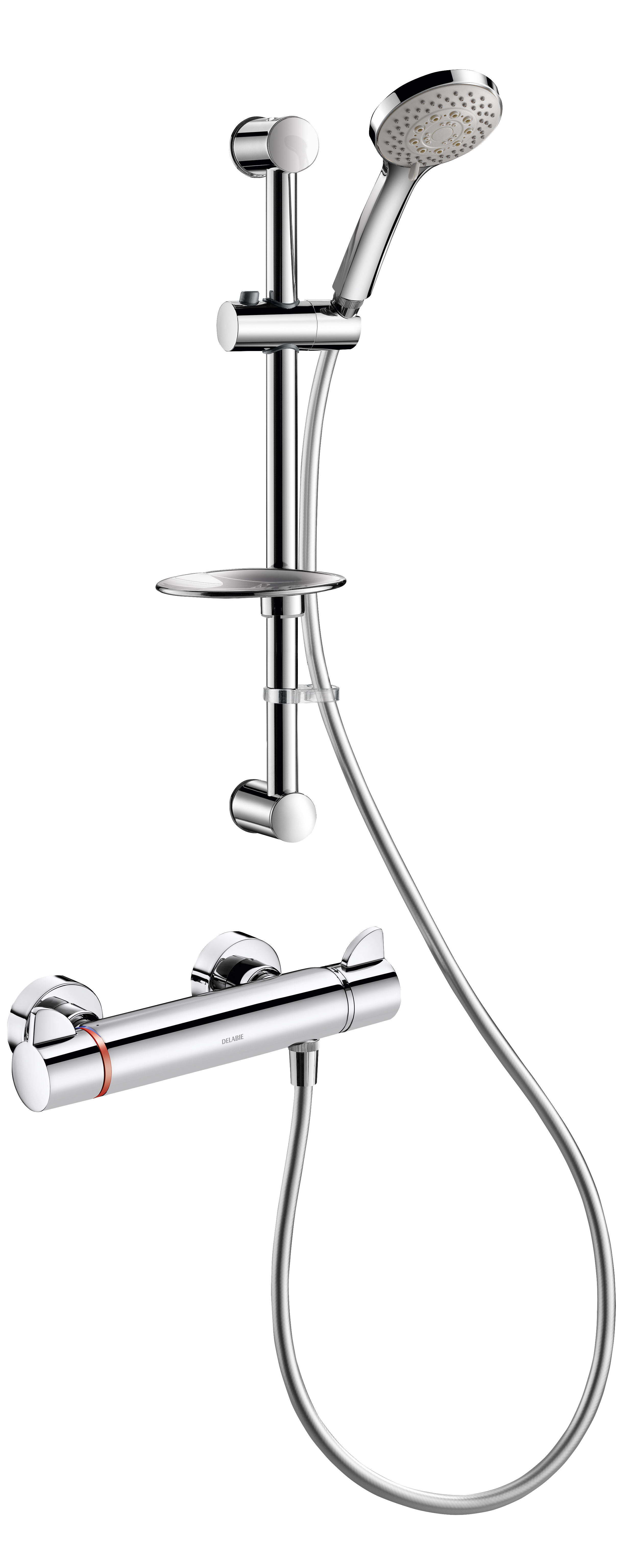

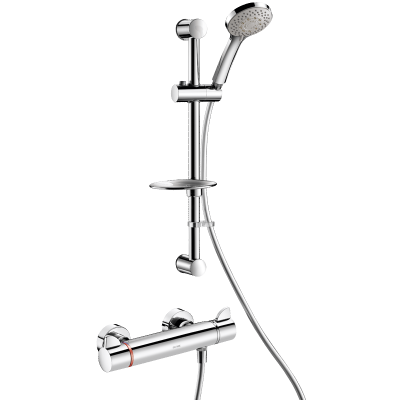

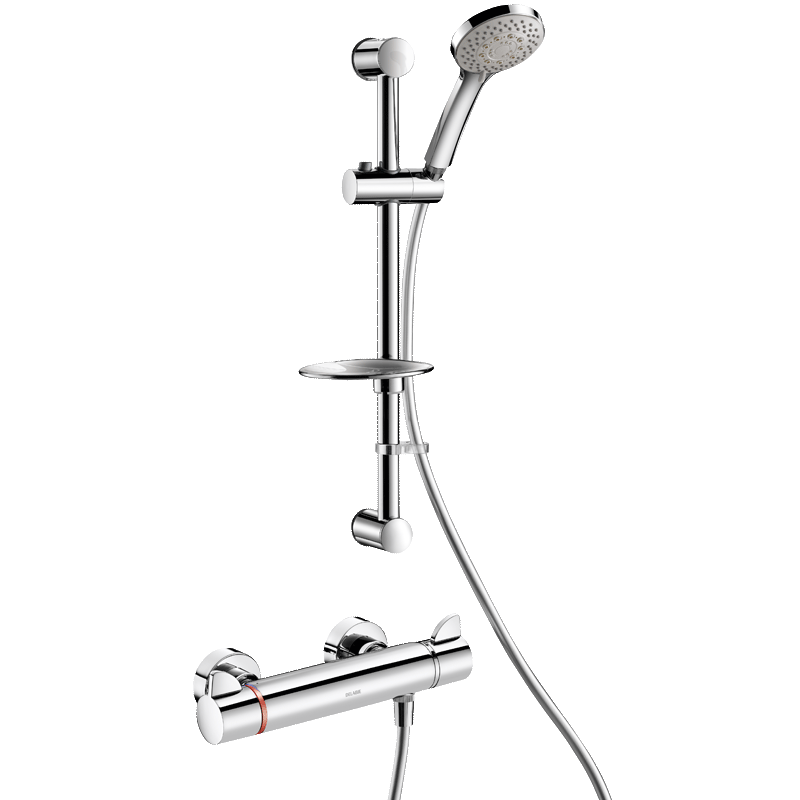

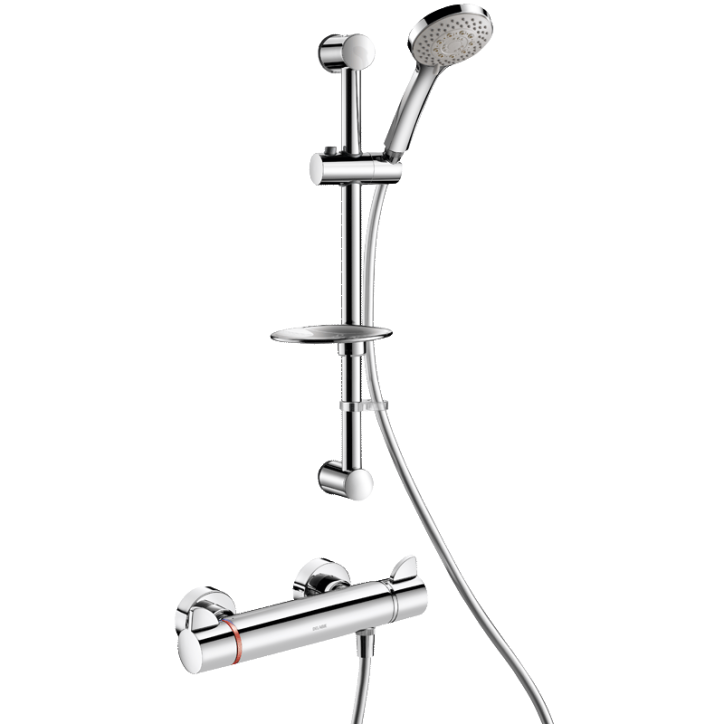

Shower kit with thermostatic mixer

Ref. H9741SKIT
Shower kit with thermostatic mixer
Shower kit with thermostatic mixer

Presentation

DESCRIPTION

Shower kit with thermostatic mixer

Ref. H9741SKIT
Shower riser rail with thermostatic dual control mixer.
Shower kit with SECURITHERM thermostatic shower mixer.
Mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic cartridge adjusts the temperature.
¼-turn ceramic valve head adjusts the flow rate.
Temperature control from 25°C up to 41°C.
Double temperature limiter: 1st limiter set at 38°C, 2nd limiter set at 41°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water.
Flow rate regulated at 9 lpm.
Chrome-plated body and ERGO controls.
M1/2" shower outlet.
Filters and non-return valves integrated in the inlets, F3/4".
Mixer with offset standard wall connectors.
• Sliding shower head holder (ref. 813) on a chrome-plated riser rail (ref. 821) with soap dish and flexible shower hose (ref. 836T1).
• Shower head retaining collar (ref. 830).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics
Mixer suitable for people with reduced mobility.
Shower kit with 30-year warranty.

2024 UK public price excluding VAT: £409.99

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Double maximum temperature limiter

Sécurité anti-brûlure

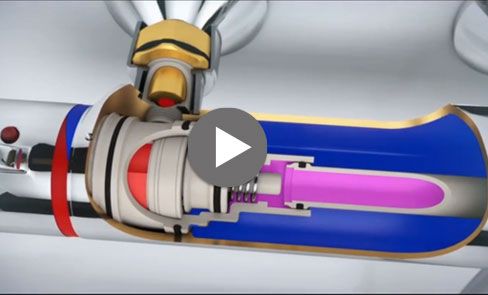

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Characteristics

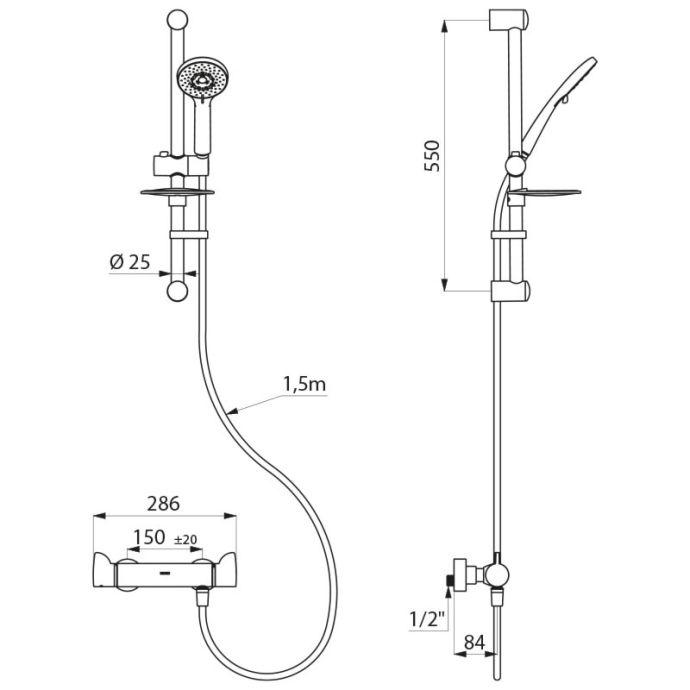

TECHNICAL CHARACTERISTICS

Shower kit with thermostatic mixer

Ref. H9741SKIT
Connector M1/2"
Technology SECURITHERM Securitouch thermostatic mixer,
Depth 84mm
Length 286mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Shower kit with thermostatic mixer

Ref. H9741SKIT

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Shower kit with thermostatic mixer

Ref. H9741SKIT
1. 813
Chrome-plated shower head with 5 jets, M1/2"
2. 821
Chrome-plated shower rail
3. 830
Shower hose retaining collar
4. 836T1
SILVER flexible shower hose
5. 856794.2P
Offset union

VARIANTS

H9741KIT Offset STOP/CHECK connectors £444.80 excl. VAT
Thermostatic shower mixer: anti-scalding safety and infection control
Thermostatic shower mixer: anti-scalding safety and infection control

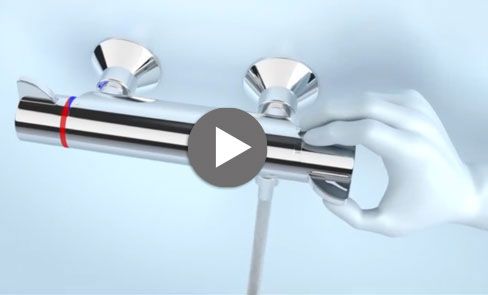

Ergonomic: shower mixer with ERGO controls which are easy to grip
