DESCRIPTION

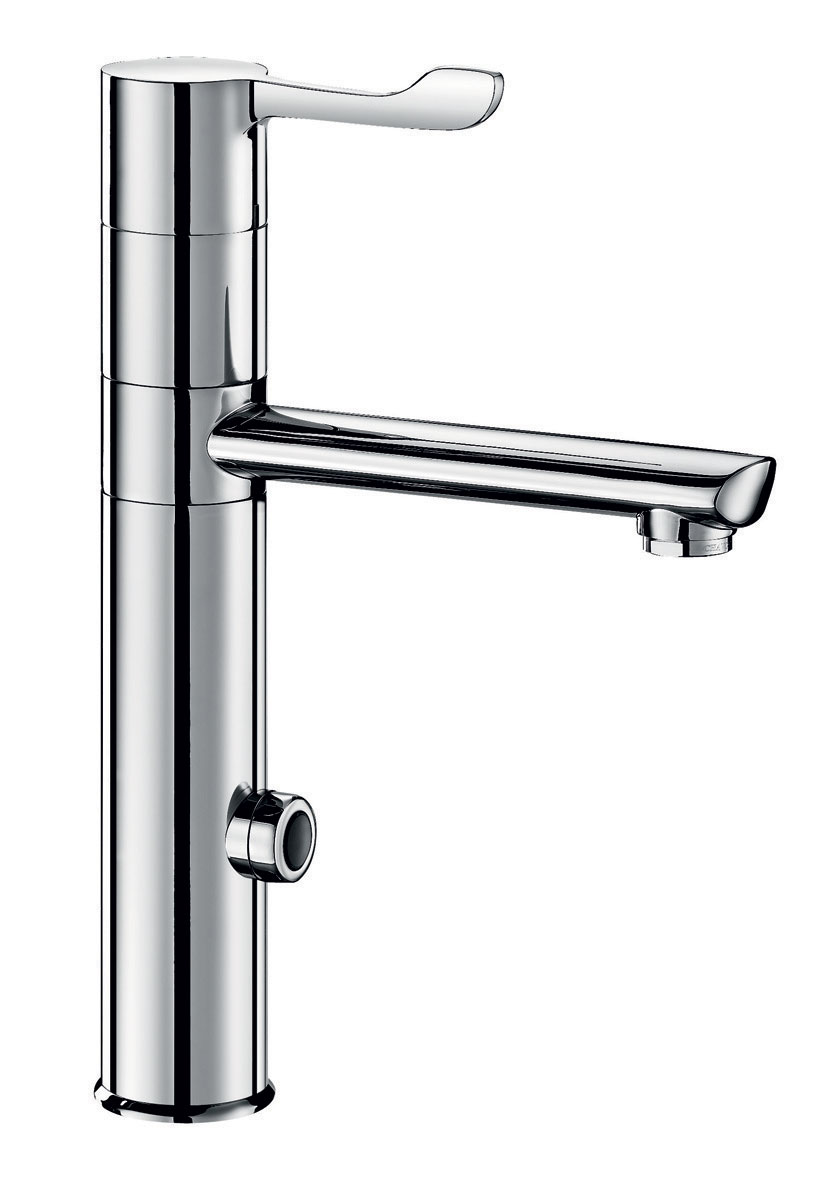

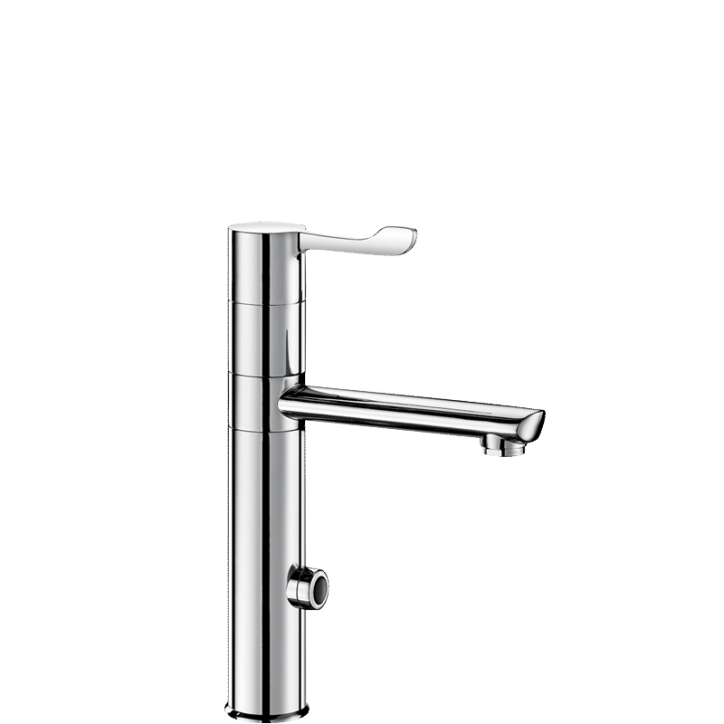

TEMPOMATIC MIX electronic mixer
Ref. 20464T1Electronic basin mixer with high, swivelling spout L. 160mm H. 165mm.
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm, with scale-resistant flow straightener suitable for BIOFIL point-of-use filters.
Body and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (pre-set flush for approximately 60 seconds every 24 hours after the last use, to prevent stagnation in the water supply if the system is not used for prolonged periods).
Thermal shocks are possible.
Shock-resistant infrared presence detection sensor.
Chrome-plated solid brass body and spout; fixing reinforced via 2 stainless steel rods.
Hygiene lever L. 100mm controls temperature.
PEX flexibles with and M3/8" solenoid valves.
Anti-blocking security.
The solenoid valves are upstream of the mixing chamber.
30-year warranty.
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm, with scale-resistant flow straightener suitable for BIOFIL point-of-use filters.
Body and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (pre-set flush for approximately 60 seconds every 24 hours after the last use, to prevent stagnation in the water supply if the system is not used for prolonged periods).
Thermal shocks are possible.
Shock-resistant infrared presence detection sensor.
Chrome-plated solid brass body and spout; fixing reinforced via 2 stainless steel rods.
Hygiene lever L. 100mm controls temperature.
PEX flexibles with and M3/8" solenoid valves.
Anti-blocking security.
The solenoid valves are upstream of the mixing chamber.
30-year warranty.
2024 UK public price excluding VAT: £661.80
ADVANTAGES
Automatic anti-bacterial duty flush
Smooth body/spout interior, reduces bacteria
Split delivery, flow rate pre-set at 4 lpm
Infrared detection with no manual contact

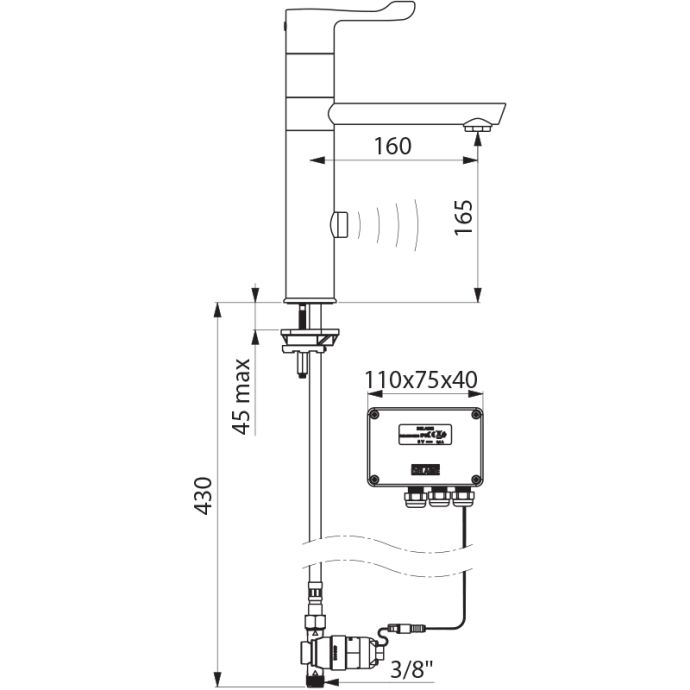

TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX electronic mixer
Ref. 20464T1Supply | 6V Lithium batteries |
Connector | M3/8" |
Technology | Electronic |
Height | 280mm |
Drop height | 165mm |
Spout length | 160mm |
Flow rate | 4 lpm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

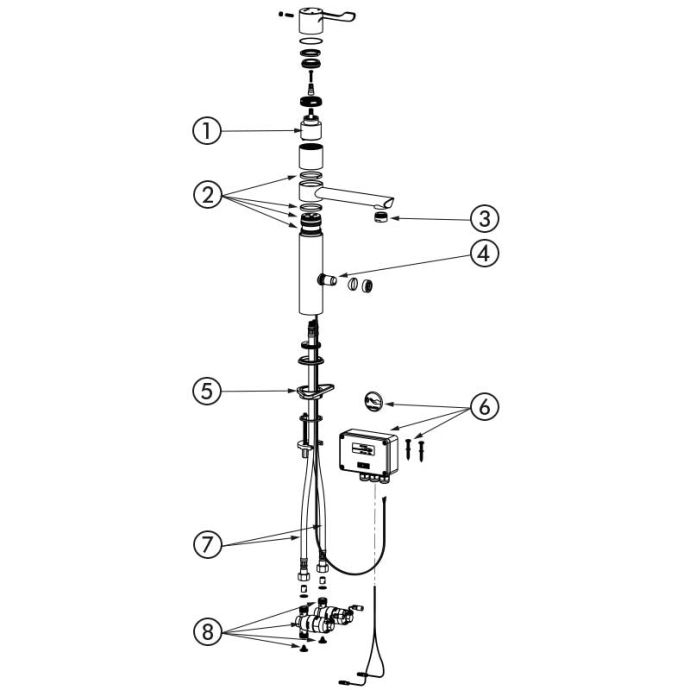

SPARE PARTS
TEMPOMATIC MIX electronic mixer
Ref. 20464T11. | N201AG75 |
|
Ø40mm sequential ceramic cartridge |
2. | 753256 |
|
Replacement O-ring joints |
3. | 921024.2P |
|
Star-shaped flow straightener |
4. | CEL378V |
|
Detector |
5. | 256P |
|
Fixing plate |
6. | 495446BC |
|
Electronic control unit |
7. | 2510SES |
|
Locking kit |
8. | FLEXPEX3 |
|
F3/8" PEX flexible hoses |
9. | 495606 |
|
Solenoid valve |
VARIANTS
20870T1 | Mains supply - removable stainless steel spout H. 160mm L. 183mm | £676.96 excl. VAT | |
---|---|---|---|
20164T1 | Mains supply - swivelling spout, cannot be removed H. 165mm L. 160mm | £584.05 excl. VAT |
VARIANTS
20870T1 | Mains supply - removable stainless steel spout H. 160mm L. 183mm | £676.96 excl. VAT | |
---|---|---|---|
20164T1 | Mains supply - swivelling spout, cannot be removed H. 165mm L. 160mm | £584.05 excl. VAT |
