DESCRIPTION

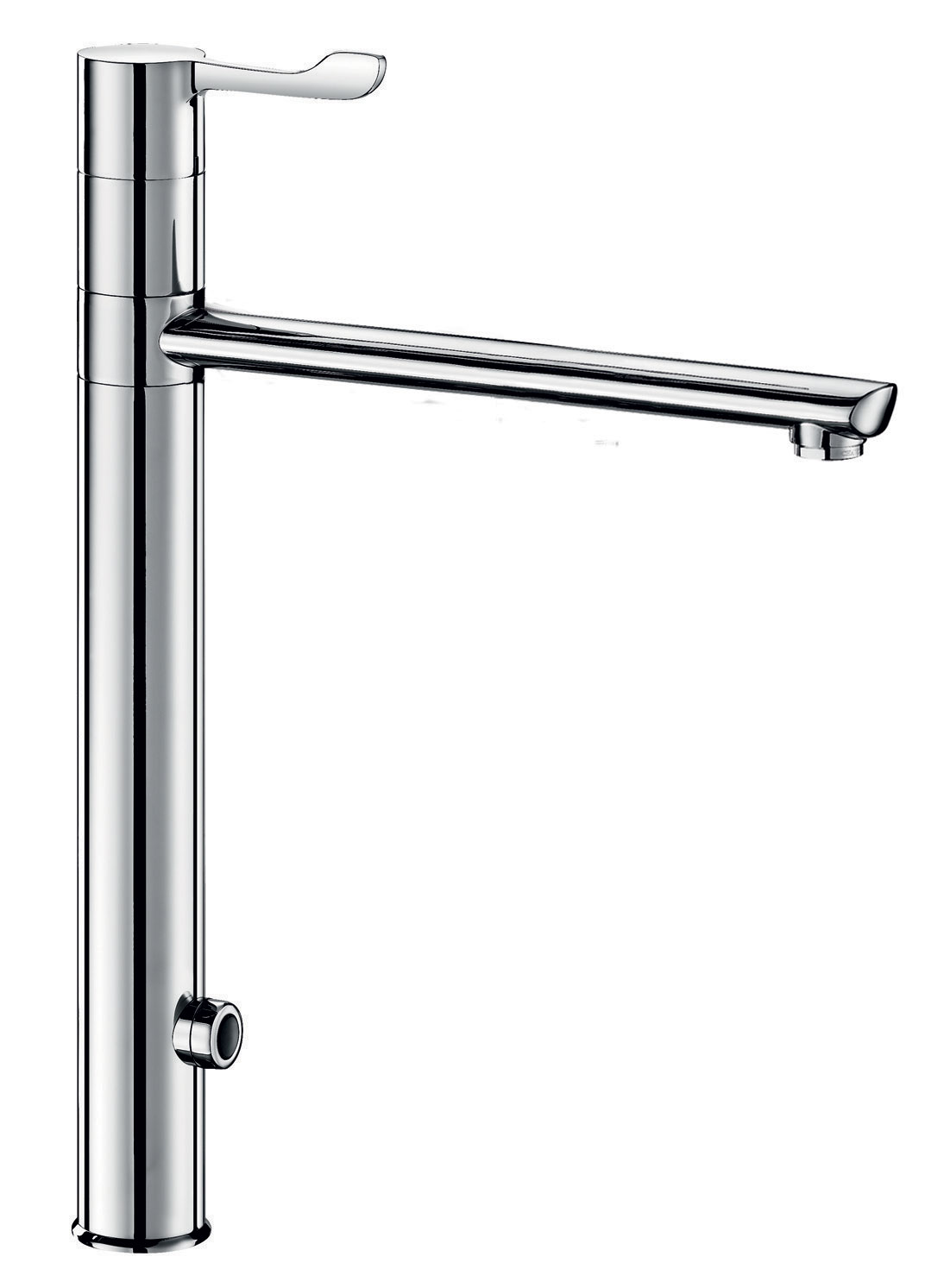

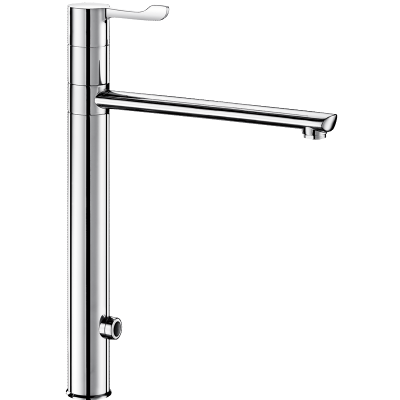

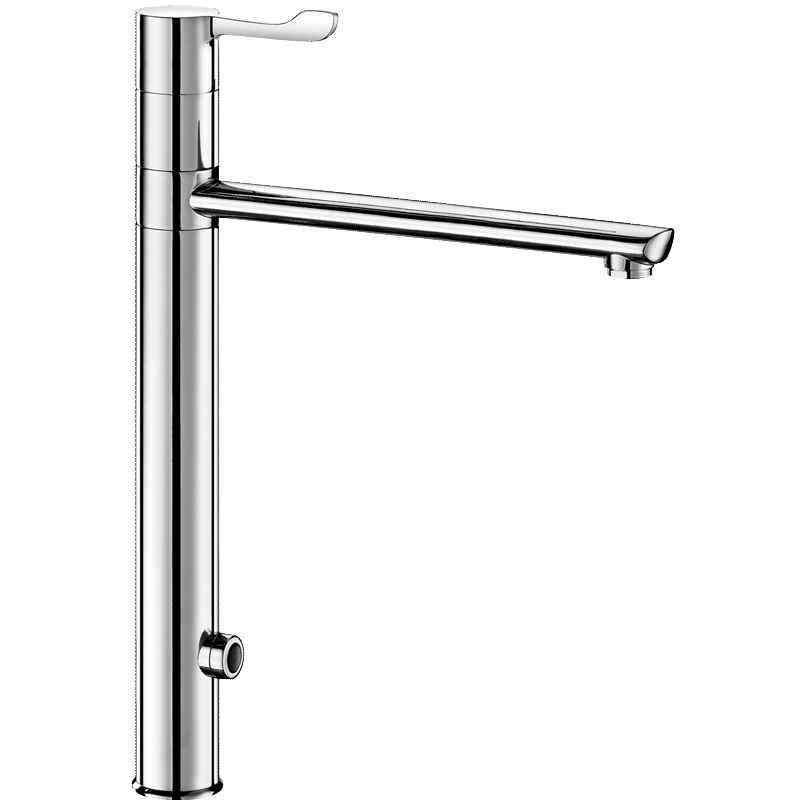

Electronic sink mixer

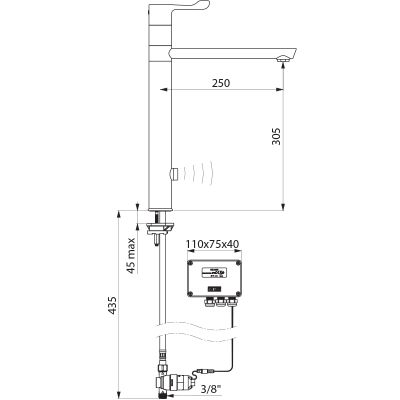

Ref. 20464T4Electronic mixer for sinks and troughs with high, swivelling spout L. 250mm H. 305mm.
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm, with scale-resistant flow straightener suitable for BIOFIL terminal filters.
Chrome-plated solid brass body and spout with reinforced fixing via 2 stainless steel rods.
Body and spout with smooth interiors (fewer niches where bacteria can develop).
Adjustable duty flush, pre-set flush for approximately 60 seconds every 24 hours after the last use, to prevent stagnation in the water supply if the system is not used for prolonged periods.
Thermal shocks are possible.
Shock-resistant infrared presence detection sensor.
Hygiene lever L. 100mm controls temperature.
Supplied with PEX flexibles with and M3/8" solenoid valves.
Anti-blocking security.
30-year warranty.
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm, with scale-resistant flow straightener suitable for BIOFIL terminal filters.
Chrome-plated solid brass body and spout with reinforced fixing via 2 stainless steel rods.
Body and spout with smooth interiors (fewer niches where bacteria can develop).
Adjustable duty flush, pre-set flush for approximately 60 seconds every 24 hours after the last use, to prevent stagnation in the water supply if the system is not used for prolonged periods.
Thermal shocks are possible.
Shock-resistant infrared presence detection sensor.
Hygiene lever L. 100mm controls temperature.
Supplied with PEX flexibles with and M3/8" solenoid valves.
Anti-blocking security.
30-year warranty.
2024 UK public price excluding VAT: £689.81
ADVANTAGES
Automatic anti-bacterial proliferation duty flush
Smooth body/spout interior, reduces bacteria
Split delivery, flow rate pre-set at 3 lpm
Infrared detection with no manual contact
TECHNICAL CHARACTERISTICS
Electronic sink mixer
Ref. 20464T4Connector | M3/8" |
Technology | Infrared presence detection sensor |
Height | 420mm |
Drop height | 305mm |
Spout length | 250mm |
Flow rate | 3 lpm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

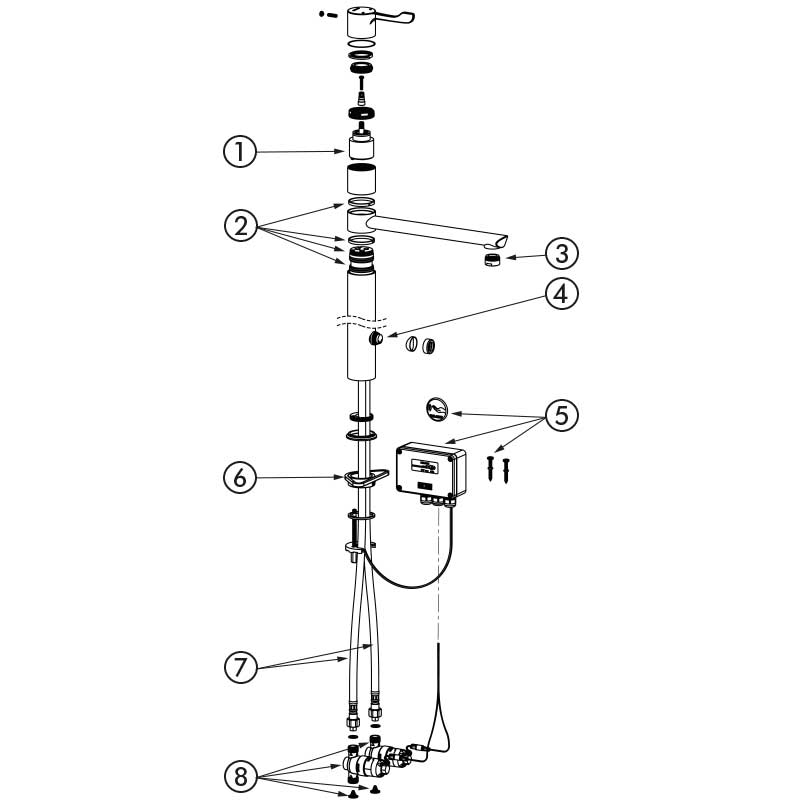

SPARE PARTS
Electronic sink mixer
Ref. 20464T41. | N201AG75 |
|
Ø40mm sequential ceramic cartridge |
2. | 753256 |
|
Replacement O-ring joints |
3. | 921024.2P |
|
Star-shaped flow straightener |
4. | CEL378V |
|
Detector |
5. | 495446BC |
|
Electronic control unit |
6. | 256P |
|
Fixing plate |
7. | 2510SES |
|
Locking kit |
8. | FLEXPEX4 |
|
F3/8" PEX flexible hoses |
9. | 495606 |
|
Solenoid valve |
VARIANTS
20870T3 | Mains supply - removable stainless steel spout H. 185mm L. 300mm | £710.15 excl. VAT | |
---|---|---|---|
20164T4 | Mains supply - Swivelling spout cannot be removed H. 305mm L. 250mm | £636.74 excl. VAT |
VARIANTS
20870T3 | Mains supply - removable stainless steel spout H. 185mm L. 300mm | £710.15 excl. VAT | |
---|---|---|---|
20164T4 | Mains supply - Swivelling spout cannot be removed H. 305mm L. 250mm | £636.74 excl. VAT |
