DESCRIPTION

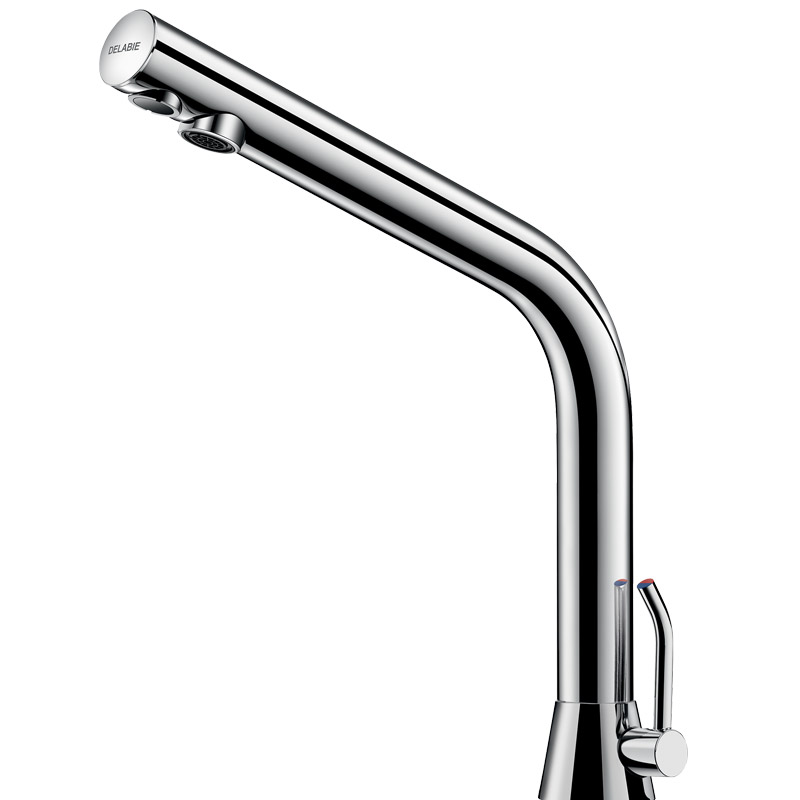

BINOPTIC MIX electronic mixer
Ref. 398MCHLH15Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valve Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 250mm for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valve Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 250mm for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £638.16
ADVANTAGES
![Economie d'eau](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
Exceptional water savings: 90%
![Sans contact manuel](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Hygiene: no manual contact
![Rinçage périodique](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/7/0/3/3071-12-eng-US/rincage-periodique.png)
Anti-bacterial duty flush
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
LED diagnostic aid
TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 398MCHLH15Supply | Secteur 230/12 V |
Connector | M1/2'' Ø 15 |
Technology | Electronic |
Drop height | 250mm |
Spout length | 185mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
388MCHLH15 | Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings | £595.71 excl. VAT | |
---|---|---|---|
488MCHLH15 | Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings | £704.65 excl. VAT | |
498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings | £747.12 excl. VAT |
VARIANTS
388MCHLH15 | Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings | £595.71 excl. VAT | |
---|---|---|---|
488MCHLH15 | Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings | £704.65 excl. VAT | |
498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings | £747.12 excl. VAT |
