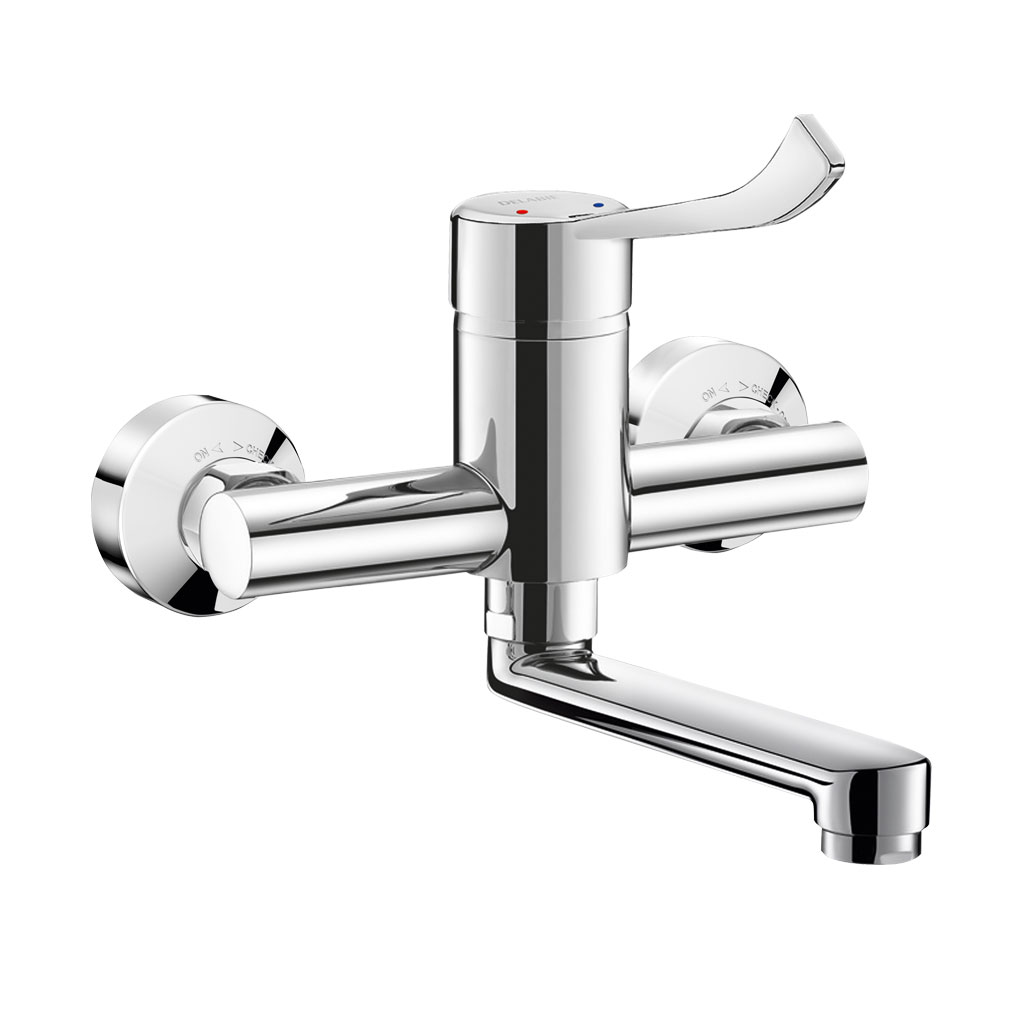

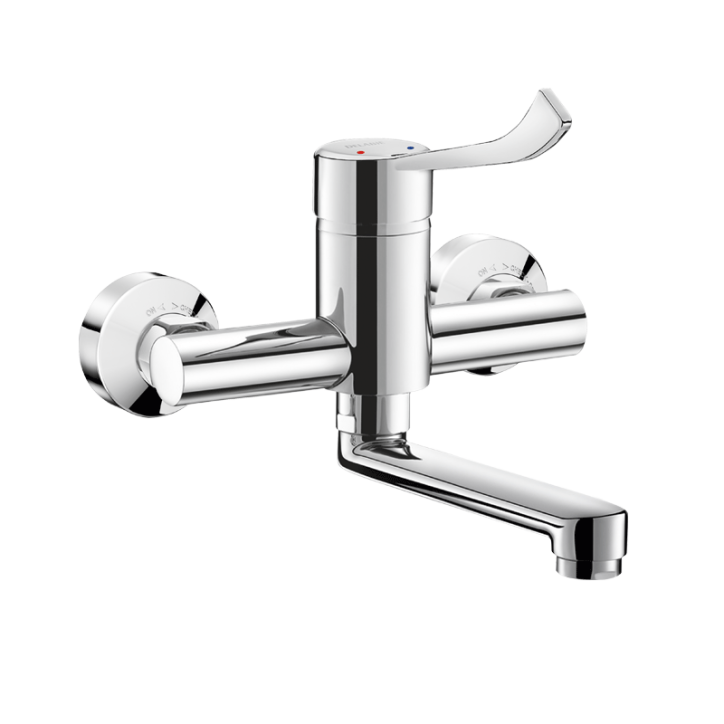

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPUK
Wall-mounted mixer, fixed spout L. 150mm, Hygiene lever L. 150mm
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPUK
Wall-mounted SECURITHERM pressure balancing (EP) basin mixer.
Wall-mounted mixer with flat, fixed under spout L. 150mm with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.

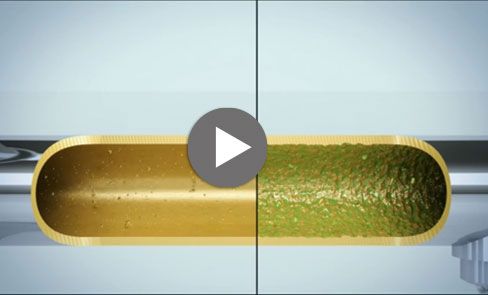

Body and spout with smooth interior and low water volume (reduces bacterial development).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm..
Mixer supplied with in-line STOP/CHECK connectors M1/2" M3/4" ideal for use in hospitals.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £388.95

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow rate reduced if CW fails

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Sécurité anti-brûlure

EP: limits pressure variations

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

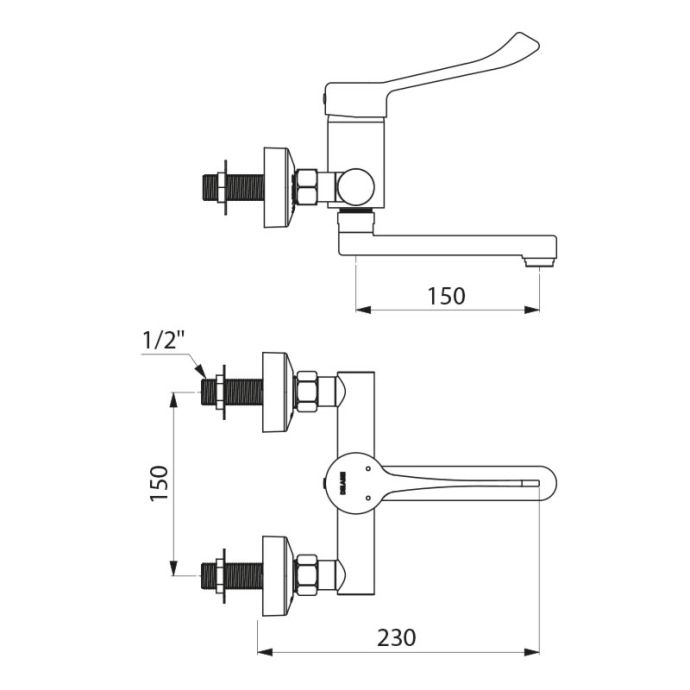

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPUK
Connector M1/2"
Technology SECURITHERM EP mixer, Securitouch
Spout length 150mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates Logo WRAS
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de lavabo à équilibrage de pression SECURITHERM EP

Ref. 2446LEPUK

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

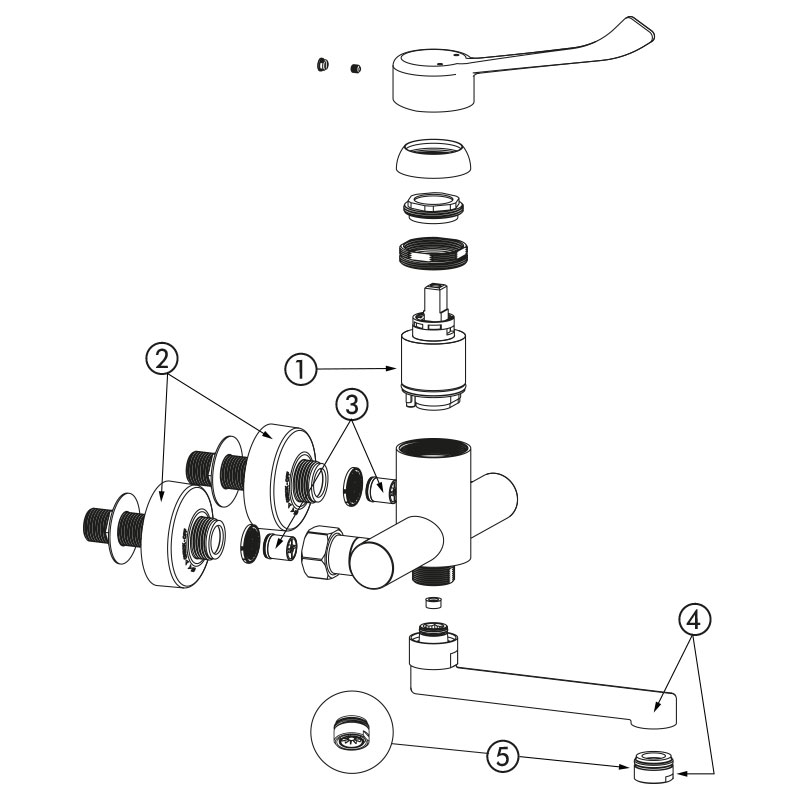

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPUK
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 900015
Non-return valve
3. 60234.10P
Flat filter
4. 855755UK.2P
Inline connectors
5. 900005
Flow limiter
6. 943151
Fixed tubular spout
7. 921024.2P
Star-shaped flow straightener

VARIANTS

2447LEPUK EP cartridge - fixed spout L.150mm - Hyg lever, STOP/CHECK - C-C 200mm £434.10 excl. VAT
2447LUK Std cartridge - fixed spout L.150mm - Hyg lever, STOP/CHECK, C-C 200mm £367.09 excl. VAT
