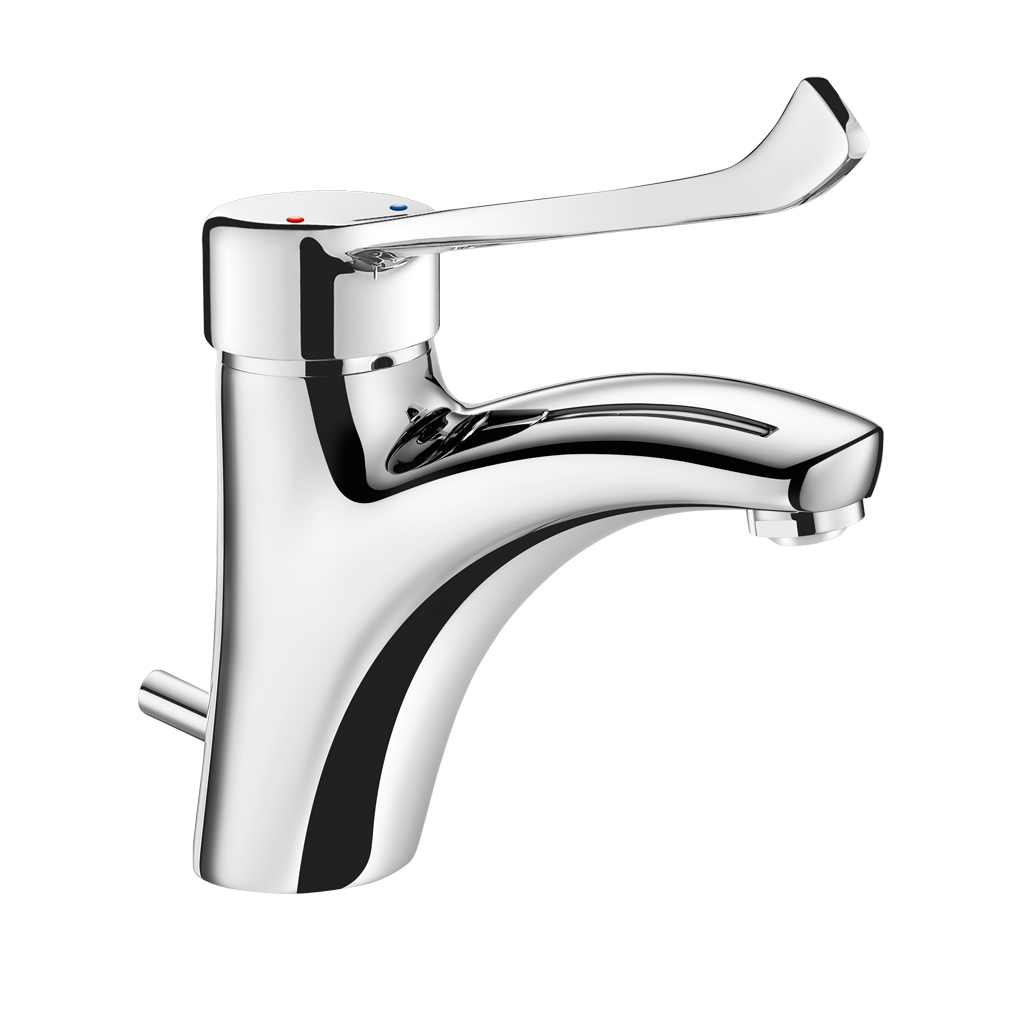

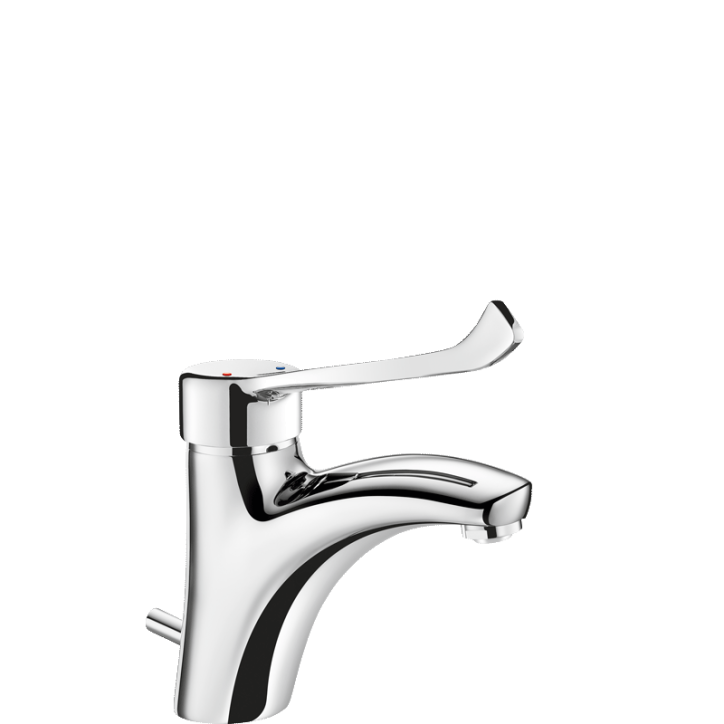

SECURITHERM EP pressure-balancing basin mixer
Ref. 2520LEP

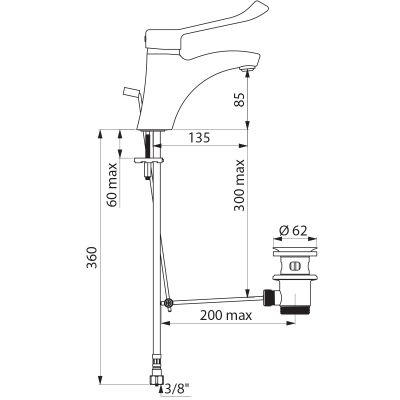

Single hole mechanical mixer H. 85mm, L. 135mm
Single hole mechanical mixer H. 85mm, L. 135mm
DESCRIPTION
SECURITHERM EP pressure-balancing basin mixer
Ref. 2520LEPDeck-mounted mechanical basin mixer with pressure-balancing.
Single hole mixer with spout H. 85mm L. 135mm with BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
Ergonomic, brass pop-up waste 11/4".
F3/8" PEX flexibles with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole mixer with spout H. 85mm L. 135mm with BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
Ergonomic, brass pop-up waste 11/4".
F3/8" PEX flexibles with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
2024 UK public price excluding VAT: £250.87
ADVANTAGES
HW flow rate reduced if CW fails
EP: reduces temperature variations
Hygiene: BIOSAFE hygienic outlet with no grid
Hygiene control lever requires no manual contact

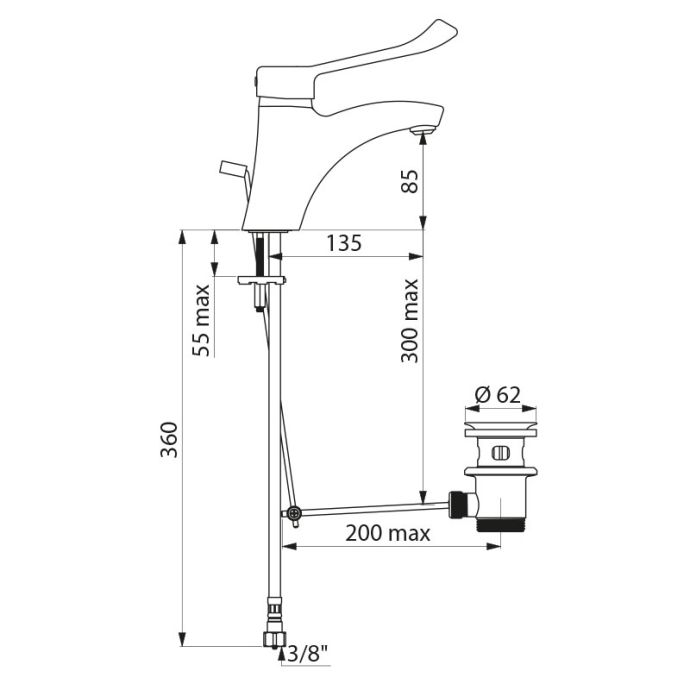

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2520LEP| Connector | F3/8" |
| Technology | SECURITHERM EP mechanical mixer |
| Height | 185mm |
| Drop height | 85mm |
| Spout length | 135mm |
| Flow rate | 5 lpm at 3 bar |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

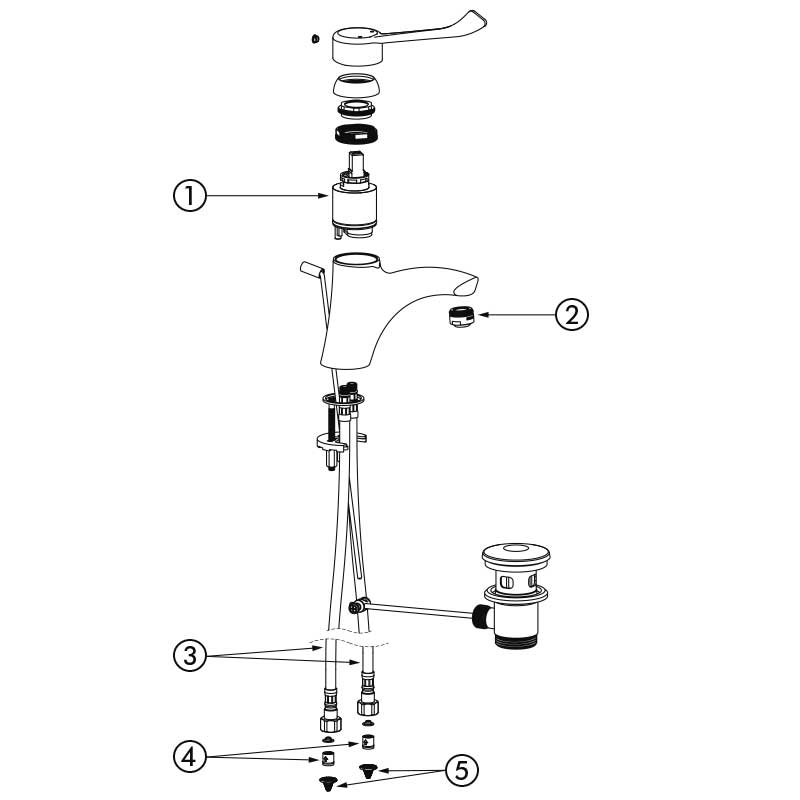

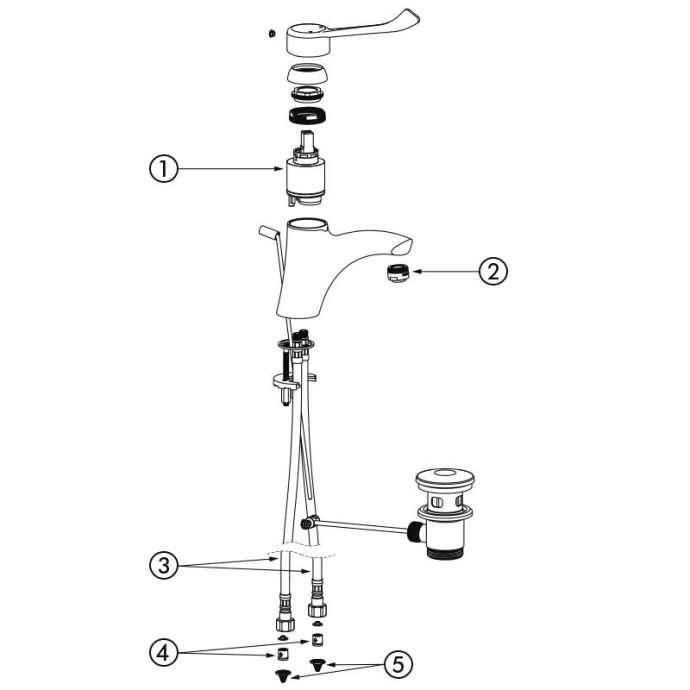

SPARE PARTS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2520LEP
| 1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
| 2. | 923024 |
|
Hygienic BIOSAFE outlet M24/100 |
| 3. | 2520SES |
|
Locking kit |
| 4. | FLEXPEX2 |
|
F3/8" PEX flexible hoses |
| 5. | 900010 |
|
Non-return valve |
| 6. | 60438.10P |
|
Conical filter |
VARIANTS
| 2521TEP | EP cartridge - solid lever - no pop-up waste | £212.38 excl. VAT | |
|---|---|---|---|
| 2521EP | EP cartridge - sculptured lever - no pop-up waste | £212.38 excl. VAT | |
| 2521LEP | EP cartridge - Hygiene lever - no pop-up waste | £225.65 excl. VAT | |
| 2520TEP | EP cartridge - solid lever - pop-up waste | £237.58 excl. VAT | |
| 2520EP | EP cartridge - sculptured lever - pop-up waste | £237.58 excl. VAT | |
| 2521T | Standard cartridge - solid lever - no pop-up waste | £168.57 excl. VAT | |
| 2521 | Standard cartridge - sculptured lever - no pop-up waste | £168.57 excl. VAT | |
| 2521L | Standard cartridge - Hygiene lever - no pop-up waste | £181.86 excl. VAT | |
| 2520T | Standard cartridge - solid lever - pop-up waste | £193.80 excl. VAT | |
| 2520 | Standard cartridge - sculptured lever - pop-up waste | £193.80 excl. VAT | |
| 2520L | Standard cartridge - Hygiene lever - pop-up waste | £208.40 excl. VAT |
Ergonomic: basin mixer with Hygiene lever for hands-free control
Pressure-balancing mixer: anti-scalding safety and stable temperature
Associated products

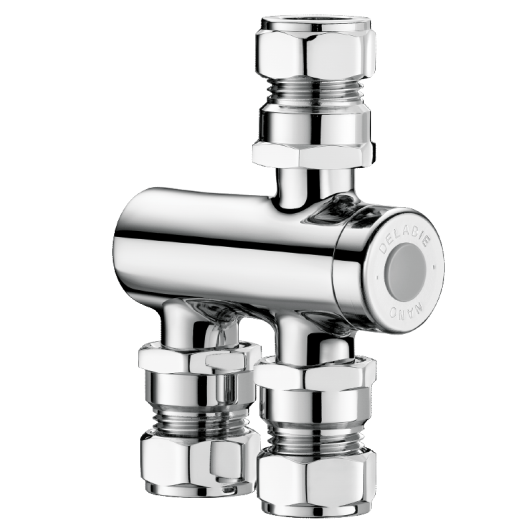

PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116

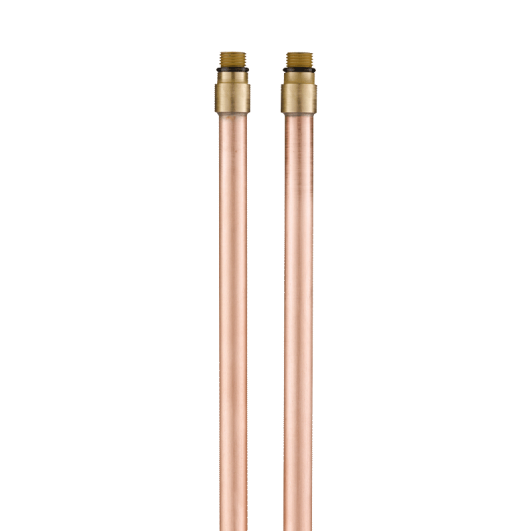

Copper tails
M10 X 1, L. 365mm
Ref. 811610.2P

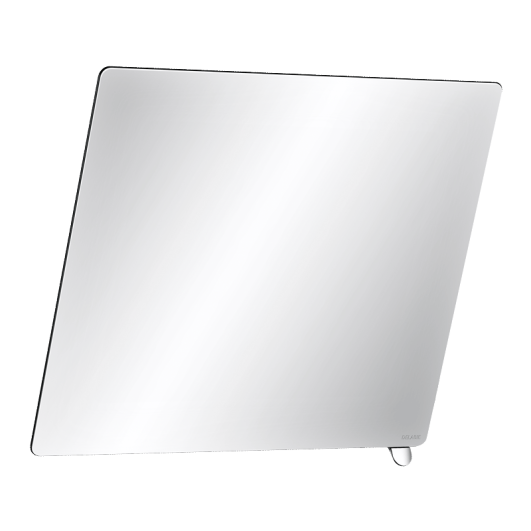

Tilting mirror with handle
Bright chrome handle
Ref. 510202P
VARIANTS
| 2521TEP | EP cartridge - solid lever - no pop-up waste | £212.38 excl. VAT | |
|---|---|---|---|
| 2521EP | EP cartridge - sculptured lever - no pop-up waste | £212.38 excl. VAT | |
| 2521LEP | EP cartridge - Hygiene lever - no pop-up waste | £225.65 excl. VAT | |
| 2520TEP | EP cartridge - solid lever - pop-up waste | £237.58 excl. VAT | |
| 2520EP | EP cartridge - sculptured lever - pop-up waste | £237.58 excl. VAT | |
| 2521T | Standard cartridge - solid lever - no pop-up waste | £168.57 excl. VAT | |
| 2521 | Standard cartridge - sculptured lever - no pop-up waste | £168.57 excl. VAT | |
| 2521L | Standard cartridge - Hygiene lever - no pop-up waste | £181.86 excl. VAT | |
| 2520T | Standard cartridge - solid lever - pop-up waste | £193.80 excl. VAT | |
| 2520 | Standard cartridge - sculptured lever - pop-up waste | £193.80 excl. VAT | |
| 2520L | Standard cartridge - Hygiene lever - pop-up waste | £208.40 excl. VAT |
Ergonomic: basin mixer with Hygiene lever for hands-free control
Pressure-balancing mixer: anti-scalding safety and stable temperature
