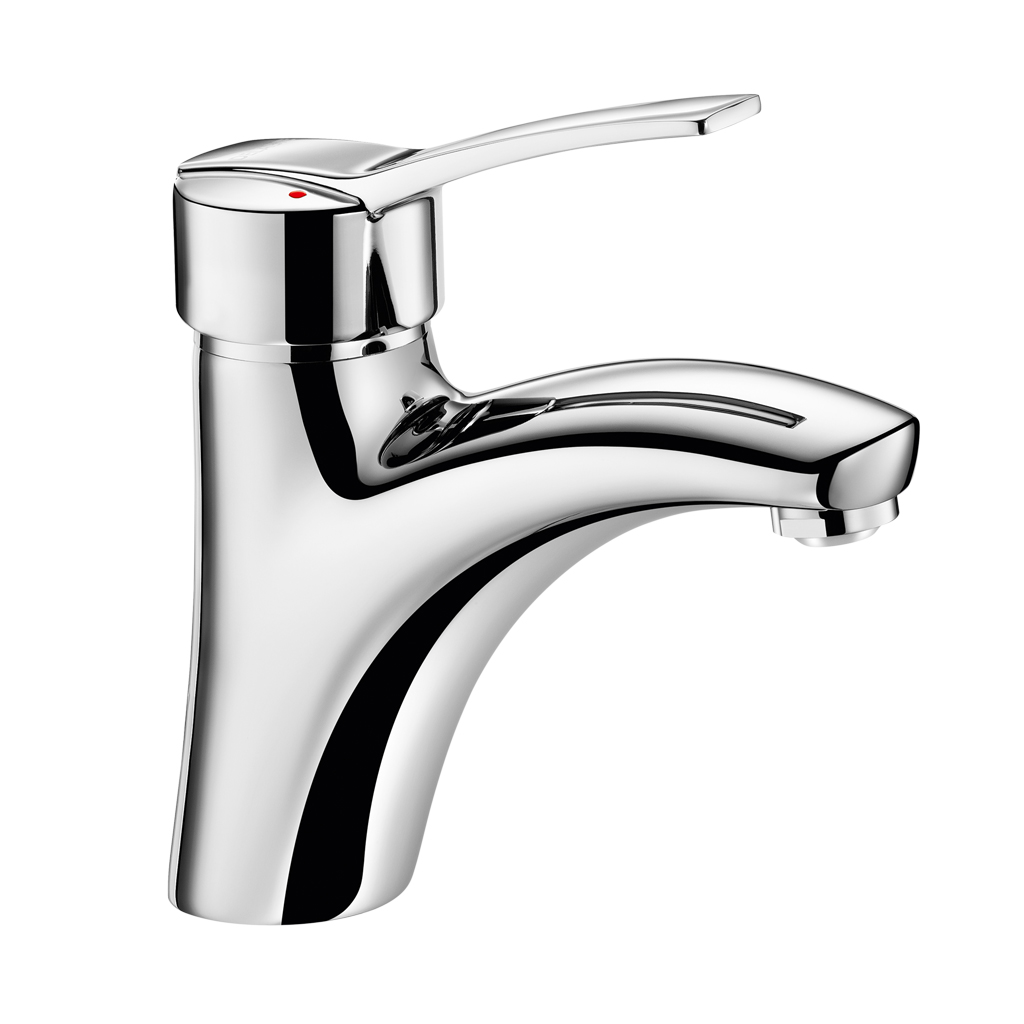

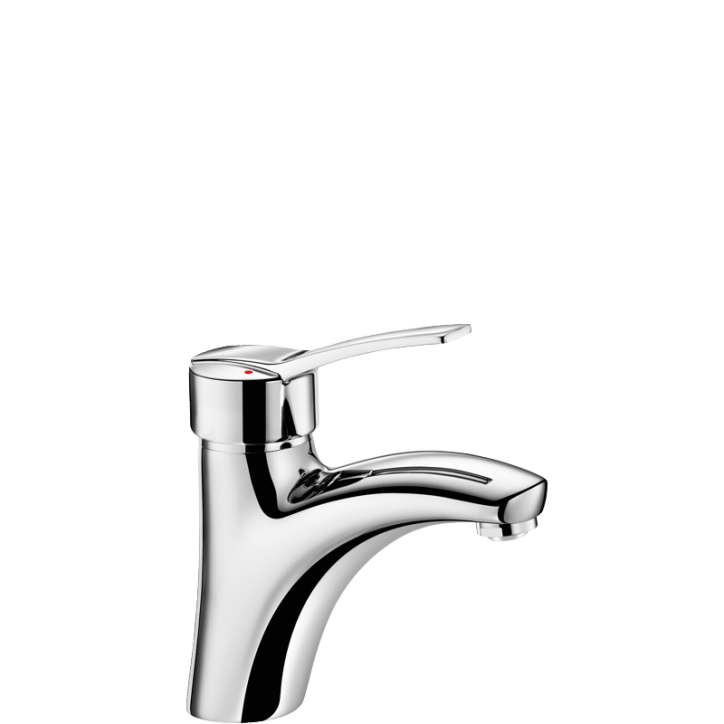

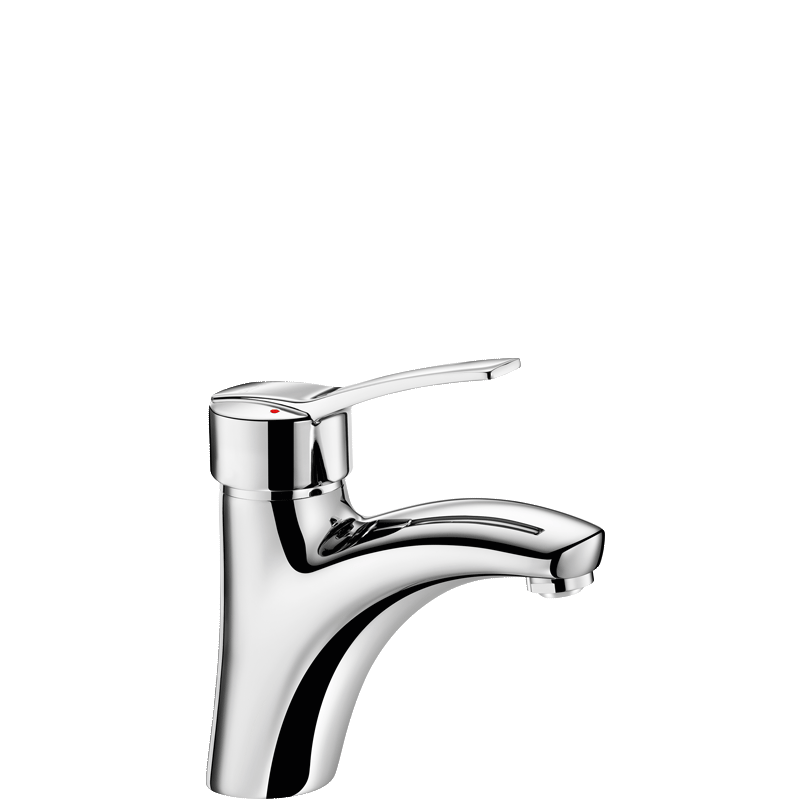

SECURITHERM EP pressure-balancing basin mixer
Ref. 2521TEP

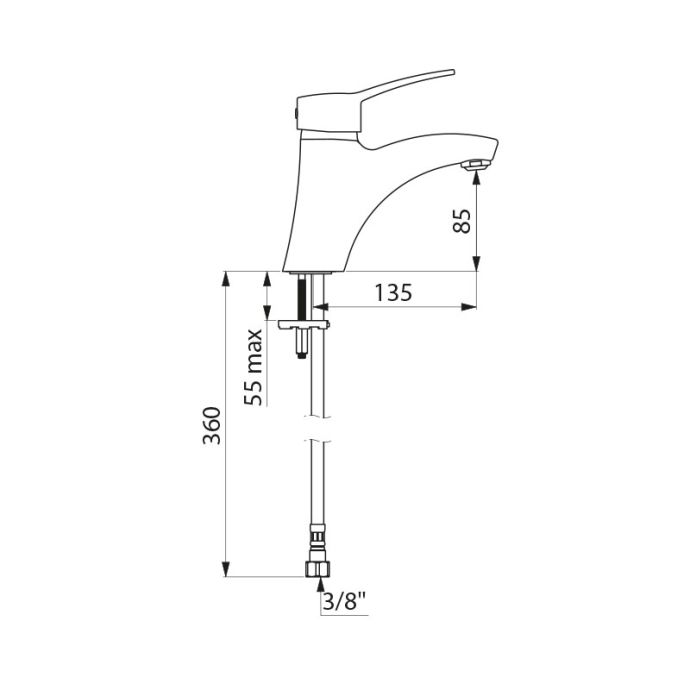

Single hole mechanical mixer H. 85mm, L. 135mm
Single hole mechanical mixer H. 85mm, L. 135mm
DESCRIPTION
SECURITHERM EP pressure-balancing basin mixer
Ref. 2521TEPDeck-mounted mechanical basin mixer with pressure-balancing.
Single hole mechanical mixer with spout H. 85mm L. 135mm with BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Without pop-up waste.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole mechanical mixer with spout H. 85mm L. 135mm with BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Without pop-up waste.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
2024 UK public price excluding VAT: £212.38
ADVANTAGES
![Sécurité anti-brûlure](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
HW flow rate reduced if CW fails
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
EP: reduces temperature variations
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Hygienic: BIOSAFE hygienic outlet with no grid
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Ergonomic: solid control lever is easy to grip
TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2521TEPConnector | F3/8" |
Technology | SECURITHERM EP mechanical mixer |
Height | 165mm |
Drop height | 85mm |
Spout length | 135mm |
Flow rate | 5 lpm at 3 bar |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() ![]() ![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

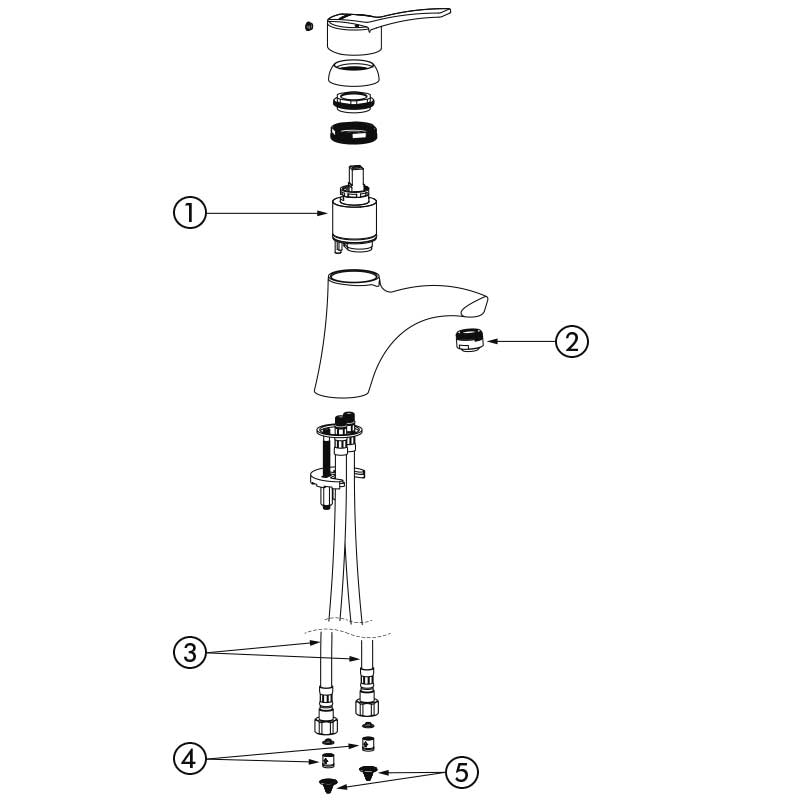

SPARE PARTS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2521TEP![](https://www.delabie.co.uk/var/site/storage/images/8/0/6/7/3167608-1-fre-FR/PD_2521TEP.jpg)
1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
2. | 923024 |
|
Hygienic BIOSAFE outlet M24/100 |
3. | 2520SES |
|
Locking kit |
4. | FLEXPEX2 |
|
F3/8" PEX flexible hoses |
5. | 900010 |
|
Non-return valve |
6. | 60438.10P |
|
Conical filter |
VARIANTS
2520 | Standard cartridge - sculptured lever - pop-up waste | £193.80 excl. VAT | |
---|---|---|---|
2520EP | EP cartridge - sculptured lever - pop-up waste | £237.58 excl. VAT | |
2520L | Standard cartridge - Hygiene lever - pop-up waste | £208.40 excl. VAT | |
2520LEP | EP cartridge - Hygiene lever - pop-up waste | £250.87 excl. VAT | |
2520T | Standard cartridge - solid lever - pop-up waste | £193.80 excl. VAT | |
2520TEP | EP cartridge - solid lever - pop-up waste | £237.58 excl. VAT | |
2521 | Standard cartridge - sculptured lever - no pop-up waste | £168.57 excl. VAT | |
2521EP | EP cartridge - sculptured lever - no pop-up waste | £212.38 excl. VAT | |
2521L | Standard cartridge - Hygiene lever - no pop-up waste | £181.86 excl. VAT | |
2521LEP | EP cartridge - Hygiene lever - no pop-up waste | £225.65 excl. VAT | |
2521T | Standard cartridge - solid lever - no pop-up waste | £168.57 excl. VAT |
