Mechanical mixer for sinks or troughs

Ref. 2564T1
Single control single hole tall mixer with ceramic cartridge
Mechanical mixer for sinks or troughs

Presentation

DESCRIPTION

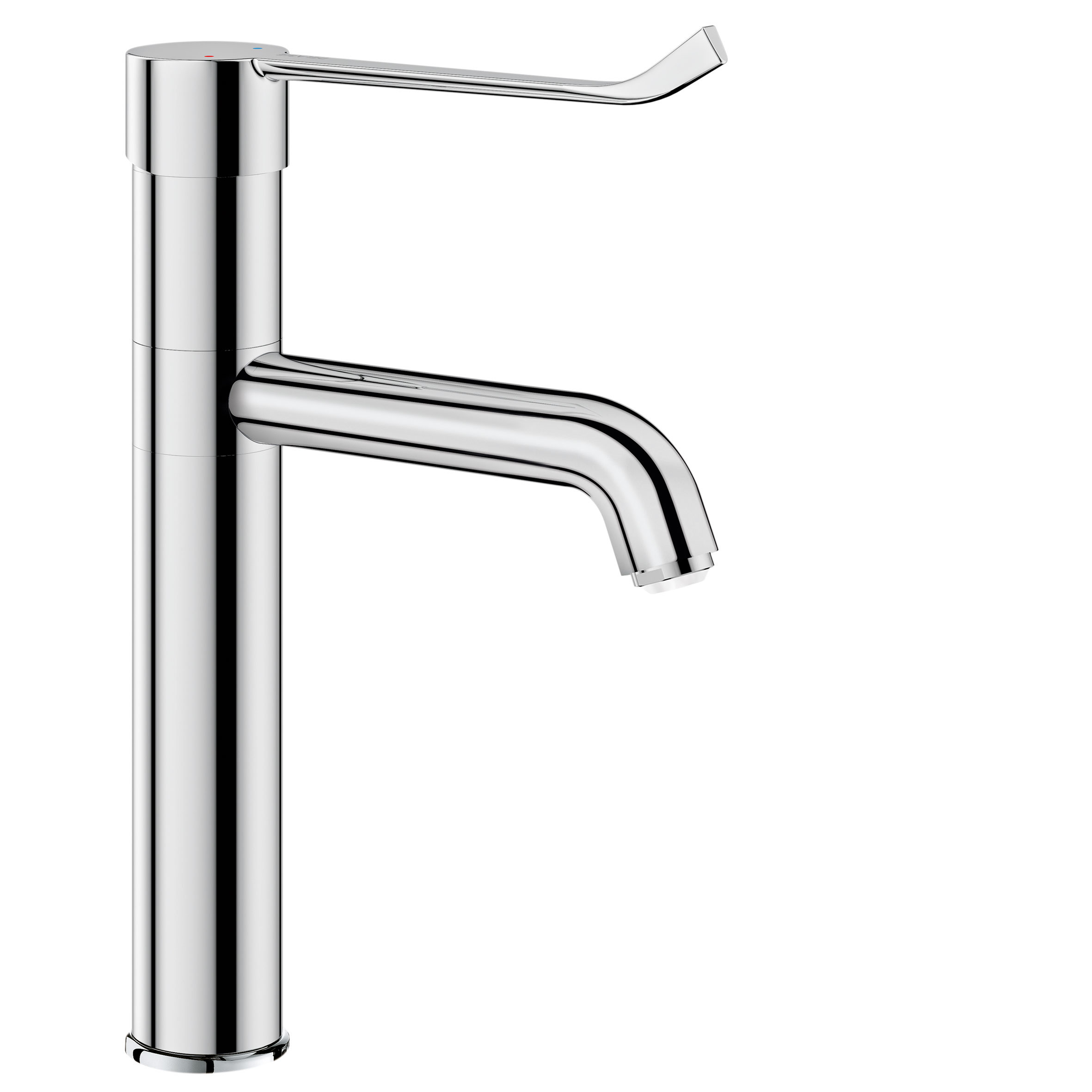

Mechanical mixer for sinks or troughs

Ref. 2564T1
Deck-mounted mechanical basin mixer.
Single control single hole mixer with swivelling spout H. 165mm L. 140mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water.
Flow rate regulated at 5 lpm.
Chrome-plated body, base and spout.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8".
Fixings reinforced by 2 stainless steel rods and back-nuts.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £245.57

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Thermal shock without removing the control lever

Sécurité anti-brûlure

Optimised drop height and spout length

Confort - Ergonomie - Déclenchement souple

No manual contact thanks to Hygiene control lever

Characteristics

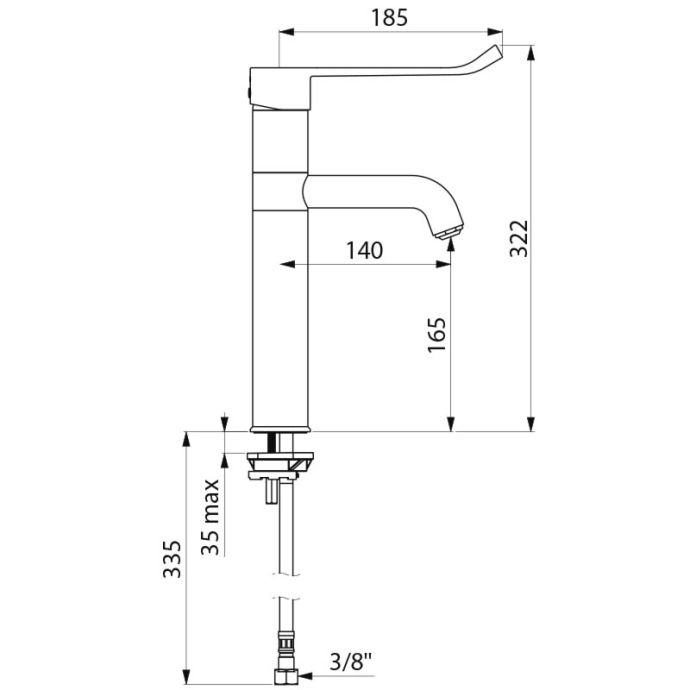

TECHNICAL CHARACTERISTICS

Mechanical mixer for sinks or troughs

Ref. 2564T1
Connector F3/8"
Height 322mm
Drop height 165mm
Spout length 140mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo NF Logo WRAS Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mechanical mixer for sinks or troughs

Ref. 2564T1

To download one or several documents linked to this product, please select the type of file you require :

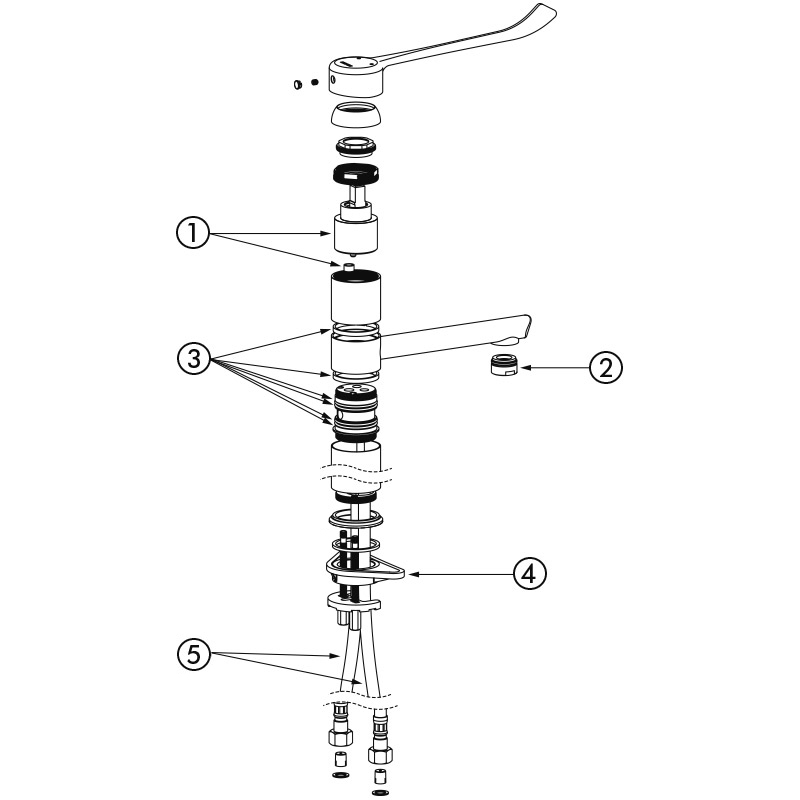

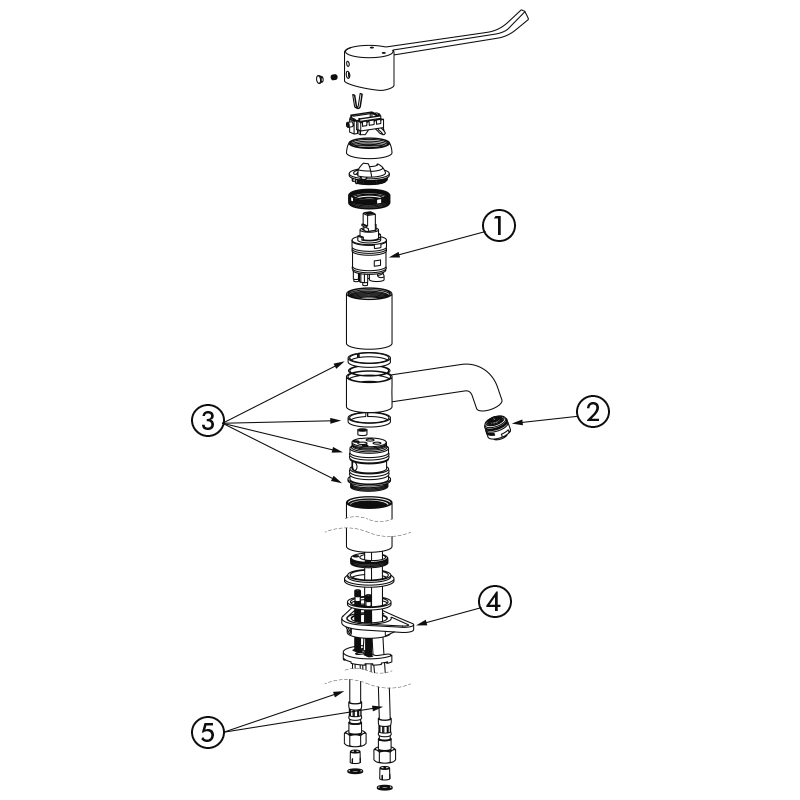

Spare parts

SPARE PARTS

Mechanical mixer for sinks or troughs

Ref. 2564T1
Before August 2021
1. N248AA75
Ø40mm ceramic cartridge
2. 921024.2P
Star-shaped flow straightener
3. 753256
Replacement O-ring joints
4. 256P
Fixing plate
5. 2510SES
Locking kit
6. FLEXPEX3
F3/8" PEX flexible hoses

VARIANTS

2564T5EP EP cartridge - swivelling spout H. 205mm L. 170mm £295.41 excl. VAT
2565T5EP EP cartridge - fixed spout H. 205mm L. 170mm £269.56 excl. VAT
2564T1EP EP cartridge - swivelling spout H. 165mm L. 140mm £285.73 excl. VAT
2565T1EP EP cartridge - fixed spout H. 165mm L. 140mm £260.13 excl. VAT
2564T2EP EP cartridge - swivelling spout H. 165mm L. 220mm £298.52 excl. VAT
2564T5 Standard cartridge - swivelling spout H. 205mm L. 170mm £255.00 excl. VAT
2565T5 Standard cartridge - fixed spout H. 205mm L. 170mm £229.13 excl. VAT
2565T1 Standard cartridge - fixed spout H. 165mm L. 140mm £219.02 excl. VAT
2564T2 Standard cartridge - swivelling spout H. 165mm L. 220mm £258.19 excl. VAT

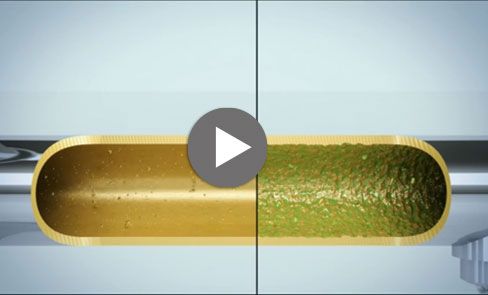

Infection control: mixer body with smooth interior
