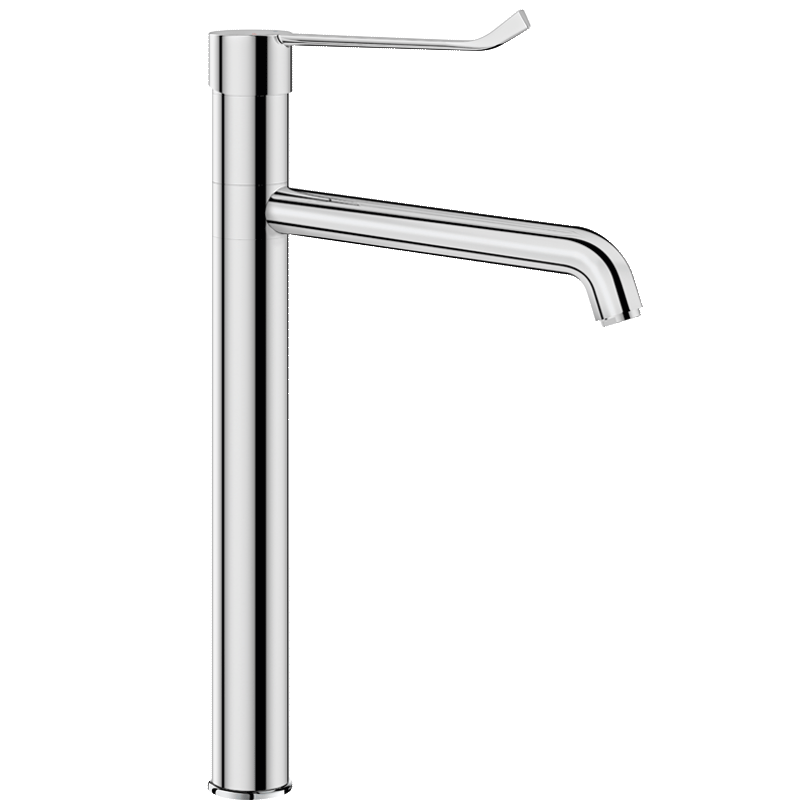

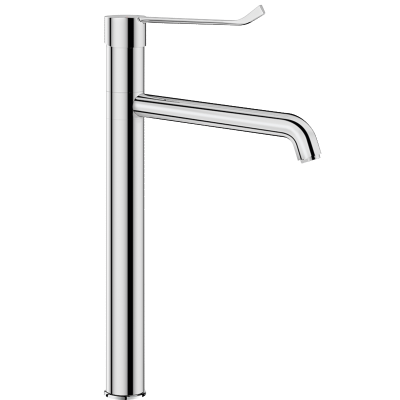

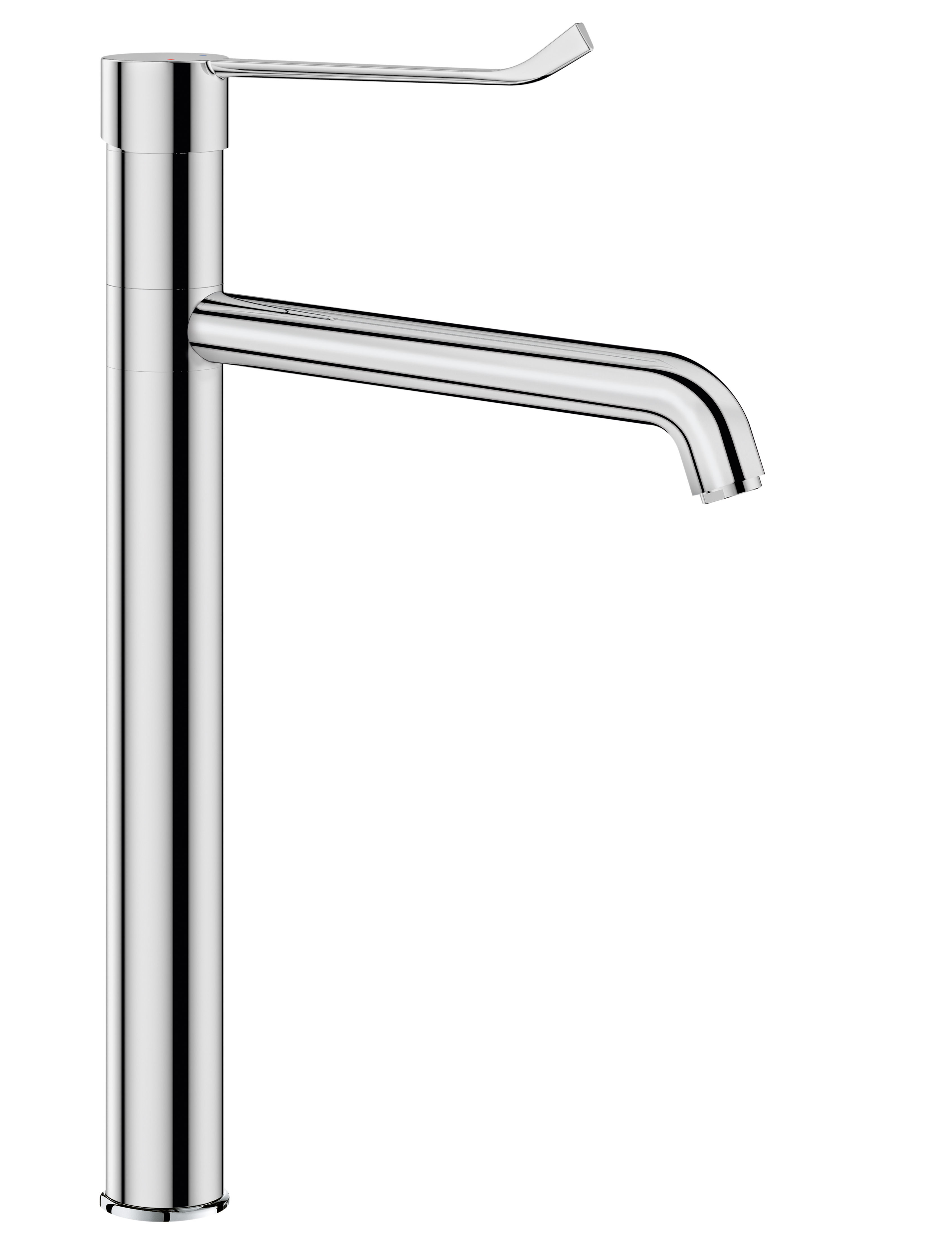

SECURITHERM EP pressure-balancing sink mixer

Ref. 2564T4EP
Tall single hole, single control mixer with EP cartridge
See variants See variants
SECURITHERM EP pressure-balancing sink mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing sink mixer

Ref. 2564T4EP
Deck-mounted SECURITHERM sink mixer with pressure-balancing.
Single hole, single control mixer with swivelling spout H. 305mm L. 220mm.
Tall mixer with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing and pre-set maximum temperature limiter.

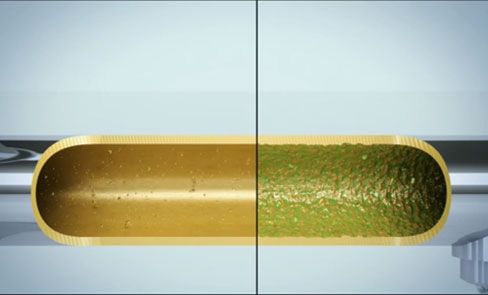

Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixings reinforced via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2025 UK public price excluding VAT: £332.46

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow reduces if CW supply fails

Confort - Ergonomie - Déclenchement souple

EP: reduces pressure variations

Sécurité anti-brûlure

Thermal shocks are possible without removing lever

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

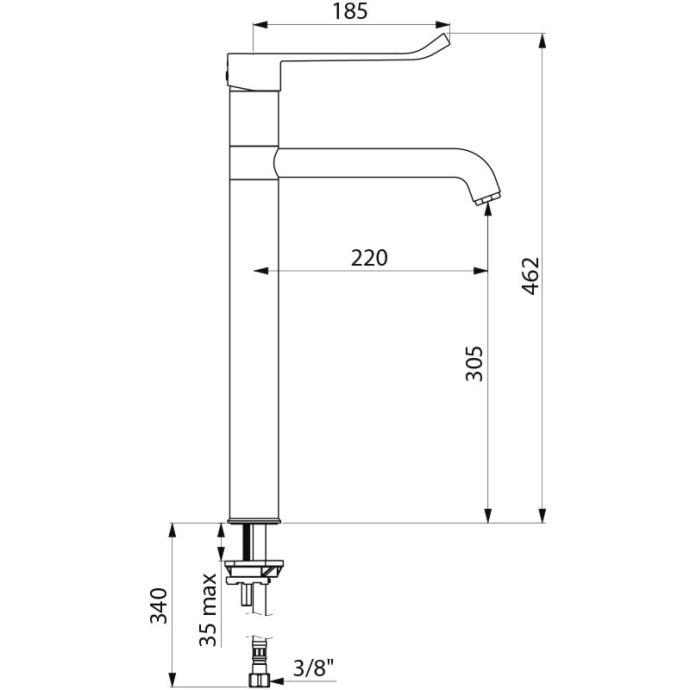

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing sink mixer

Ref. 2564T4EP
Connector F3/8"
Technology SECURITHERM EP
Height 462mm
Drop height 305mm
Spout length 220mm
Flow rate 9 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing sink mixer

Ref. 2564T4EP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

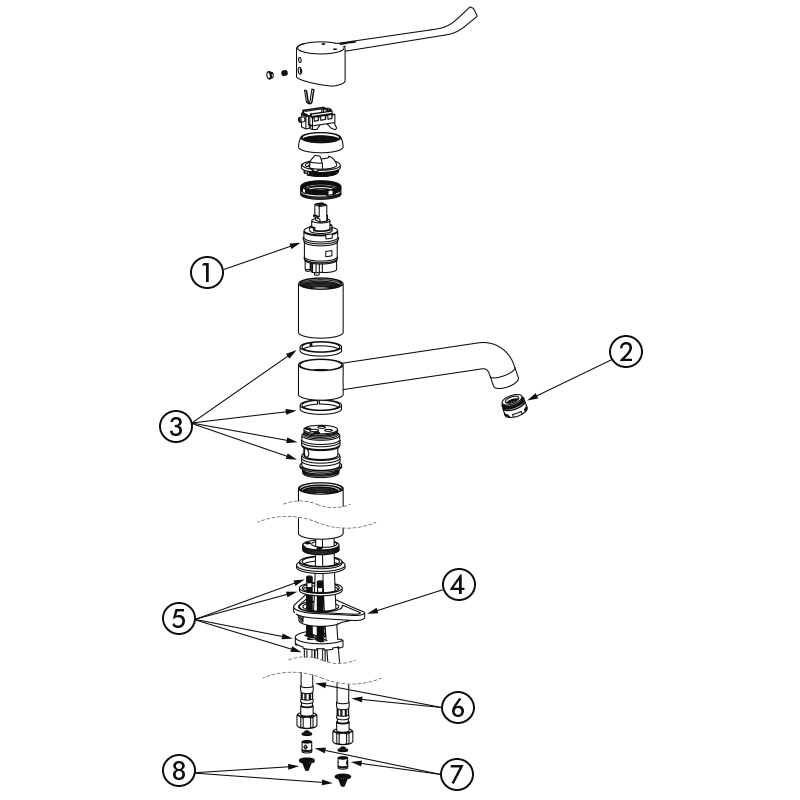

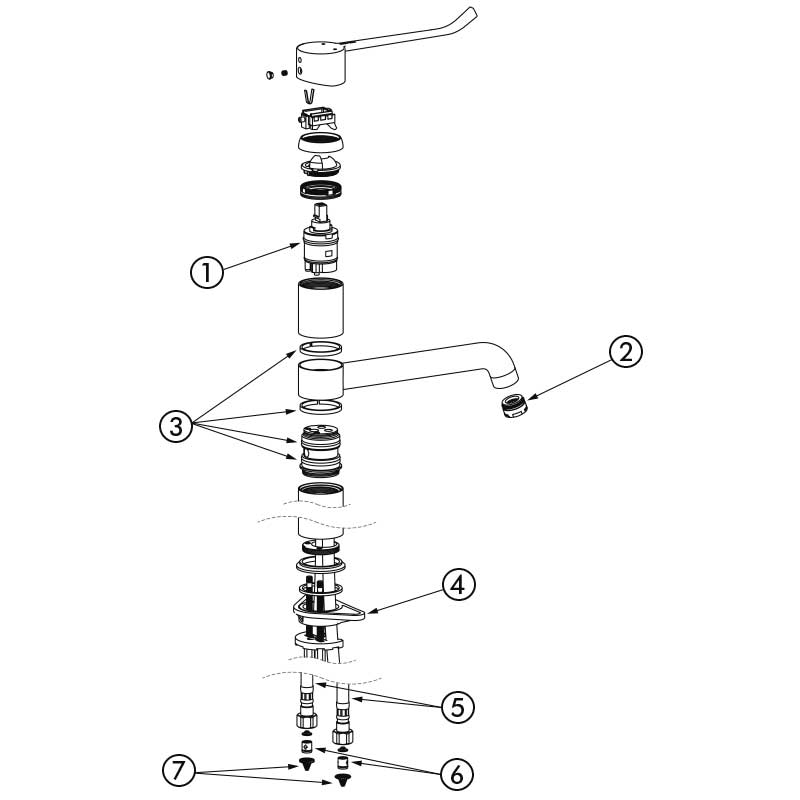

SPARE PARTS

SECURITHERM EP pressure-balancing sink mixer

Ref. 2564T4EP
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 921024.2P
Star-shaped flow straightener
3. 753256
Replacement O-ring joints
4. 256P
Fixing plate
5. 2510SES
Locking kit
6. FLEXPEX4
F3/8" PEX flexible hoses
7. 900010
Non-return valve
8. 60438.10P
Conical filter

VARIANTS

2565T3 Standard cartridge - fixed spout H. 305mm L. 140mm £261.72 excl. VAT
2564T3EP EP cartridge - swivelling spout H. 305mm L. 140mm £322.05 excl. VAT
2564T3 Standard cartridge - swivelling spout H. 305mm L. 140mm £280.39 excl. VAT
2564T4 Standard cartridge - swivelling spout H. 305mm L. 220mm £290.88 excl. VAT
2565T3EP EP cartridge - fixed spout H. 305mm L. 140mm £303.36 excl. VAT
