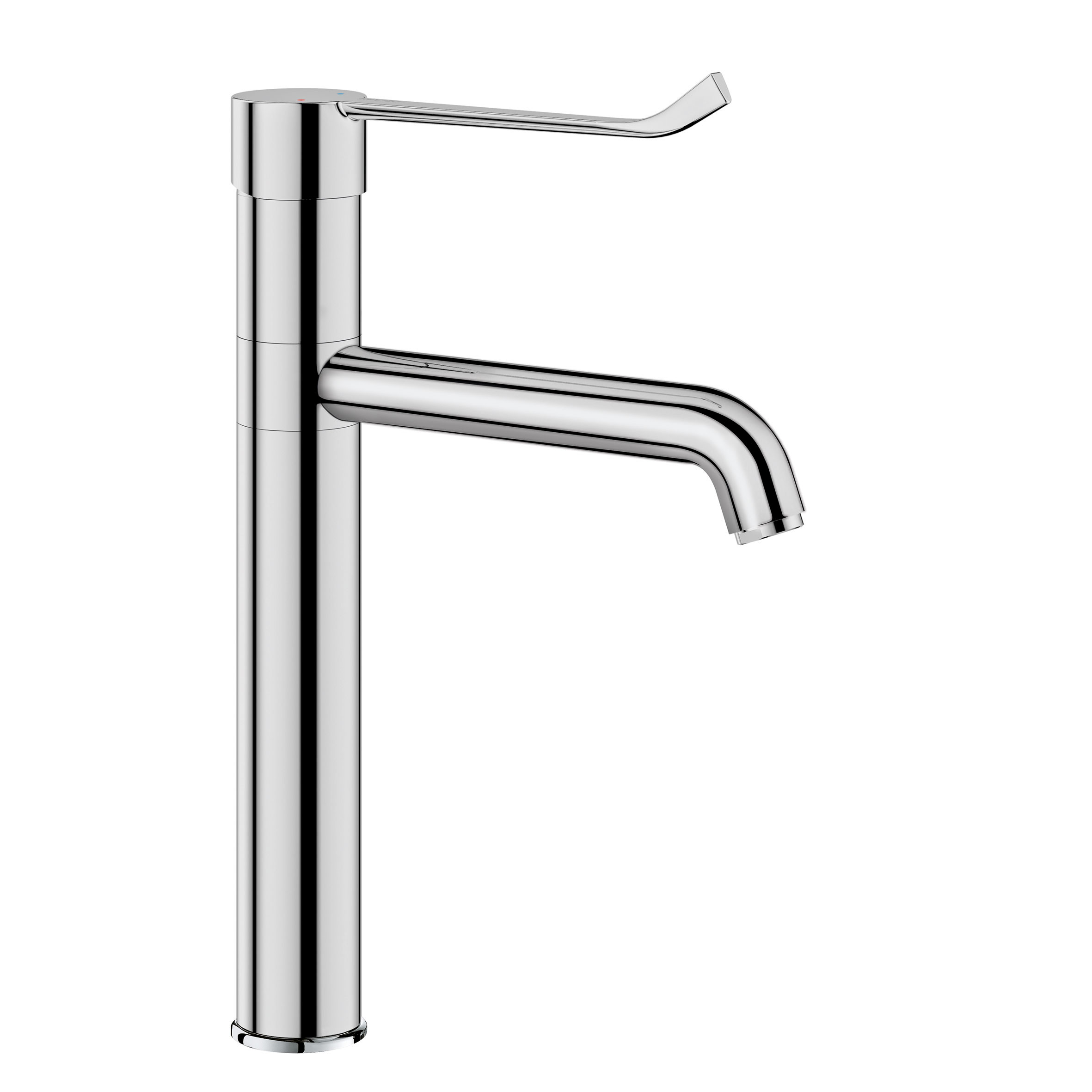

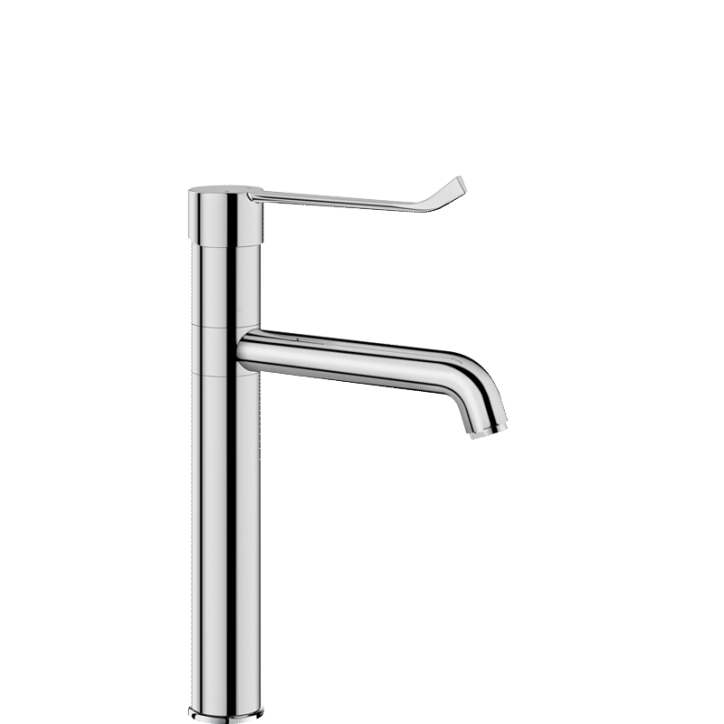

SECURITHERM EP pressure-balancing basin mixer

Ref. 2564T5EP
Single hole, single control tall mixer with EP cartridge
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2564T5EP
Deck-mounted SECURITHERM basin mixer with pressure-balancing.
Single hole, single control mixer with swivelling spout H. 205mm L. 170mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate regulated at 5 lpm.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixings reinforced via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £295.41

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow reduces if CW supply fails

Confort - Ergonomie - Déclenchement souple

EP: reduces pressure variations

Sécurité anti-brûlure

Thermal shocks are possible without removing lever

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2564T5EP
Connector F3/8"
Technology SECURITHERM EP mixer

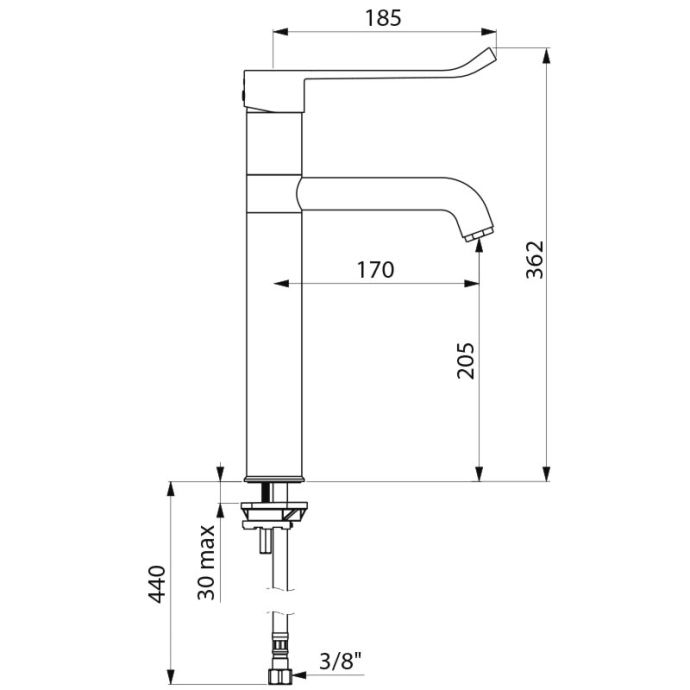

Height 362mm
Drop height 205mm
Spout length 170mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2564T5EP

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

2565T5EP EP cartridge - fixed spout H. 205mm L. 170mm £269.56 excl. VAT
2564T1EP EP cartridge - swivelling spout H. 165mm L. 140mm £285.73 excl. VAT
2565T1EP EP cartridge - fixed spout H. 165mm L. 140mm £260.13 excl. VAT
2564T2EP EP cartridge - swivelling spout H. 165mm L. 220mm £298.52 excl. VAT
2564T5 Standard cartridge - swivelling spout H. 205mm L. 170mm £255.00 excl. VAT
2565T5 Standard cartridge - fixed spout H. 205mm L. 170mm £229.13 excl. VAT
2564T1 Standard cartridge - swivelling spout H. 165mm L. 140mm £245.57 excl. VAT
2565T1 Standard cartridge - fixed spout H. 165mm L. 140mm £219.02 excl. VAT
2564T2 Standard cartridge - swivelling spout H. 165mm L. 220mm £258.19 excl. VAT
Discover the technology of the 2564T5EP via the video of the 2565T5EP mixer
Discover the technology of the 2564T5EP via the video of the 2565T5EP mixer
Mixer with pressure-balancing: anti-scalding safety and stable temperature
Mixer with pressure-balancing: anti-scalding safety and stable temperature
