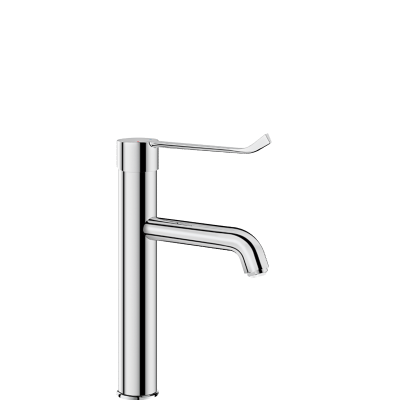

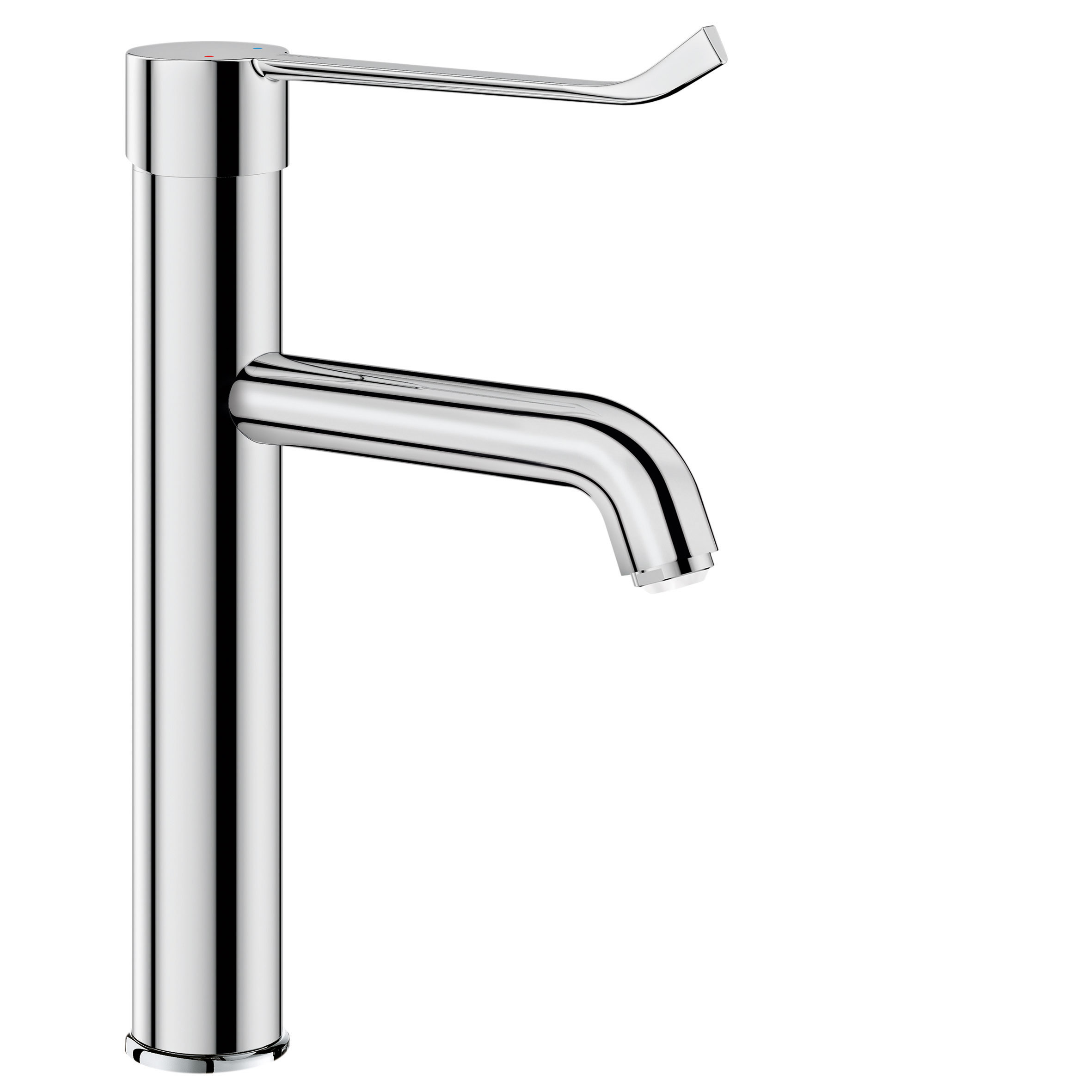

SECURITHERM EP pressure-balancing basin mixer

Ref. 2565T1EP
Tall, single hole, single control mixer with EP cartridge
See variants See variants
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2565T1EP
Deck-mounted basin mixer with SECURITHERM pressure-balancing.
Single hole, single control mixer with fixed spout H. 165mm L. 140mm.
Tall mixer with BIOSAFE hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Total anti-scalding safety: HW flow rate is reduced if CW water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic pressure-balancing cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are easy to undertake a thermal shock without removing the lever or shutting off the cold water supply.
Flow rate regulated at 5 lpm.
Body and base made from chrome-plated brass.
Hygiene control lever L. 185mm requires no manual contact.
Supplied with F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
30-year warranty.

2025 UK public price excluding VAT: £267.94

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow rate reduced if CW fails

Confort - Ergonomie - Déclenchement souple

EP: reduces pressure variations

Sécurité anti-brûlure

Thermal shock without removing the control lever

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2565T1EP
Connector F3/8"
Technology SECURITHERM EP mixer

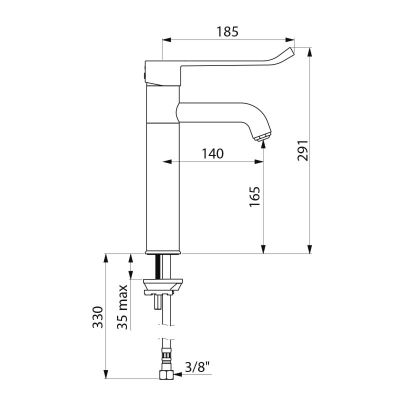

Height 291mm
Drop height 165mm
Spout length 140mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo DIN-DVGW Logo WRAS SINTEF Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2565T1EP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

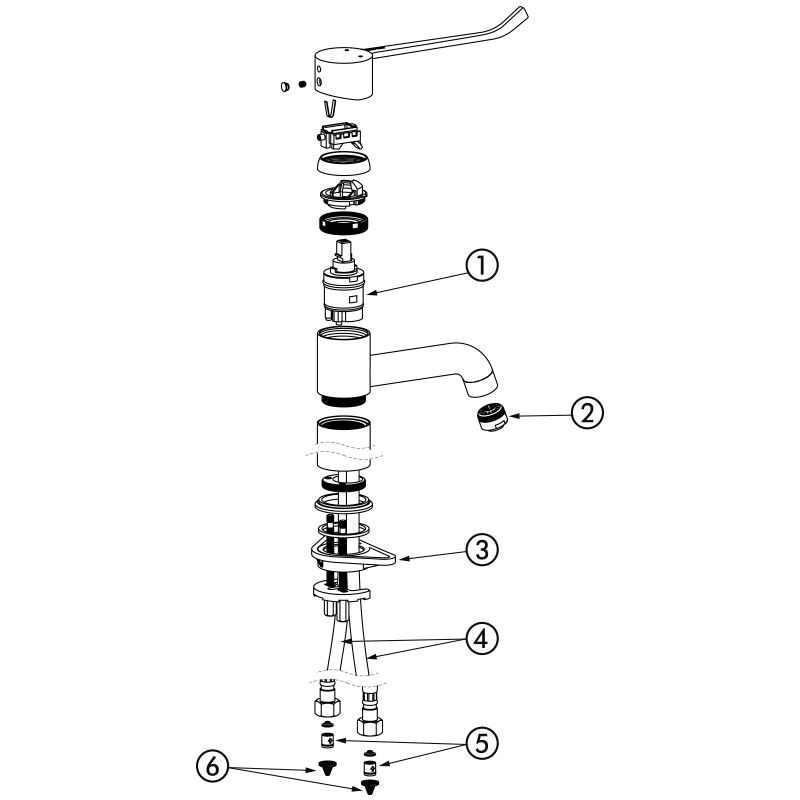

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2565T1EP
After April 2021
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 922640
BIOSAFE hygienic outlet M24/100
3. 256P
Fixing plate
4. 2510SES
Locking kit
5. FLEXPEX3
F3/8" PEX flexible hoses
6. 900010
Non-return valve
7. 60438.10P
Conical filter

VARIANTS

2564T5EP EP cartridge - swivelling spout H. 205mm L. 170mm £304.28 excl. VAT
2565T5EP EP cartridge - fixed spout H. 205mm L. 170mm £277.66 excl. VAT
2564T1EP EP cartridge - swivelling spout H. 165mm L. 140mm £294.31 excl. VAT
2564T2EP EP cartridge - swivelling spout H. 165mm L. 220mm £307.47 excl. VAT
2564T5 Standard cartridge - swivelling spout H. 205mm L. 170mm £262.66 excl. VAT
2565T5 Standard cartridge - fixed spout H. 205mm L. 170mm £236.02 excl. VAT
2564T1 Standard cartridge - swivelling spout H. 165mm L. 140mm £252.94 excl. VAT
2565T1 Standard cartridge - fixed spout H. 165mm L. 140mm £225.59 excl. VAT
2564T2 Standard cartridge - swivelling spout H. 165mm L. 220mm £265.93 excl. VAT
Watch the video of the 2565T5EP mixer to find out about technology of mixer 2565T1EP
Watch the video of the 2565T5EP mixer to find out about technology of mixer 2565T1EP
Pressure-balancing: anti-scalding safety and stable temperature
Pressure-balancing: anti-scalding safety and stable temperature
