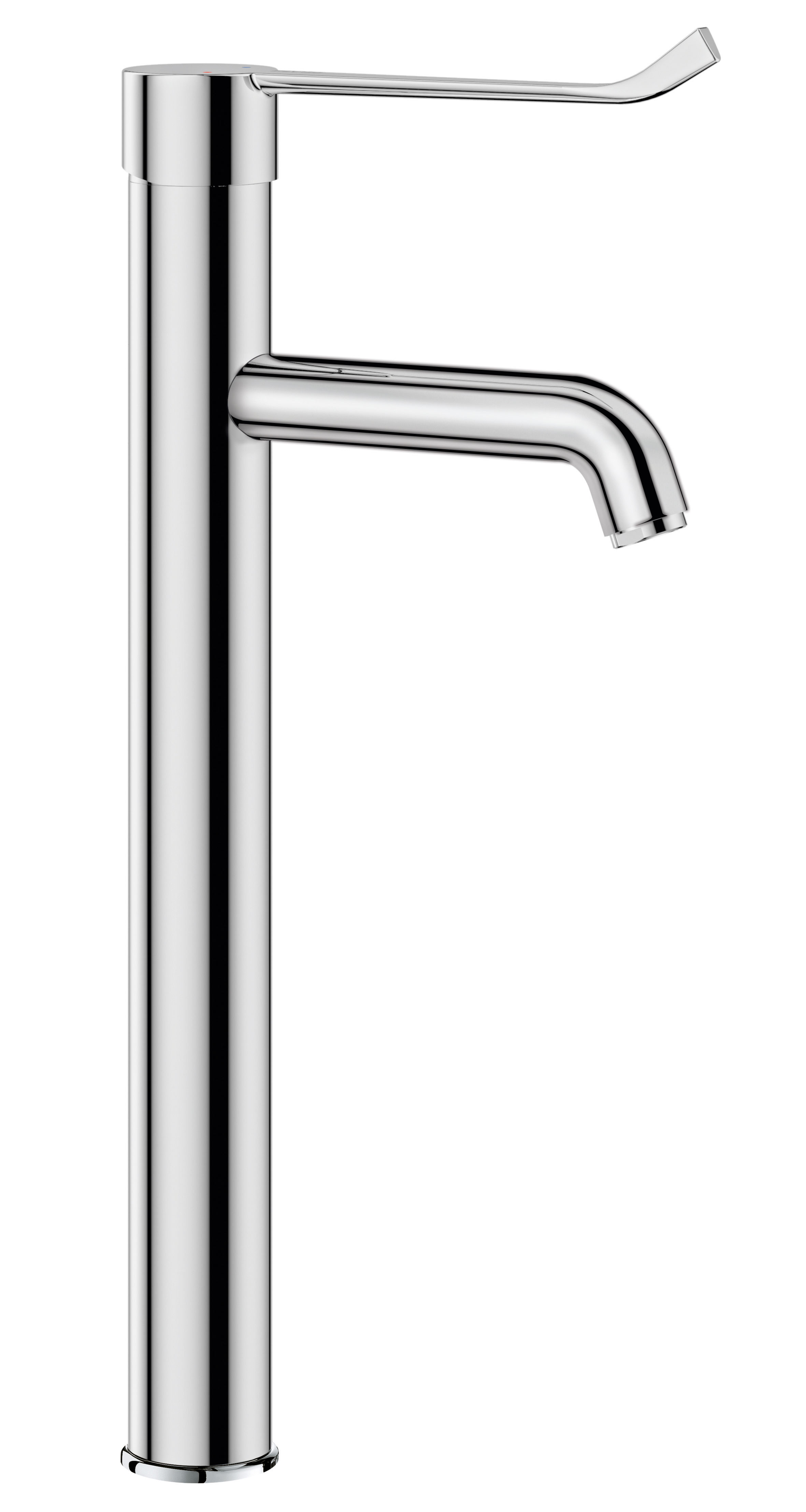

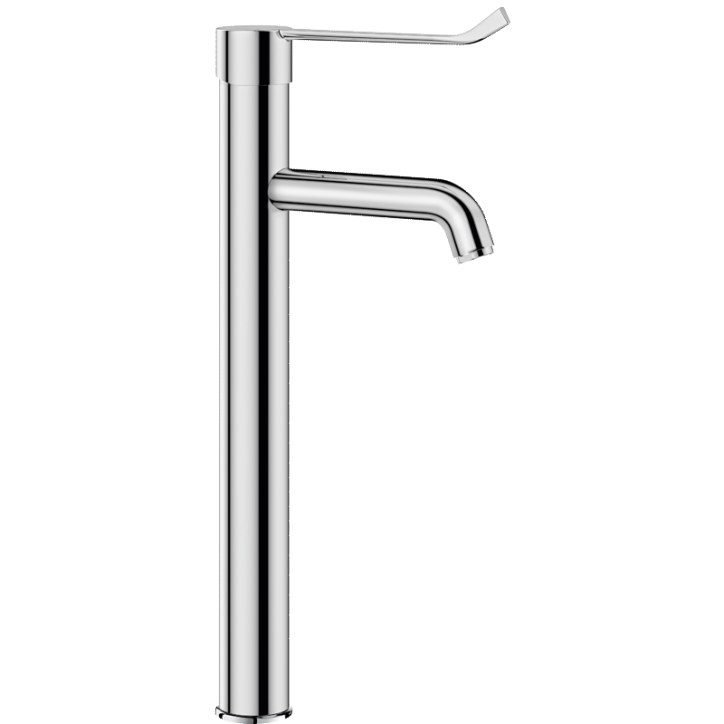

SECURITHERM EP pressure-balancing sink mixer

Ref. 2565T3EP
Tall, single hole, single control mixer with EP cartridge
SECURITHERM EP pressure-balancing sink mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing sink mixer

Ref. 2565T3EP
Deck-mounted sink mixer with SECURITHERM pressure-balancing.
Single hole, single control mixer with fixed spout H. 305mm L. 140mm.
Tall mixer with hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic pressure-balancing cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Body and base made from chrome-plated brass.
Hygiene control lever L. 185mm requires no manual contact.
F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixings via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £294.53

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow rate reduced if CW fails

Confort - Ergonomie - Déclenchement souple

EP: reduces pressure variations

Corps à intérieur lisse

Thermal shock without removing the control lever

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing sink mixer

Ref. 2565T3EP
Connector F3/8"
Technology SECURITHERM EP mixer

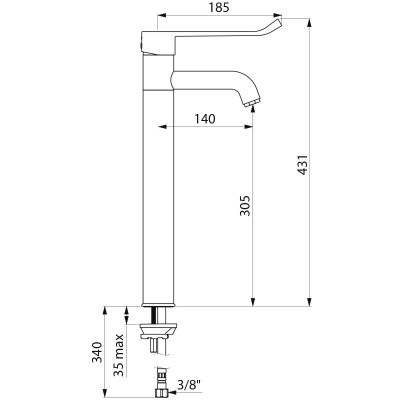

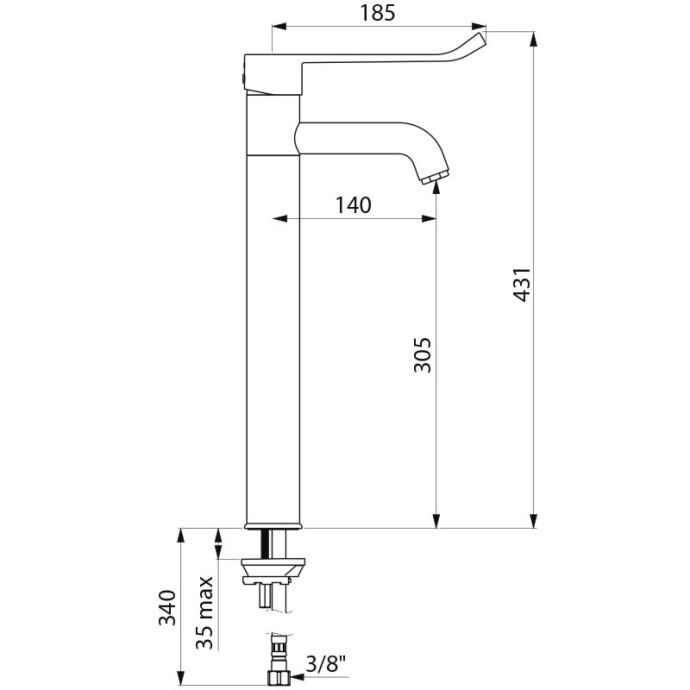

Height 431mm
Drop height 305mm
Spout length 140mm
Flow rate 9 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur d'évier à équilibrage de pression SECURITHERM EP

Ref. 2565T3EP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

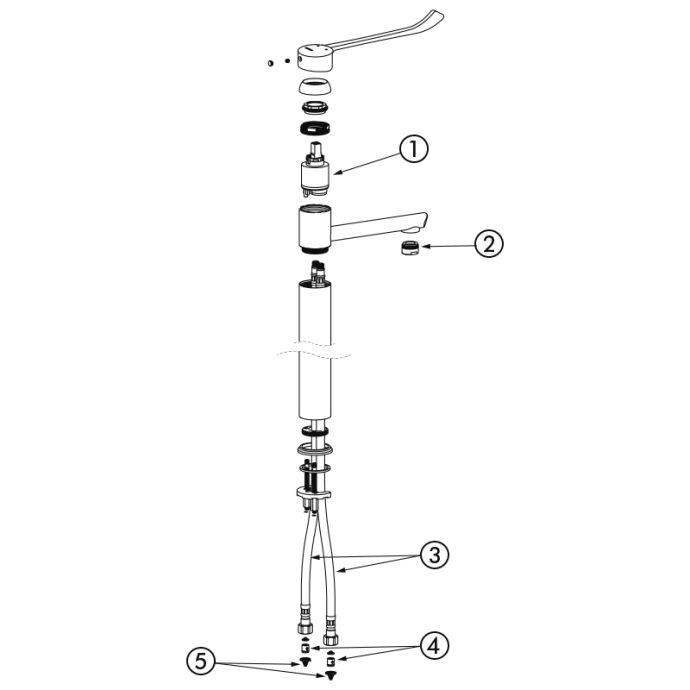

SPARE PARTS

SECURITHERM EP pressure-balancing sink mixer

Ref. 2565T3EP
Before April 2021
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 921024.2P
Star-shaped flow straightener
3. 2510SES
Locking kit
4. FLEXPEX4
F3/8" PEX flexible hoses
5. 900010
Non-return valve
6. 60438.10P
Conical filter

VARIANTS

2565T3 Standard cartridge - fixed spout H. 305mm L. 140mm £254.11 excl. VAT
2564T3EP EP cartridge - swivelling spout H. 305mm L. 140mm £312.66 excl. VAT
2564T4EP EP cartridge - swivelling spout H. 305mm L. 220mm £322.78 excl. VAT
2564T3 Standard cartridge - swivelling spout H. 305mm L. 140mm £272.23 excl. VAT
2564T4 Standard cartridge - swivelling spout H. 305mm L. 220mm £282.41 excl. VAT
