BIOCLIP mechanical basin mixer
Ref. 2820L
Single hole removable mechanical mixer H.95mm L.120mm, Hygiene lever
Single hole removable mechanical mixer H.95mm L.120mm, Hygiene lever
DESCRIPTION
BIOCLIP mechanical basin mixer
Ref. 2820LDeck-mounted mechanical basin mixer.

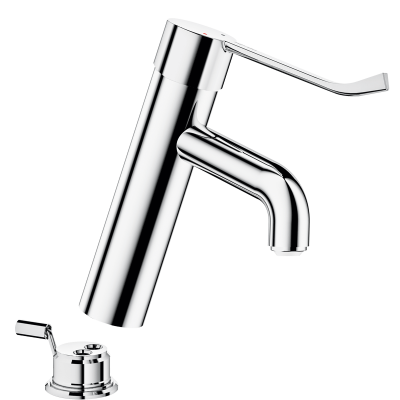

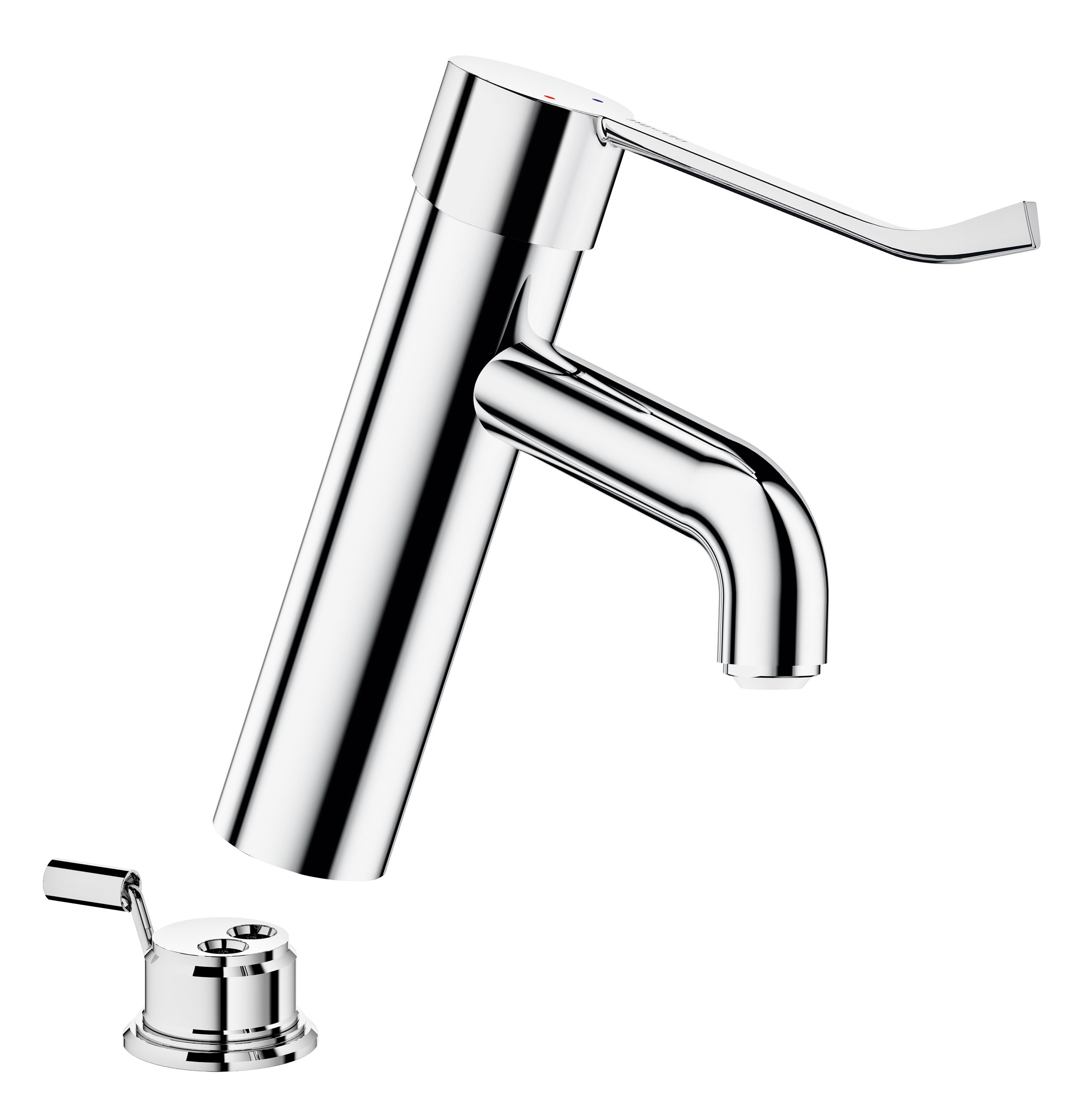

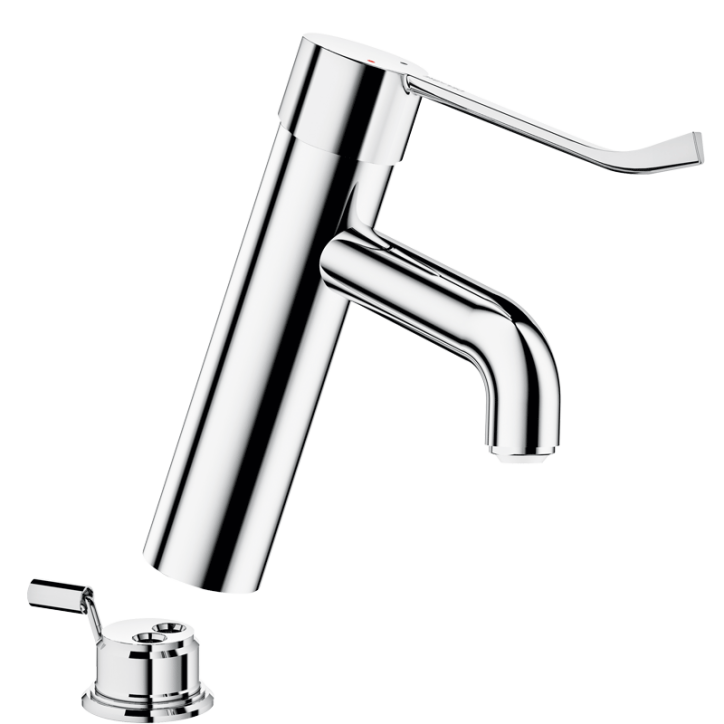

BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE nozzle.
Spout suitable for fiitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever 150mm.
Ergonomic pop-up waste 1 1/4" made from brass.
Supplied with PEX flexibles F3/8" with stopcocks in chrome-plated brass.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE nozzle.
Spout suitable for fiitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever 150mm.
Ergonomic pop-up waste 1 1/4" made from brass.
Supplied with PEX flexibles F3/8" with stopcocks in chrome-plated brass.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
2024 UK public price excluding VAT: £378.31
ADVANTAGES
Hygiene: remove for internal cleaning
Hygiene: smooth interior reduces bacteria
Pre-set maximum temperature limiter
Hygiene lever: no manual contact

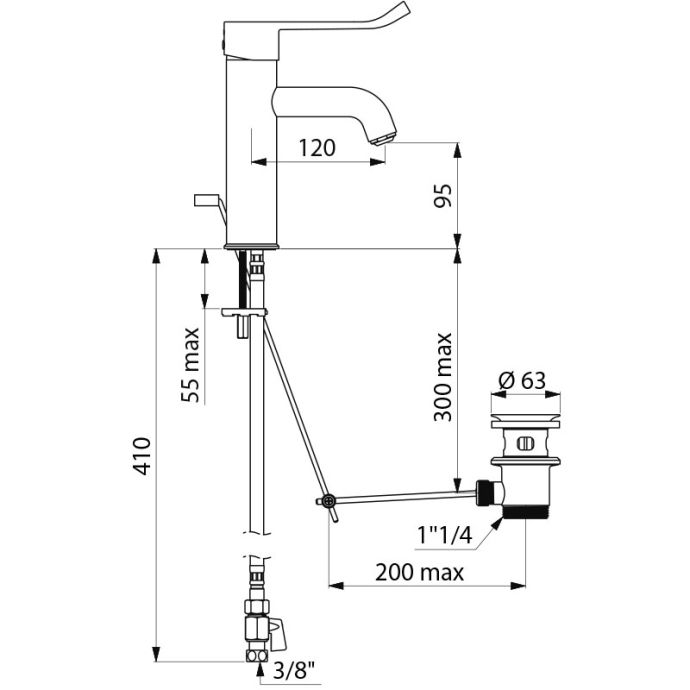

TECHNICAL CHARACTERISTICS
BIOCLIP mechanical basin mixer
Ref. 2820L| Connector | F3/8" |
| Technology | BIOCLIP removable mixer |
| Drop height | 95mm |
| Spout length | 120mm |
| Flow rate | 5 lpm at 3 bar |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
BIOCLIP mechanical basin mixer
Ref. 2820L

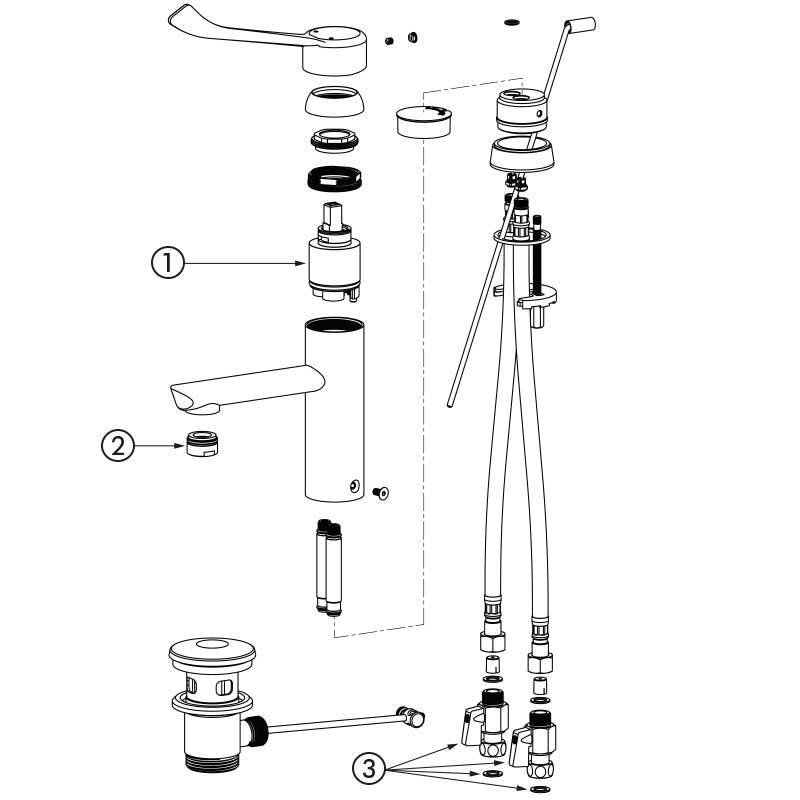

Before 05/2023
| 1. | N009AG75 |
|
Ø40mm ceramic cartridge |
| 2. | 921024.2P |
|
Star-shaped flow straightener |
| 3. | 2510SES |
|
Locking kit |
| 4. | 825212 |
|
In-line STOP union |

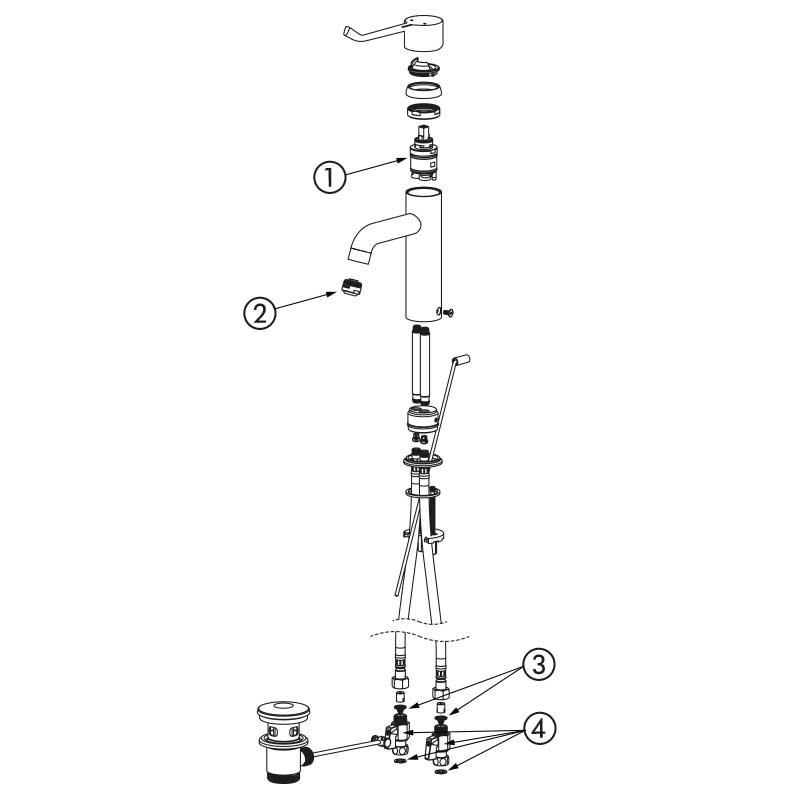

From 05/2023
| 1. | N222 |
|
Ø35mm ceramic cartridge |
| 2. | 922640 |
|
BIOSAFE hygienic outlet M24/100 |
| 3. | 2510SES |
|
Locking kit |
| 4. | 60438.10P |
|
Conical filter |
| 5. | 825212 |
|
In-line STOP union |
VARIANTS
| 28216L | Std cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails | £397.13 excl. VAT | |
|---|---|---|---|
| 28216LEP | EP cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails | £436.93 excl. VAT | |
| 2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | £399.32 excl. VAT | |
| 2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | £385.34 excl. VAT | |
| 2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | £420.35 excl. VAT | |
| 2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | £406.33 excl. VAT | |
| 2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | £357.31 excl. VAT | |
| 2821T | Standard cartridge - solid lever - no waste - stopcocks - flexibles | £343.29 excl. VAT | |
| 2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | £364.32 excl. VAT |
Infection control: removable mixer, smooth interior
Associated products
Copper tails
M10 X 1, L. 365mm
Ref. 811610.2P
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510581
HYGIÉNA waste
Pre-scored waste with concave grid
Ref. 611
VARIANTS
| 28216L | Std cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails | £397.13 excl. VAT | |
|---|---|---|---|
| 28216LEP | EP cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails | £436.93 excl. VAT | |
| 2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | £399.32 excl. VAT | |
| 2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | £385.34 excl. VAT | |
| 2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | £420.35 excl. VAT | |
| 2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | £406.33 excl. VAT | |
| 2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | £357.31 excl. VAT | |
| 2821T | Standard cartridge - solid lever - no waste - stopcocks - flexibles | £343.29 excl. VAT | |
| 2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | £364.32 excl. VAT |
Infection control: removable mixer, smooth interior
