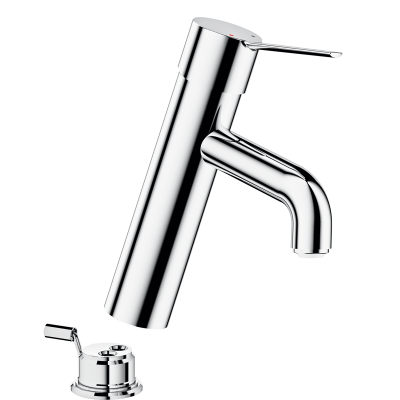

SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 2820TEP
Single hole removable mechanical mixer H.95mm L.120mm, solid lever
Single hole removable mechanical mixer H.95mm L.120mm, solid lever
DESCRIPTION
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 2820TEPDeck-mounted mechanical basin mixer with pressure-balancing.

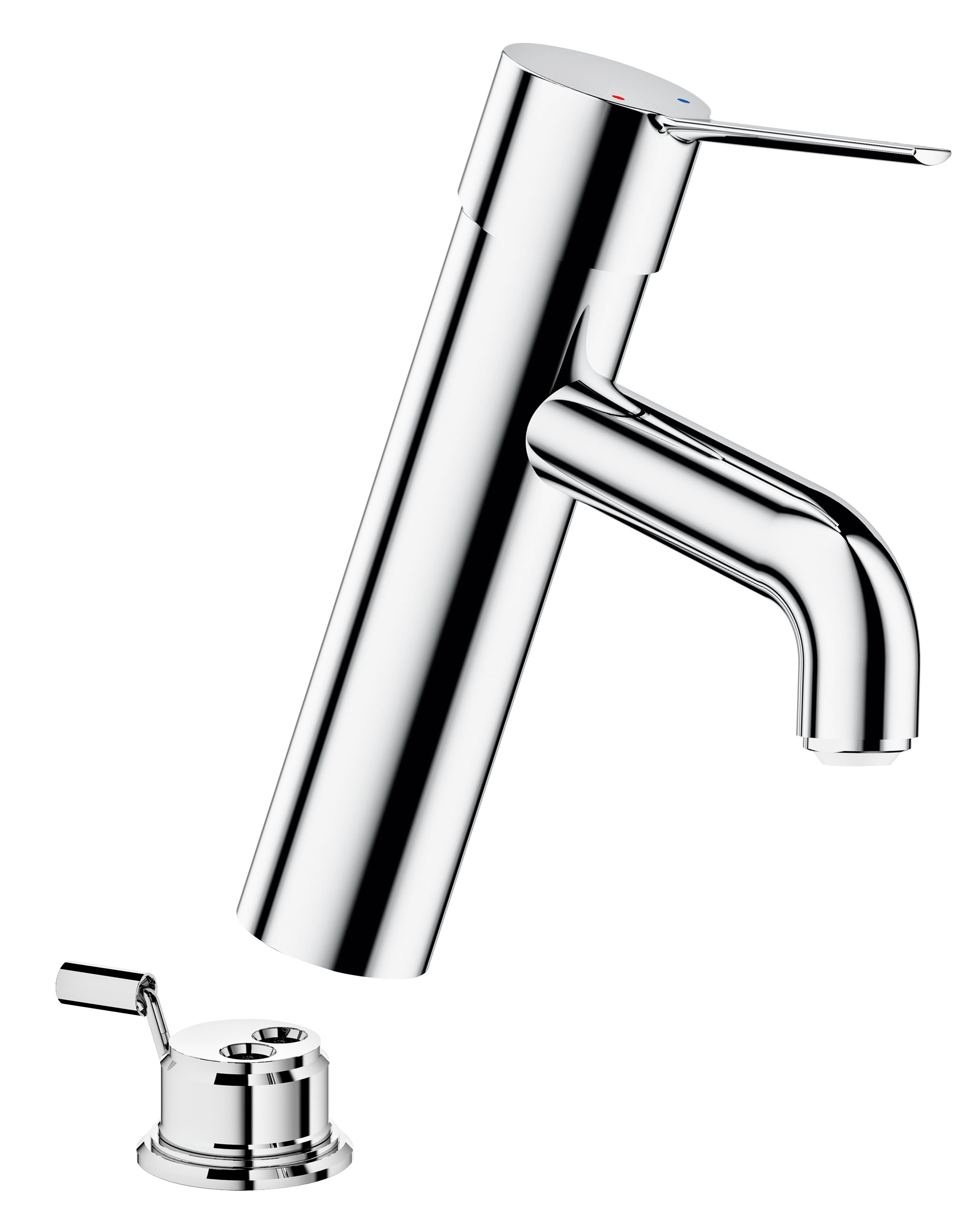

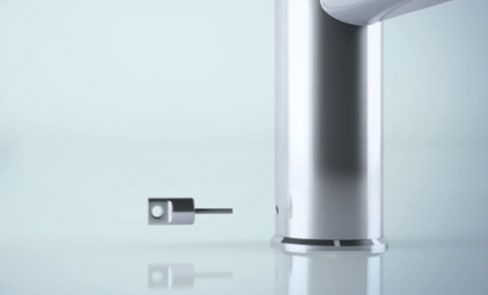

BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE nozzle.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Ergonomic, brass pop-up waste 1 1/4".
F3/8" PEX flexibles with stopcocks.
Filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE nozzle.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Ergonomic, brass pop-up waste 1 1/4".
F3/8" PEX flexibles with stopcocks.
Filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
2024 UK public price excluding VAT: £406.33
ADVANTAGES
HW flow rate reduced if CW fails
Hygiene: remove for internal descaling
Hygiene: smooth interior reduces bacteria
EP: reduces temperature variations

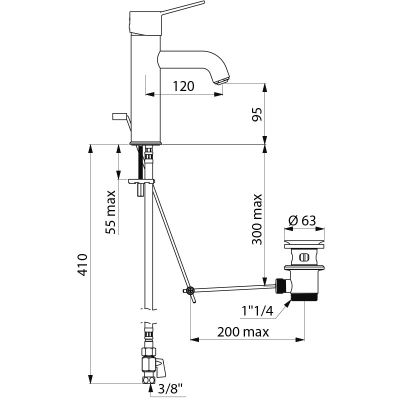

TECHNICAL CHARACTERISTICS
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 2820TEPConnector | F3/8" |
Technology | SECURITHERM EP BIOCLIP |
Drop height | 95mm |
Spout length | 120mm |
Flow rate | 5 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

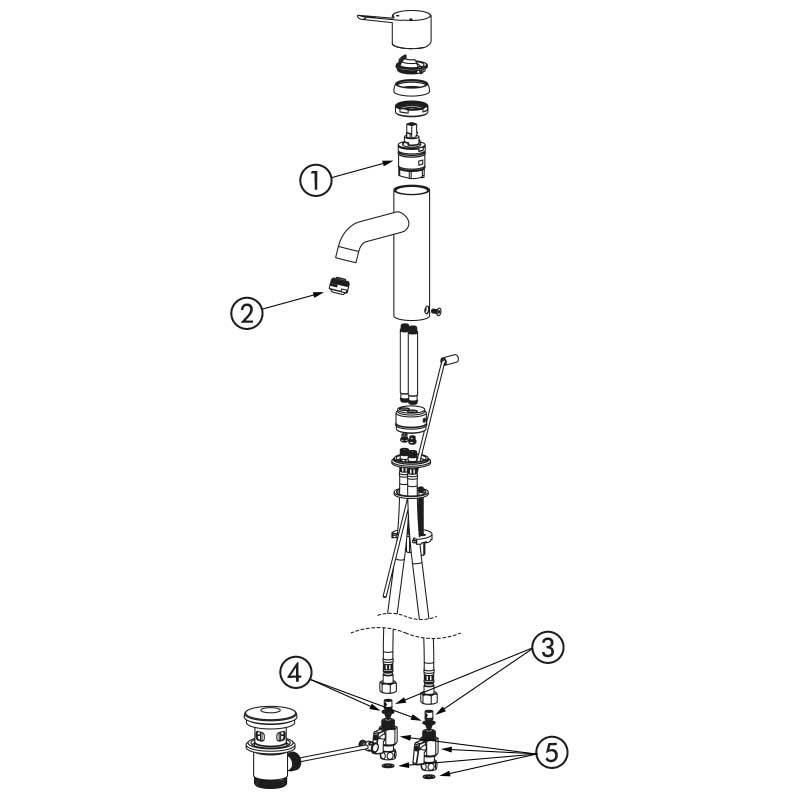

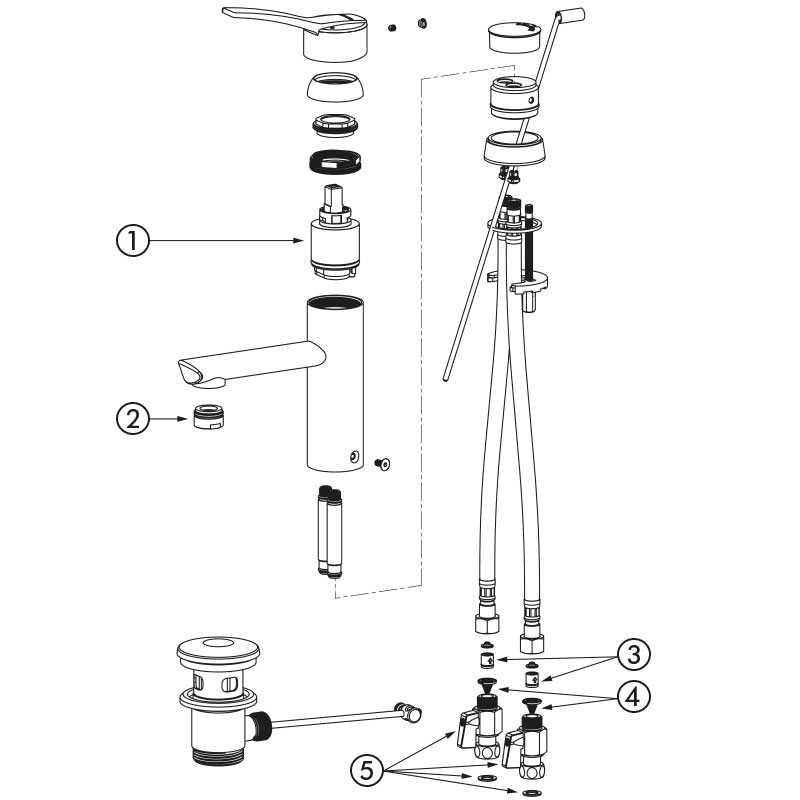

SPARE PARTS
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 2820TEP
Before 04/2023
1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
2. | 2510SES |
|
Locking kit |
3. | 921024.2P |
|
Star-shaped flow straightener |
4. | 900010 |
|
Non-return valve |
5. | 60438.10P |
|
Conical filter |
6. | 825212 |
|
In-line STOP union |
From 04/2023
1. | N262 |
|
Ø35mm ceramic pressure balancing cartridge |
2. | 922640 |
|
BIOSAFE hygienic outlet M24/100 |
3. | 2510SES |
|
Locking kit |
4. | 900010 |
|
Non-return valve |
5. | 60438.10P |
|
Conical filter |
6. | 825212 |
|
In-line STOP union |
VARIANTS
28216L | Std cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails | £397.13 excl. VAT | |
---|---|---|---|
28216LEP | EP cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails | £436.93 excl. VAT | |
2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | £399.32 excl. VAT | |
2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | £385.34 excl. VAT | |
2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | £420.35 excl. VAT | |
2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | £357.31 excl. VAT | |
2821T | Standard cartridge - solid lever - no waste - stopcocks - flexibles | £343.29 excl. VAT | |
2820L | Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | £378.31 excl. VAT | |
2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | £364.32 excl. VAT |
