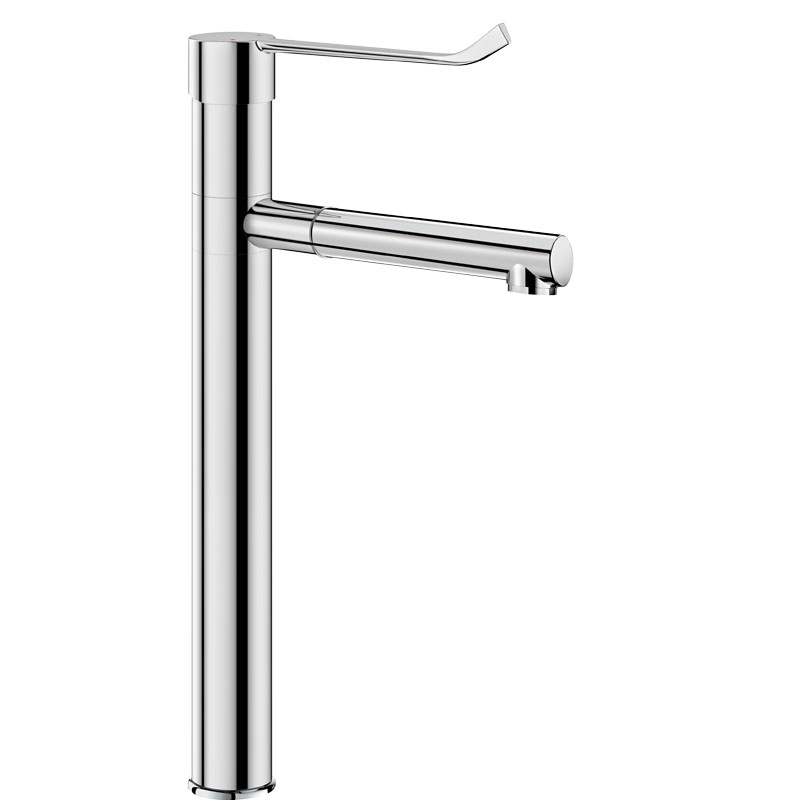

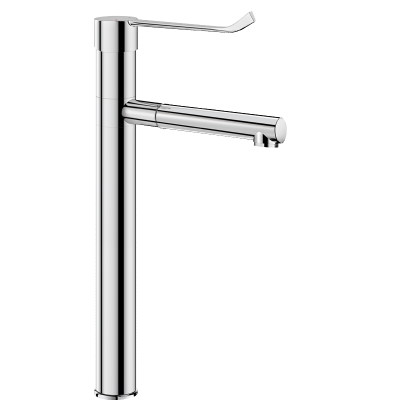

Mechanical sink or trough mixer

Ref. 2870T3
Single hole, single control tall mixer with ceramic cartridge
Mechanical sink or trough mixer

Presentation

DESCRIPTION

Mechanical sink or trough mixer

Ref. 2870T3
Deck-mounted mechanical sink mixer.
Single hole, single control mixer with high, swivelling spout H. 320mm.
Mixer supplied with 2 removable stainless steel spouts.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduced bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate limited to 9 lpm at 3 bar.
Touch-free control via the Hygiene lever L. 185mm.
Body and base in chrome plated brass.
PEX flexibles F3/8".
Fixing reinforced by 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £358.37

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Hygiène - Anti-bactérien - BIOSAFE

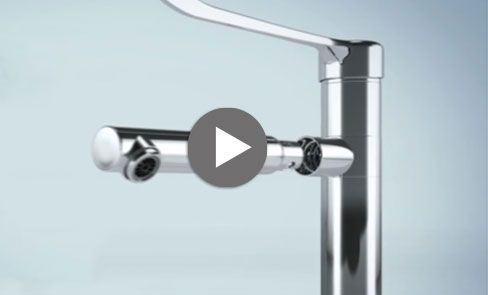

Hygiene: removable spout for internal cleaning

Sécurité anti-brûlure

Flow rate limited to 9 lpm

Confort - Ergonomie - Déclenchement souple

Hygiene control lever requires no manual contact

Characteristics

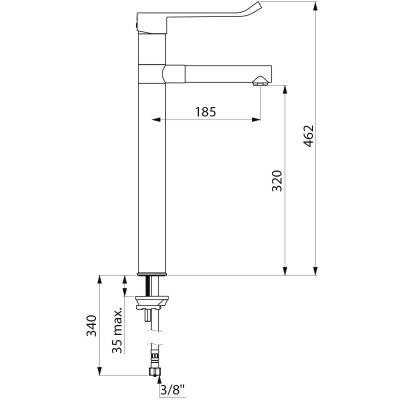

TECHNICAL CHARACTERISTICS

Mechanical sink or trough mixer

Ref. 2870T3
Connector F3/8"
Technology BIOCLIP mixer
Drop height 320mm
Spout length 185mm
Flow rate 9 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur mécanique d'évier ou auge

Ref. 2870T3

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

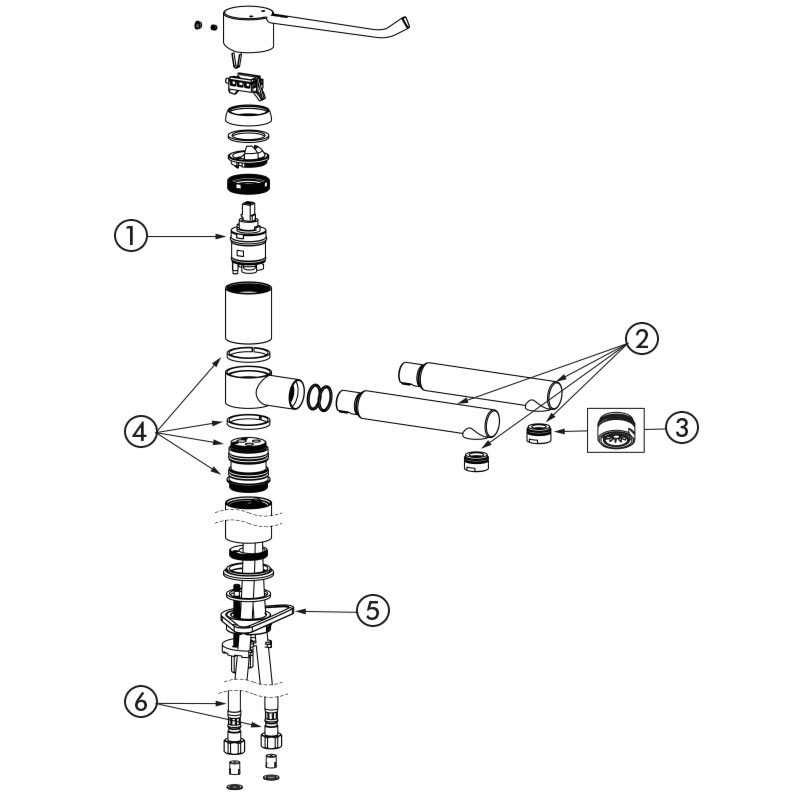

SPARE PARTS

Mechanical sink or trough mixer

Ref. 2870T3
After 04/2022
1. NS262
Ø35mm ceramic cartridge
2. 20002
Stainless steel BIOCLIP spout
3. 921024.2P
Star-shaped flow straightener
4. 753256
Replacement O-ring joints
5. 2510SES
Locking kit
6. 256P
Fixing plate
7. FLEXPEX4
F3/8" PEX flexible hoses
Before 04/2022
1. N148AA75
Ø40mm ceramic cartridge
2. 20002
Stainless steel BIOCLIP spout
3. 921024.2P
Star-shaped flow straightener
4. 753256
Replacement O-ring joints
5. 2510SES
Locking kit
6. 256P
Fixing plate
7. FLEXPEX4
F3/8" PEX flexible hoses

VARIANTS

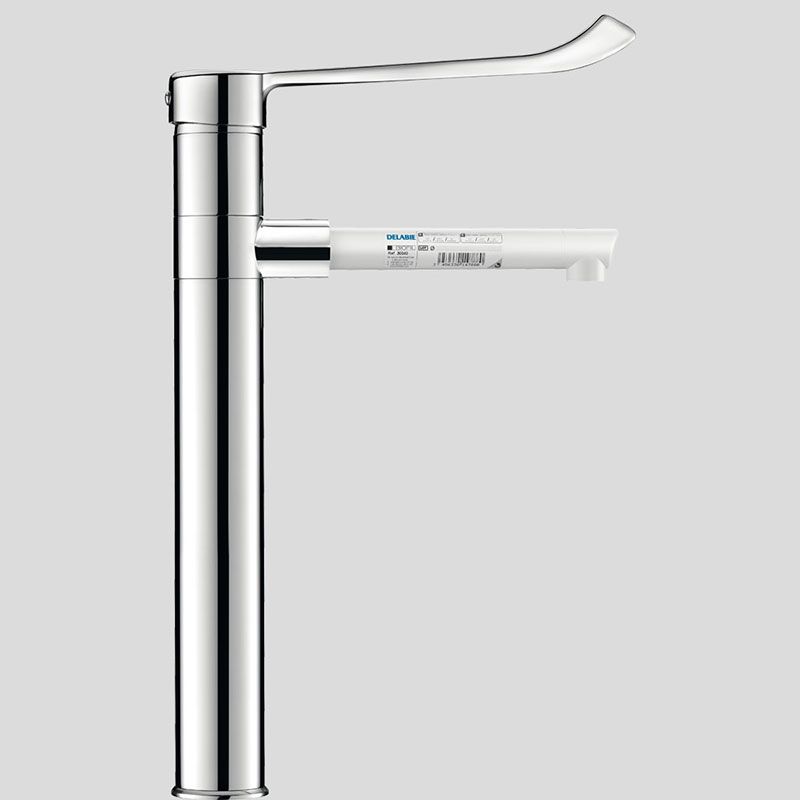

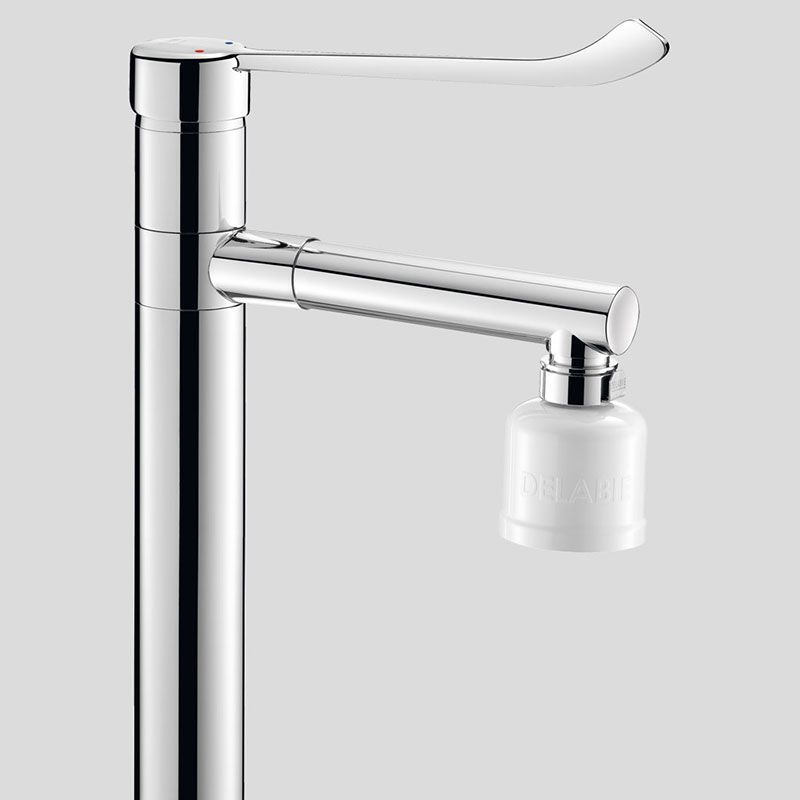

2871T3EP EP cartridge - removable disposable spout £361.04 excl. VAT
2870T3EP EP cartridge - removable stainless steel spout £398.21 excl. VAT
2871T3 Standard cartridge - removable disposable spout £323.87 excl. VAT
Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior

VARIANTS

2871T3EP EP cartridge - removable disposable spout £361.04 excl. VAT
2870T3EP EP cartridge - removable stainless steel spout £398.21 excl. VAT
2871T3 Standard cartridge - removable disposable spout £323.87 excl. VAT
Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior
