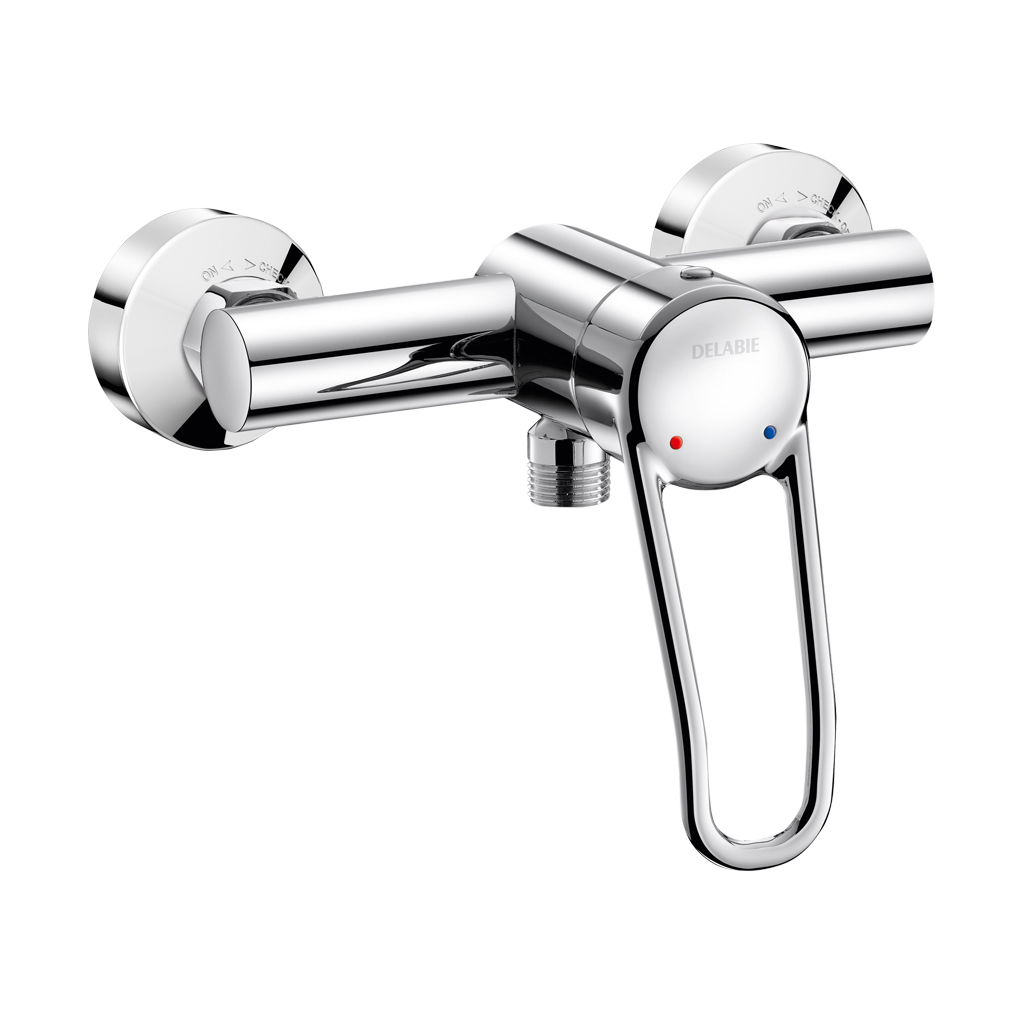

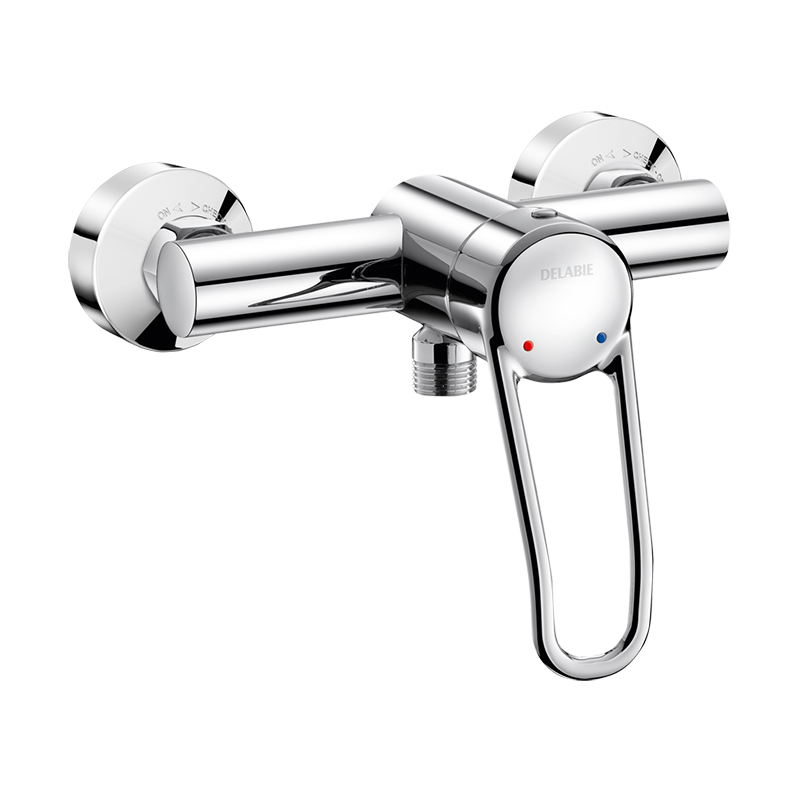

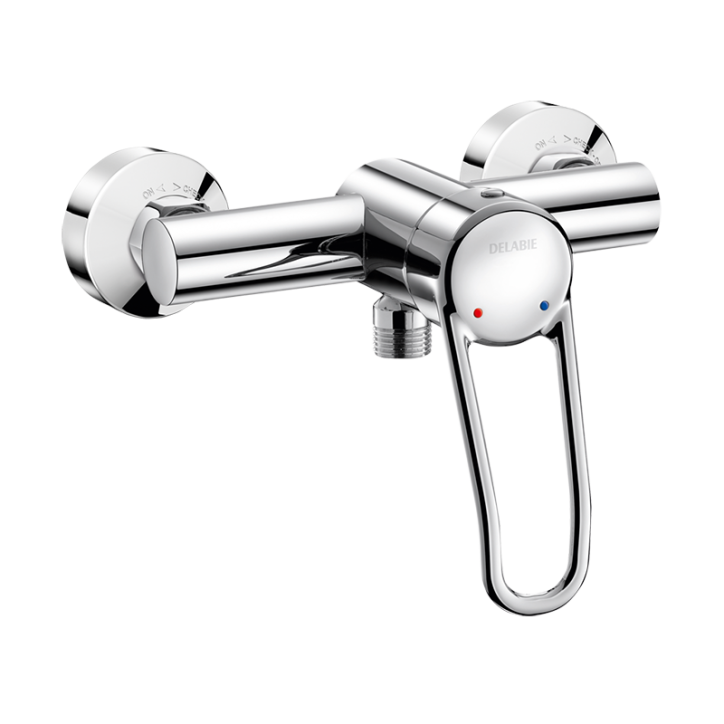

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
Wall-mounted mixer, Securitouch single control, sculptured lever
SECURITHERM EP pressure-balancing shower mixer +

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
Wall-mounted single hole mechanical shower mixer.
Wall-mounted single hole mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Anti-scalding safety: HW flow is reduced if CW supply fails (and vice versa).
Constant temperature regardless of variations in pressure and flow rate in the system.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
Filters and non-return valves.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.

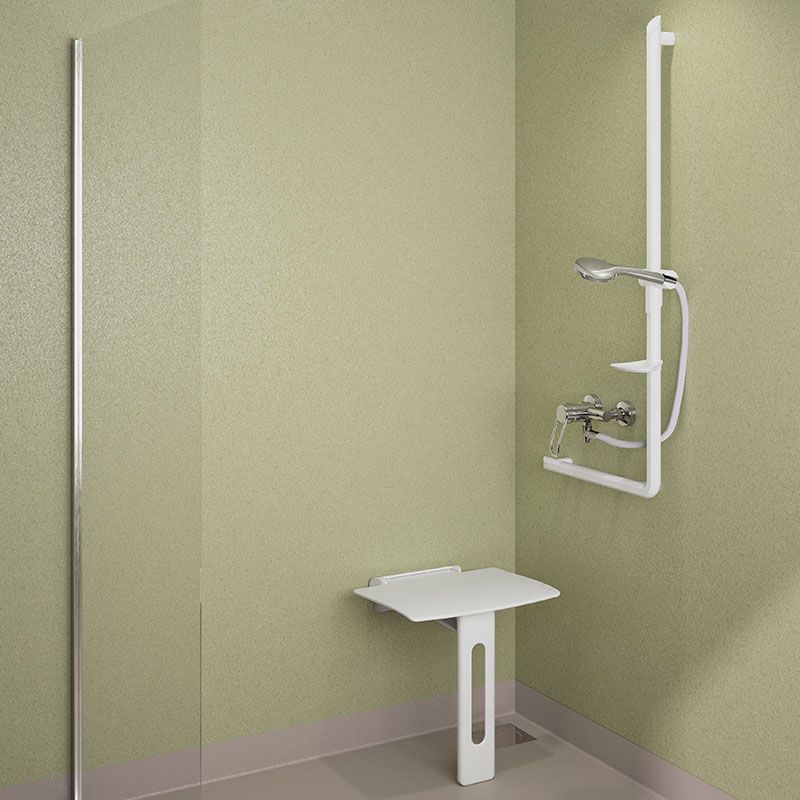

Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £331.29

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Confort - Ergonomie - Déclenchement souple

Pressure-balancing: reduces temperature variations

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: low water volume

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
Connector M1/2"
Technology SECURITHERM EP mechanical mixer
Height 140mm
Depth 188mm
Width 182mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo WRAS Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de douche à équilibrage de pression SECURITHERM EP

Ref. 2739EP

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
2739EPHYG
Auto-draining shower kit with mechanical pressure-balancing (EP) mixer
Auto-draining shower kit with mechanical pressure-balancing (EP) mixer
2739EPKIT

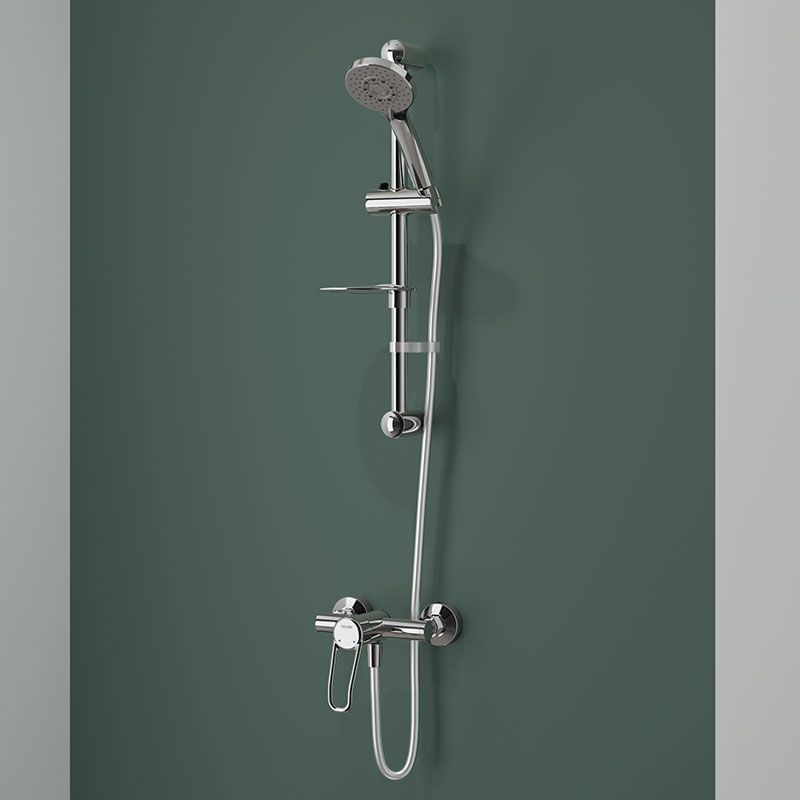

Shower riser rail with EP mechanical mixer
Shower riser rail with EP mechanical mixer

Spare parts

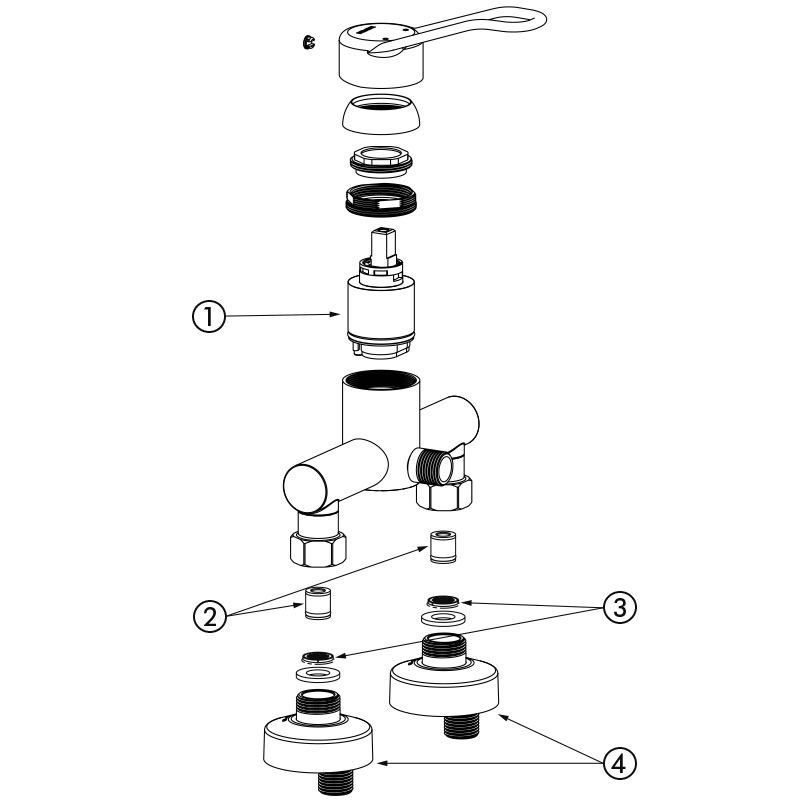

SPARE PARTS

SECURITHERM EP pressure-balancing shower mixer

Ref. 2739EP
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 900007
Non-return valve with flow rate regulator
3. 60234.10P
Flat filter
4. 855755.2P
Offset connectors

VARIANTS

2739TEP Mixer with EP cartridge - Solid lever - STOP/CHECK connectors £331.29 excl. VAT
2739EPS Mixer with EP cartridge - Sculptured lever - Standard connectors £291.07 excl. VAT
2739TEPS Mixer with EP cartridge - Solid lever - Standard connectors £291.07 excl. VAT
2739 Mixer w standard cartridge - Sculptured lever - STOP/CHECK connectors £267.94 excl. VAT
2739T Mixer w standard cartridge - Solid lever - STOP/CHECK connectors £267.94 excl. VAT
2739S Mixer with standard cartridge -Sculptured lever - Standard connectors £227.72 excl. VAT
2739TS Mixer with standard cartridge - Solid lever - Standard connectors £227.72 excl. VAT

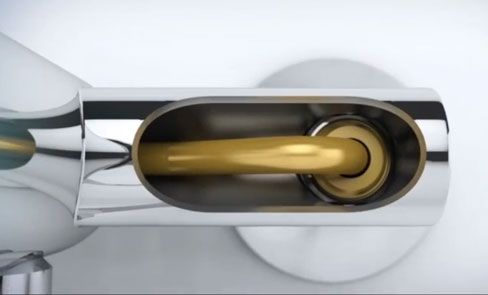

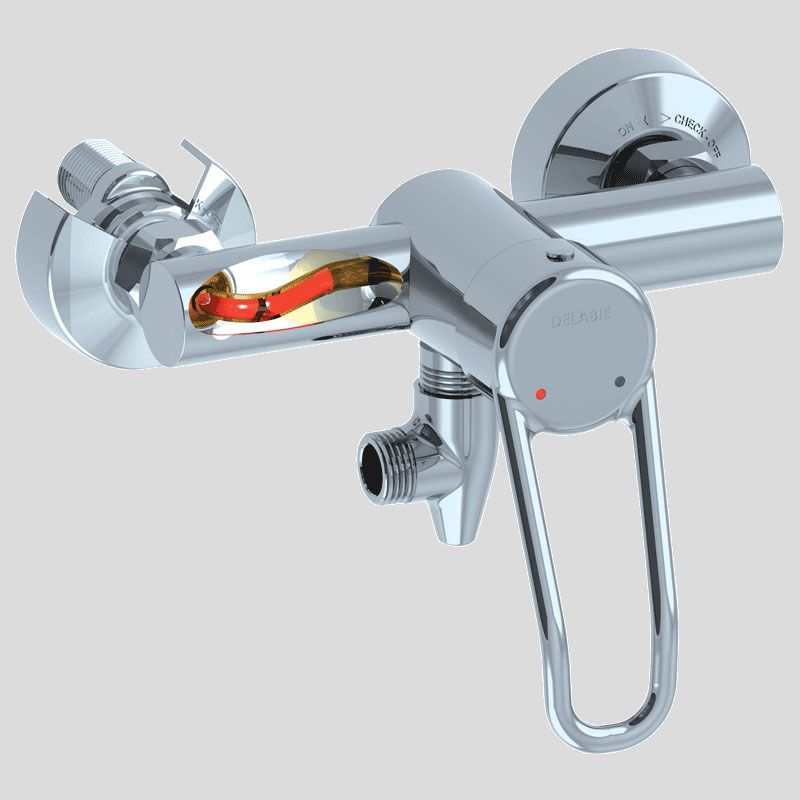

Infection control: mixer body with smooth interior
Infection control: mixer body with smooth interior

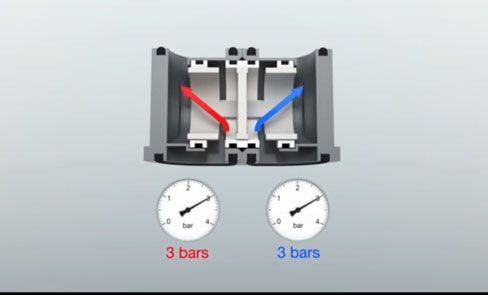

Pressure-balancing: mixer with anti-scalding safety and stable temperature
Pressure-balancing: mixer with anti-scalding safety and stable temperature

VARIANTS

2739TEP Mixer with EP cartridge - Solid lever - STOP/CHECK connectors £331.29 excl. VAT
2739EPS Mixer with EP cartridge - Sculptured lever - Standard connectors £291.07 excl. VAT
2739TEPS Mixer with EP cartridge - Solid lever - Standard connectors £291.07 excl. VAT
2739 Mixer w standard cartridge - Sculptured lever - STOP/CHECK connectors £267.94 excl. VAT
2739T Mixer w standard cartridge - Solid lever - STOP/CHECK connectors £267.94 excl. VAT
2739S Mixer with standard cartridge -Sculptured lever - Standard connectors £227.72 excl. VAT
2739TS Mixer with standard cartridge - Solid lever - Standard connectors £227.72 excl. VAT
Infection control: mixer body with smooth interior
Infection control: mixer body with smooth interior
Pressure-balancing: mixer with anti-scalding safety and stable temperature
Pressure-balancing: mixer with anti-scalding safety and stable temperature
