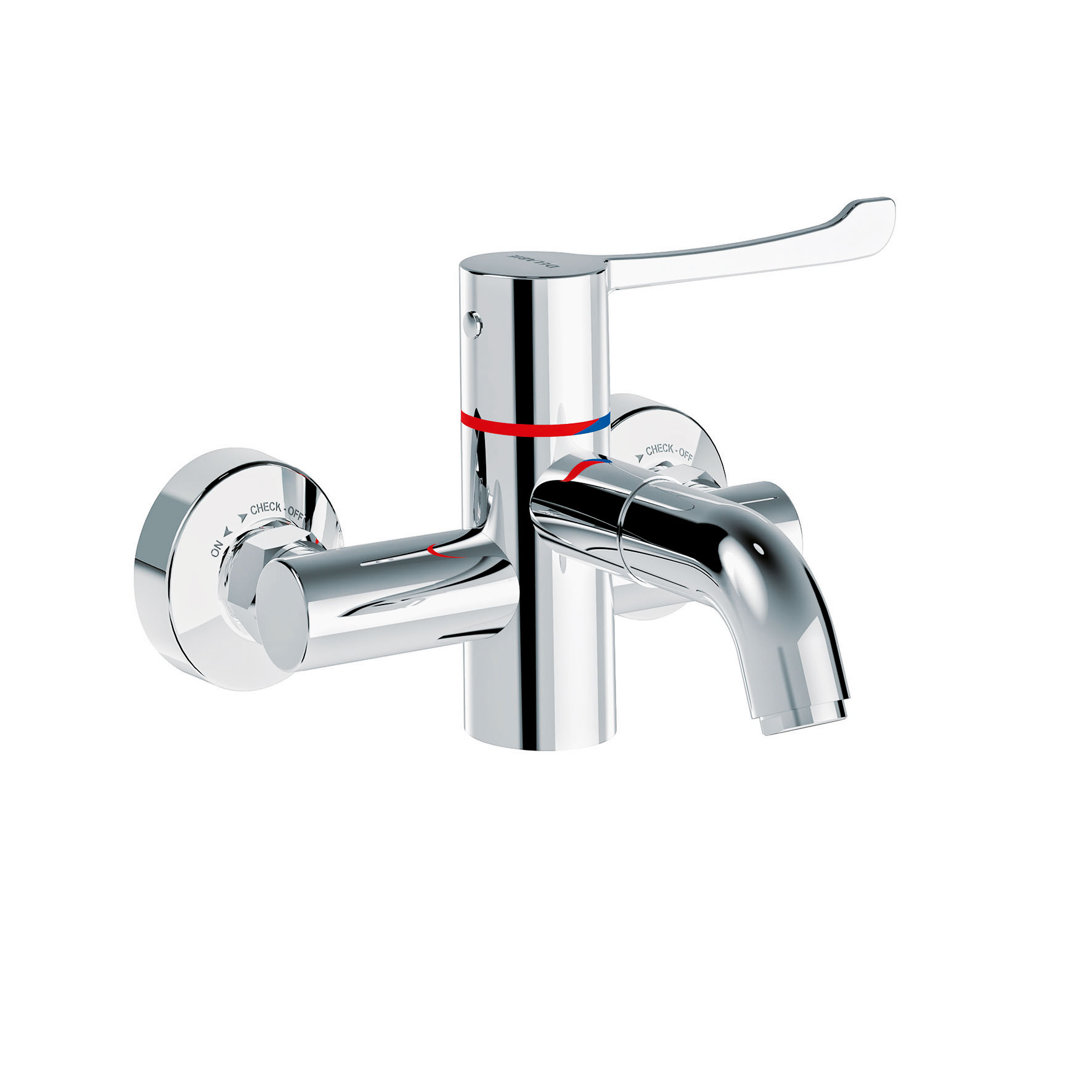

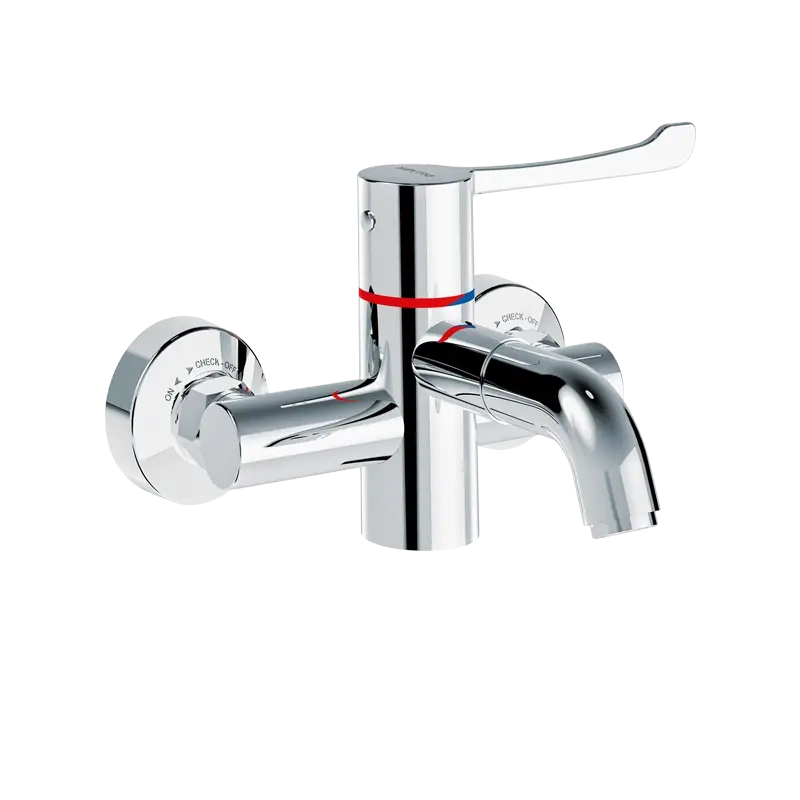

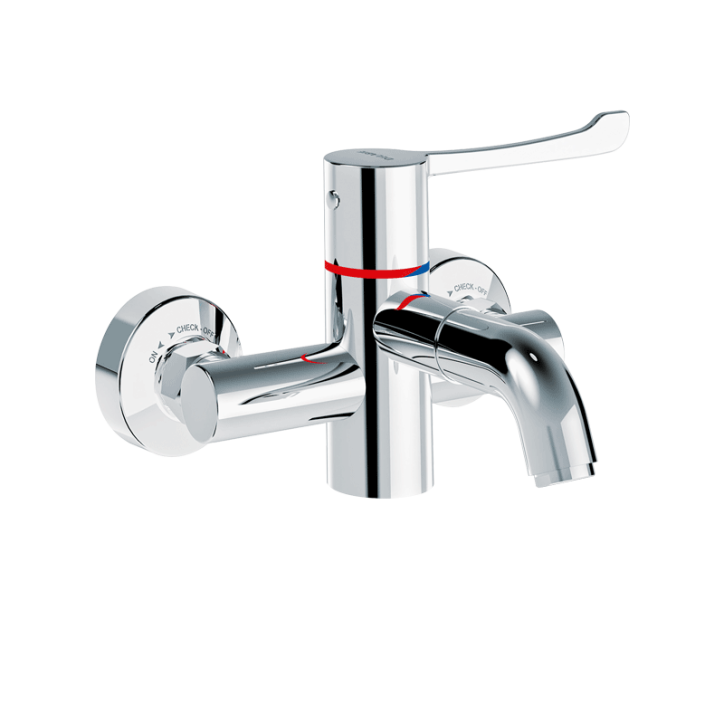

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P
Wall-mounted thermostatic sequential mixer
SECURITHERM BIOCLIP thermostatic sink mixer

Presentation

DESCRIPTION

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

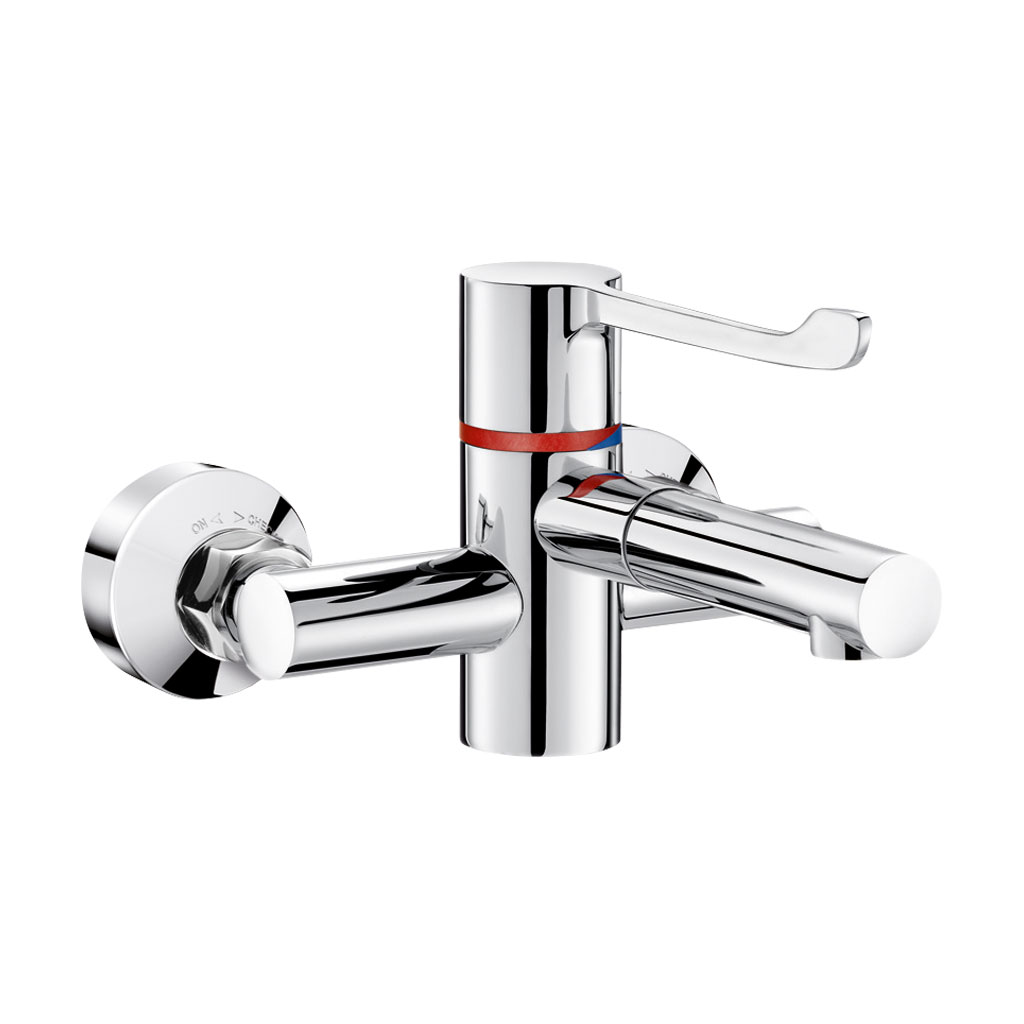

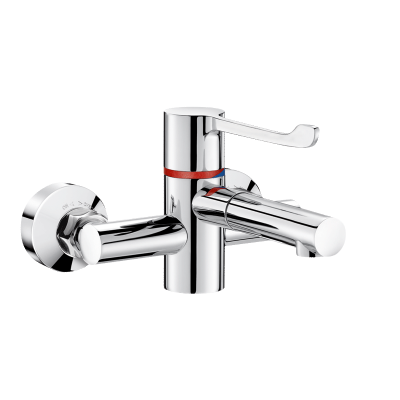

Wall-mounted SECURITHERM thermostatic sink mixer.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Mixer supplied with 2 stainless steel spouts L. 136mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge for sequential control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with 2 in-line STOP/CHECK connectors ideal for hospitals.

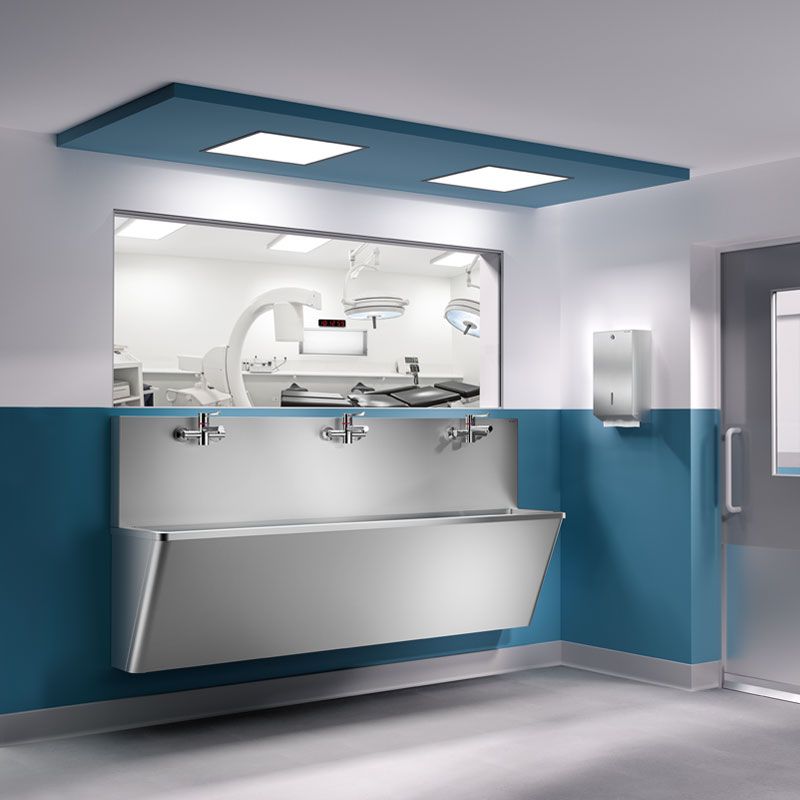

Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

2024 UK public price excluding VAT: £565.63

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

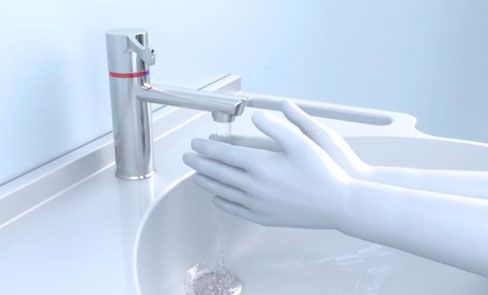

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Robinetterie déclipsable

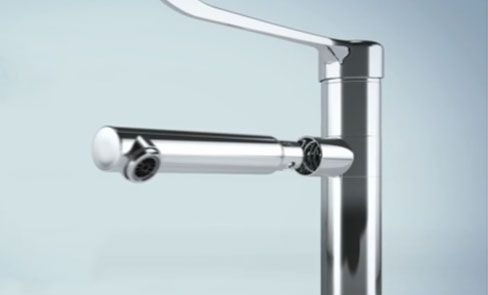

Removable spout: reduces bacterial development

Sécurité anti-brûlure

SECURITHERM: optimum anti-scalding safety

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

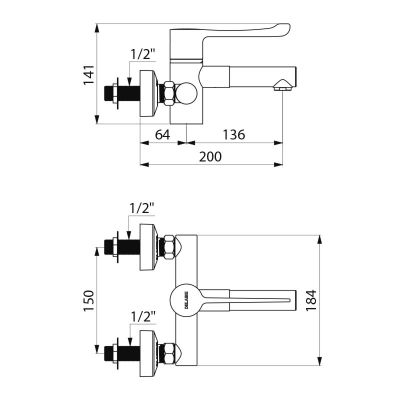

Connector M1/2"
Technology SECURITHERM BIOCLIP sequential mixer
Height 141mm
Width 184mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates Logo WRAS Logo TMV
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9614P Removable st. steel spout - inline STOP/CHECK unions, 200mm centres £564.56 excl. VAT
