TEMPOCHASSE direct flush kit

Ref. 760005
Time flow direct flush WC kit
See variants See variants
TEMPOCHASSE direct flush kit

Presentation

DESCRIPTION

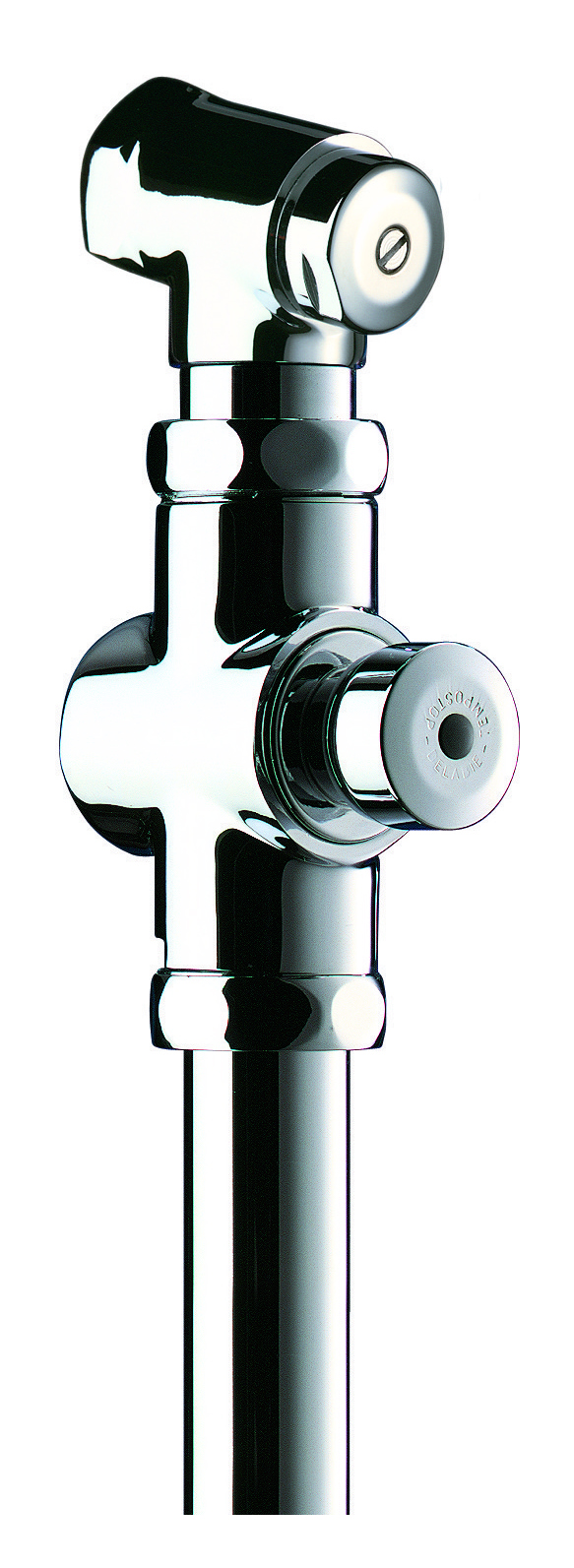

TEMPOCHASSE direct flush kit

Ref. 760005
Flush system without cistern: directly connected to pipework.
For wall-mounted exposed installation.
For conventional pan.
Time flow ~7 seconds.
Vacuum breaker.
Elbow F1" chrome-plated brass stopcock and flow rate / flush volume adjuster.
Chrome-plated solid brass body and push-button.
Shock-resistant mechanism.
Connection washer Ø 32/55mm with clamp.
Bright polished stainless steel elbow flush tube Ø 32mm with nut and collar.
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
30-year warranty.

2025 UK public price excluding VAT: £294.93

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Chrome-plated solid brass

Endurance - Fiabilité

Powerful flush and immediately available

Economie d'eau

Direct flush reduces the risk of leaks

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOCHASSE direct flush kit

Ref. 760005
Connector 1"
Height 815mm
Length 205mm
Certificates Logo Belgaqua
Warranty 30-Year
TEMPOCHASSE direct flush kit
Ref. 760005

Downloads

DOWNLOADS

TEMPOCHASSE direct flush kit

Ref. 760005

To download one or several documents linked to this product, please select the type of file you require :
