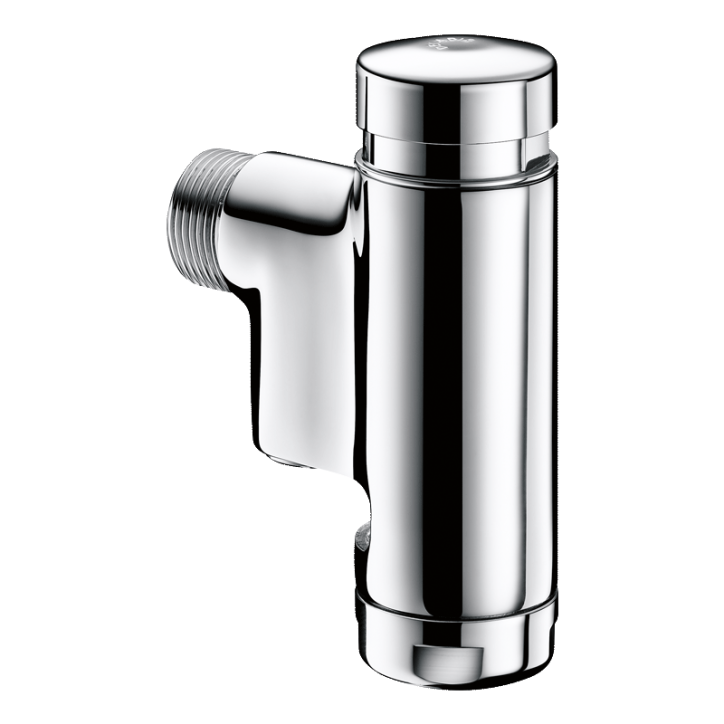

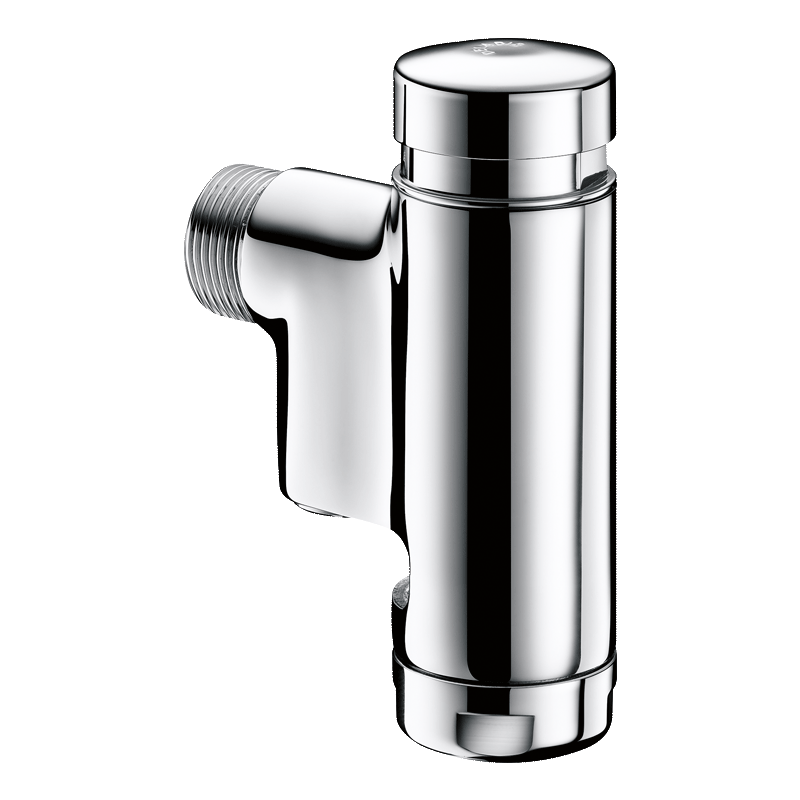

TEMPOFLUX 1 direct flush valve

Ref. 761001
Time flow direct flush WC valve
See variants See variants
TEMPOFLUX 1 direct flush valve

Presentation

DESCRIPTION

TEMPOFLUX 1 direct flush valve

Ref. 761001
Flush system without cistern: directly connected to pipework.
For wall-mounted exposed installation.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Integrated stopcock and flow/volume rate adjuster.
Chrome-plated solid brass body and push-button.
Angled inlet M¾".
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Suitable for people with reduced mobility.
30-year warranty.

2025 UK public price excluding VAT: £175.27

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Chrome-plated solid brass

Endurance - Fiabilité

Powerful flush and immediately available

Economie d'eau

Direct flush reduces the risk of leaks

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 1 direct flush valve

Ref. 761001
Connector ¾"
Certificates Logo DoP Logo Belgaqua
Warranty 30-Year
TEMPOFLUX 1 direct flush valve
Ref. 761001

Downloads

DOWNLOADS

TEMPOFLUX 1 direct flush valve

Ref. 761001

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

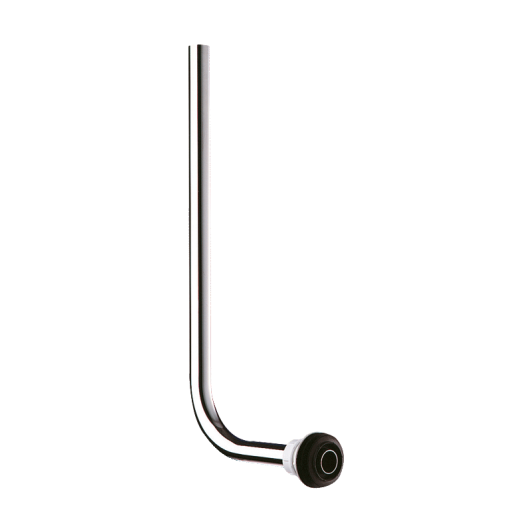

761003 Kit with tube/collar/washer, stopcock flow/vol reg. elbow inlet M3/4" £258.30 excl. VAT
