DESCRIPTION

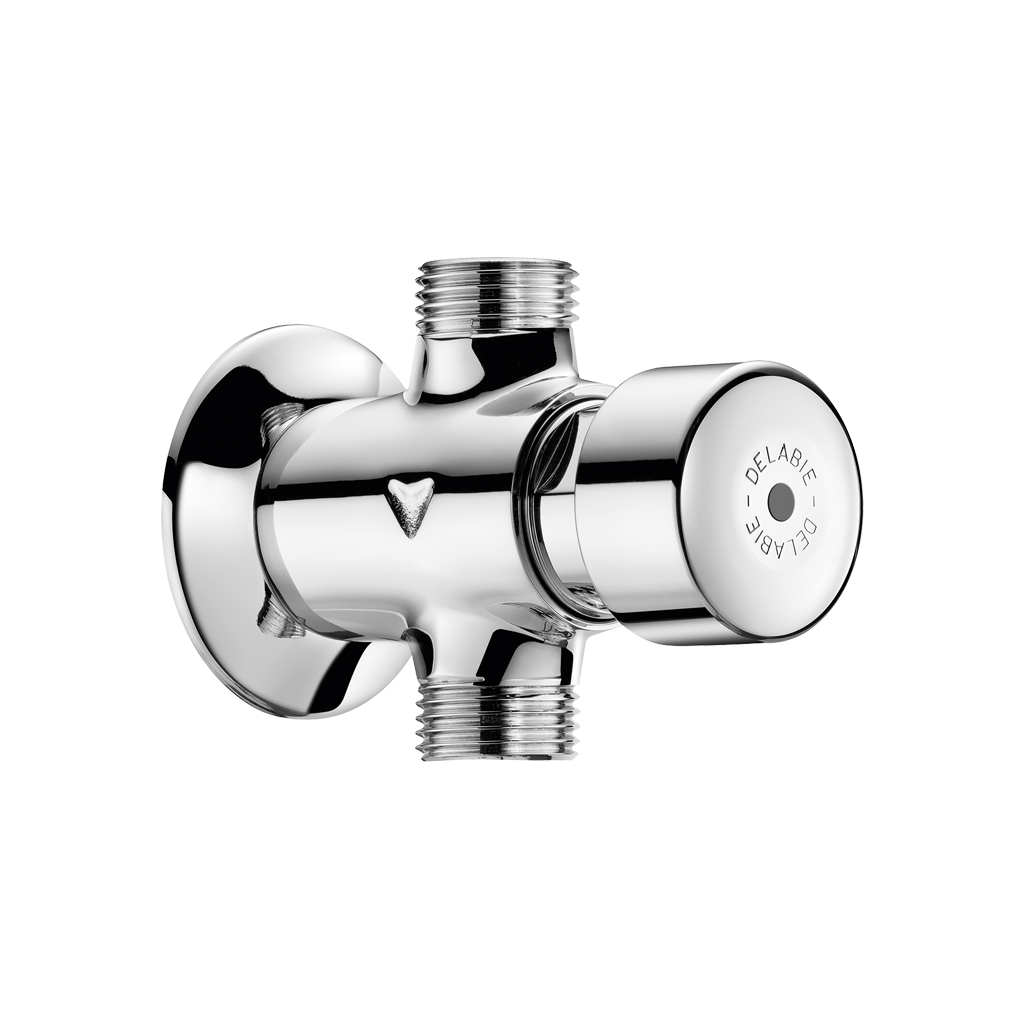

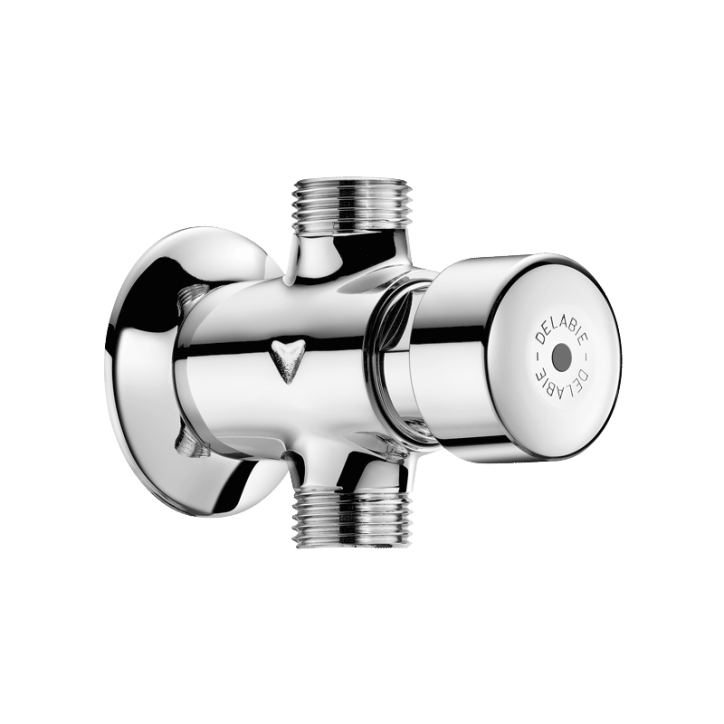

TEMPOSTOP time flow urinal valve
Ref. 777000Exposed time flow urinal valve:
For standard, siphon action, or stall urinals.
For wall-mounted installation.
Time flow ~3 seconds.
Flow rate pre-set at 0.15 l/sec. at 3 bar, can be adjusted.
Compatible with rain water.
Chrome-plated brass body M½".
Wall plate.
Straight for in-line inlet.
30-year warranty.
For standard, siphon action, or stall urinals.
For wall-mounted installation.
Time flow ~3 seconds.
Flow rate pre-set at 0.15 l/sec. at 3 bar, can be adjusted.
Compatible with rain water.
Chrome-plated brass body M½".
Wall plate.
Straight for in-line inlet.
30-year warranty.
2025 UK public price excluding VAT: £74.70
ADVANTAGES
Eco time flow 3 seconds
Chrome-plated solid brass
Withstands over 500,000 operations

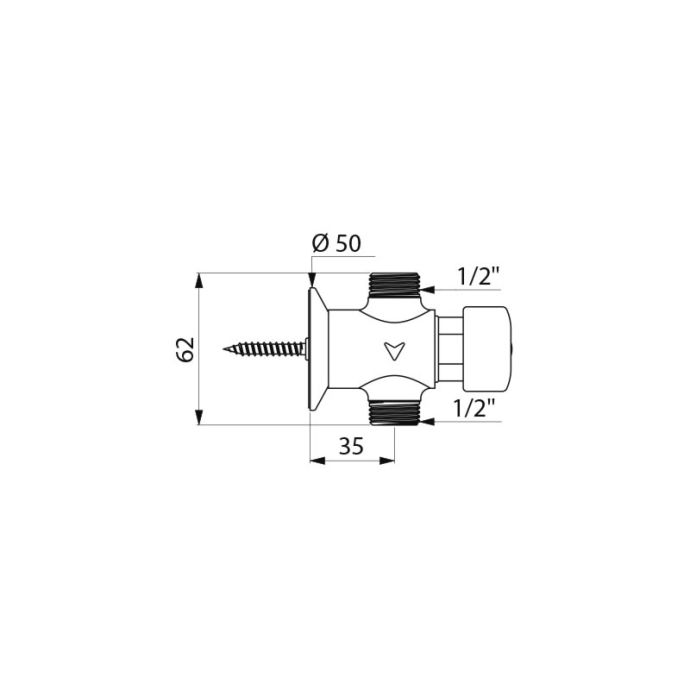

TECHNICAL CHARACTERISTICS
TEMPOSTOP time flow urinal valve
Ref. 777000| Connector | 1/2" |
| Technology | Time flow |
| Height | 62mm |
| Flow rate | 0.15 l/sec. |
| Certificates |
|
| Warranty |
|
| Repairability |  |

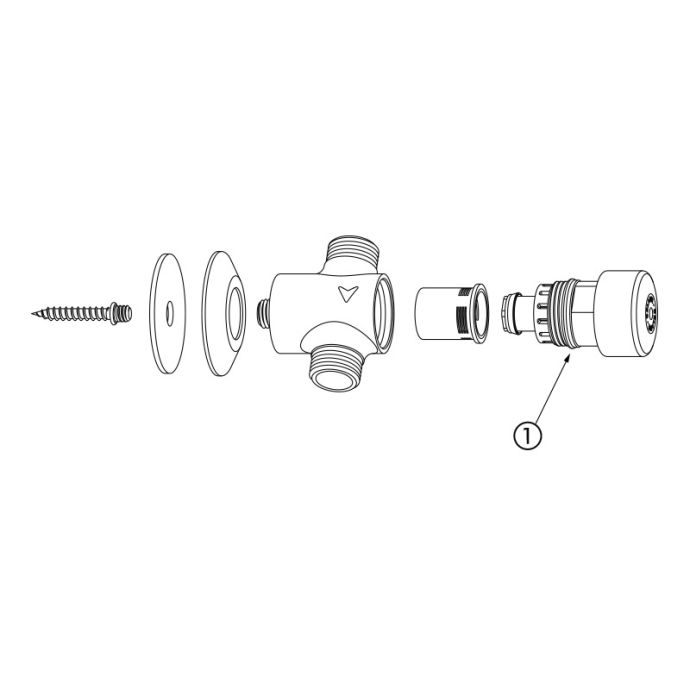

Spare parts
SPARE PARTS
TEMPOSTOP time flow urinal valve
Ref. 777000
| 1. | 743003 |
|
Time flow cartridge |
VARIANTS
| 778000 | Elbow for recessed inlet, Time flow 3s, M½" | £82.33 excl. VAT |
|---|
Associated products
Adjustable height floor trap
For tiles or concrete floors
Ref. 683001UK
SIPHURINOIR
Siphon with vertical outlet
Ref. 771000
Neck tube
Neck tube for standard or siphon action urinal
Ref. 752000
VARIANTS
| 778000 | Elbow for recessed inlet, Time flow 3s, M½" | £82.33 excl. VAT |
|---|
