DESCRIPTION

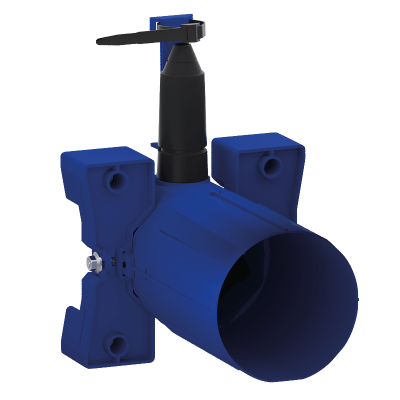

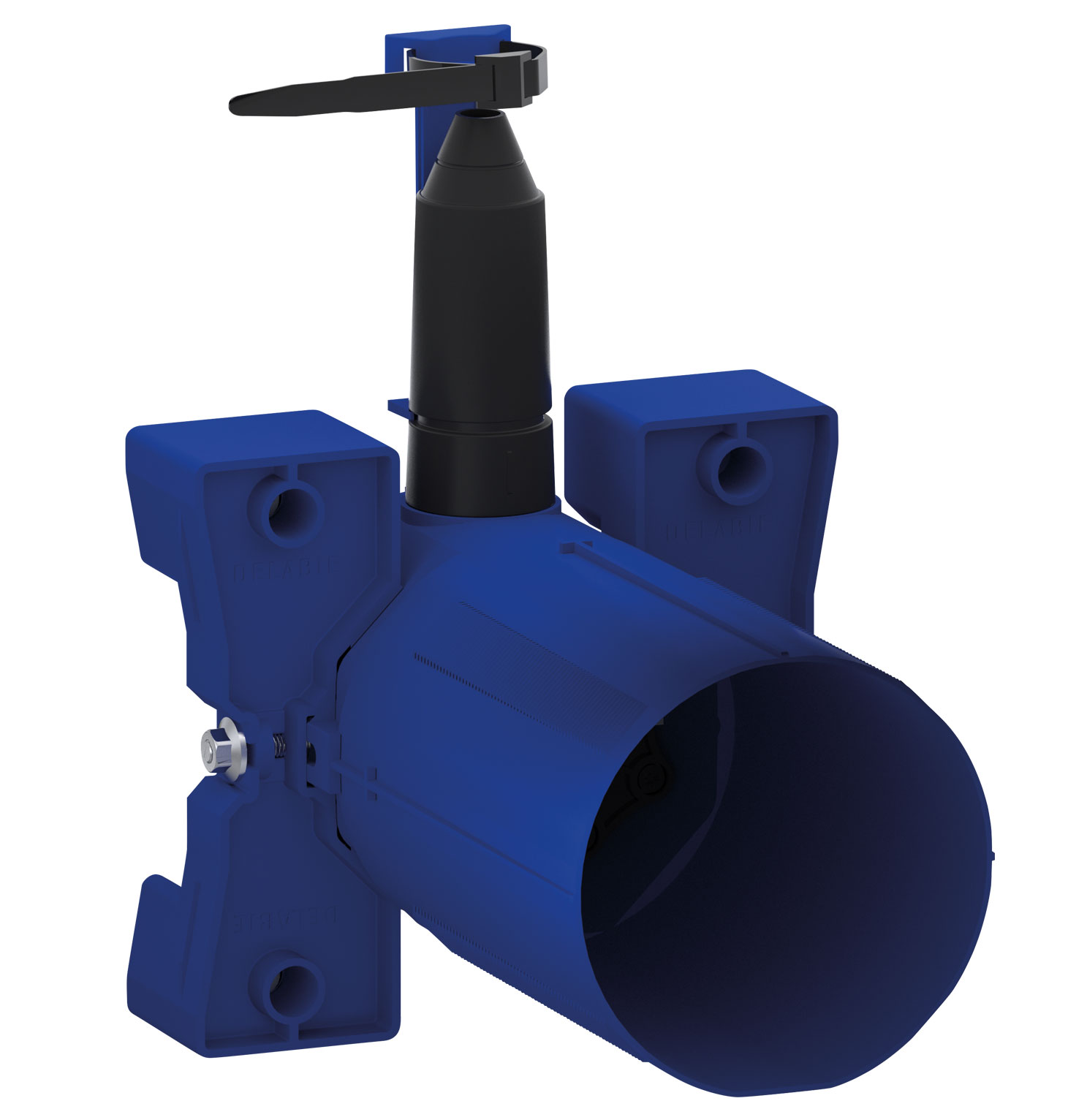

Recessed waterproof housing for BINOPTIC
Ref. 370SBOX
Provisional availability 1st half
Please contact the sales office to check availability.
2025
.
Please contact the sales office to check availability.
Recessed waterproof housing for BINOPTIC 2, kit 1/2:
Mains supply 230/6V (cable and transformer supplied).
Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Modular installation (rails, solid walls, panels).
- Compatible with walls from 10 to 120mm (whilst maintaining the minimum recessing depth of 83mm).
- Adaptable standard pipework or "pipe in pipe".
- Integrated stopcock and flow rate adjuster, filter and solenoid valve are accessible from the front.
- BINOPTIC 2 tap F½".
- Supplied in 2 kits: secured system purge without sensitive elements.
30-year warranty.
Order with control plate references: 370100 or 370110.
Mains supply 230/6V (cable and transformer supplied).
Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Modular installation (rails, solid walls, panels).
- Compatible with walls from 10 to 120mm (whilst maintaining the minimum recessing depth of 83mm).
- Adaptable standard pipework or "pipe in pipe".
- Integrated stopcock and flow rate adjuster, filter and solenoid valve are accessible from the front.
- BINOPTIC 2 tap F½".
- Supplied in 2 kits: secured system purge without sensitive elements.
30-year warranty.
Order with control plate references: 370100 or 370110.
2024 UK public price excluding VAT: £181.22
ADVANTAGES
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Installation recessed in wall
![Secteur](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/1/1/3/3113-12-eng-US/secteur.png)
230/6V mains supply
![Economie d'eau](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
100% waterproof housing

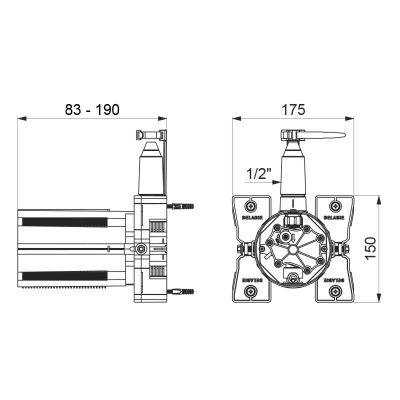

TECHNICAL CHARACTERISTICS
Recessed waterproof housing for BINOPTIC
Ref. 370SBOXConnector | F½" |
Height | 150mm |
Depth | 83-190mm |
Width | 175mm |
Certificates |
![]() |
Warranty | ![]() |
VARIANTS

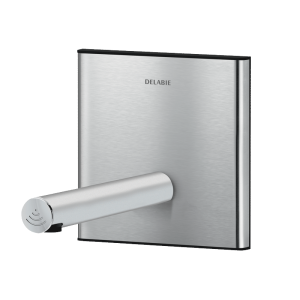

370100 | Satin finish, Spout L.190mm - No waterproof housing | £498.91 excl. VAT | |
---|---|---|---|
370110 | Chrome finish, Spout L.190mm - No waterproof housing | £515.33 excl. VAT |
VARIANTS
370100 | Satin finish, Spout L.190mm - No waterproof housing | £498.91 excl. VAT | |
---|---|---|---|
370110 | Chrome finish, Spout L.190mm - No waterproof housing | £515.33 excl. VAT |
