DESCRIPTION

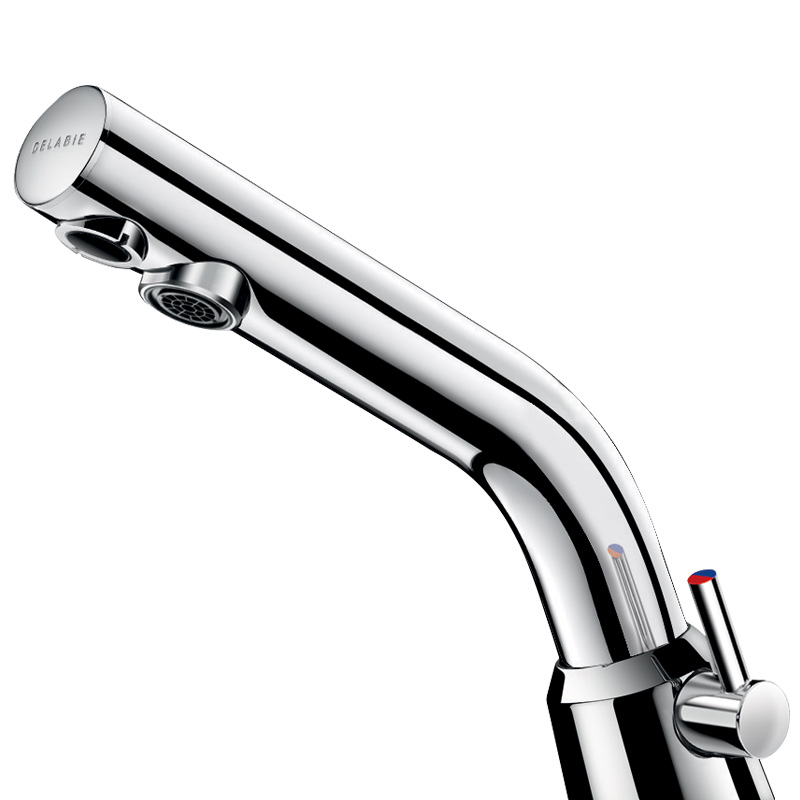

BINOPTIC MIX electronic mixer
Ref. 378MCHDeck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £527.80
ADVANTAGES
90% water savings
Hygiene: no manual contact
Independent IP65 electronic control unit
Anti-bacterial proliferation duty flush
TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 378MCHSupply | 230/12V mains supply |
Connector | M3/8" |
Technology | Electronic |
Drop height | 110mm |
Spout length | 135mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts

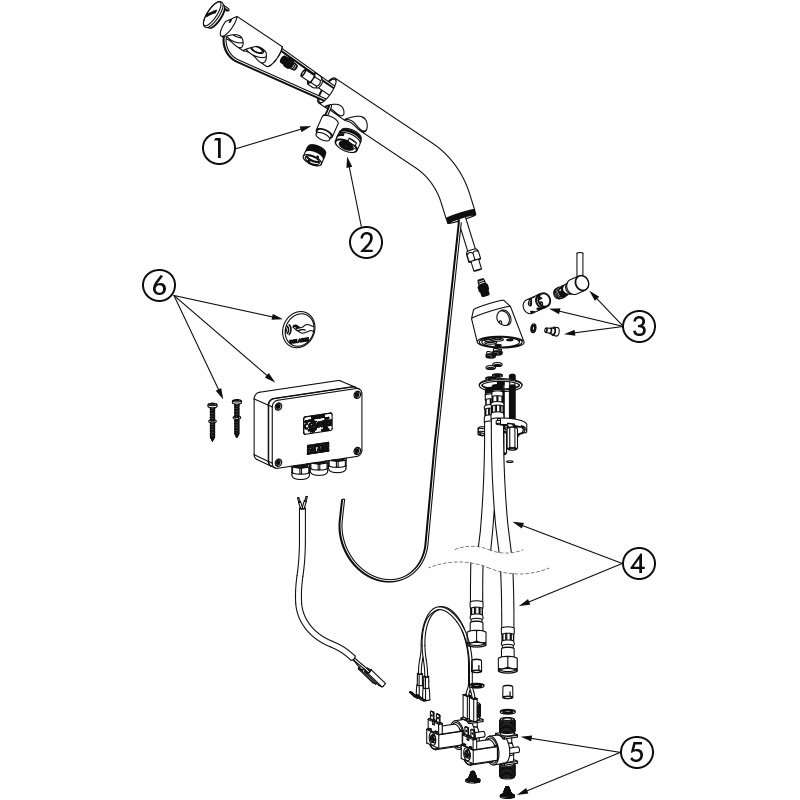

SPARE PARTS
BINOPTIC MIX electronic mixer
Ref. 378MCH1. | CEL378150V |
|
Detector |
2. | 922024.2P |
|
ECO flow straightener |
3. | 742MSP |
|
Mixing key |
4. | FLEX795 |
|
Stainless steel flexibles F3/8" |
5. | 495444BC |
|
Electronic control unit |
6. | 495612 |
|
Solenoid valve |
VARIANTS
378MCH15 | Mains supply - standard lever - Ø15mm compression fittings | £568.65 excl. VAT | |
---|---|---|---|
478MCH15 | Battery operated - standard lever - Ø15mm compression fittings | £676.36 excl. VAT |
VARIANTS
378MCH15 | Mains supply - standard lever - Ø15mm compression fittings | £568.65 excl. VAT | |
---|---|---|---|
478MCH15 | Battery operated - standard lever - Ø15mm compression fittings | £676.36 excl. VAT |
