DESCRIPTION

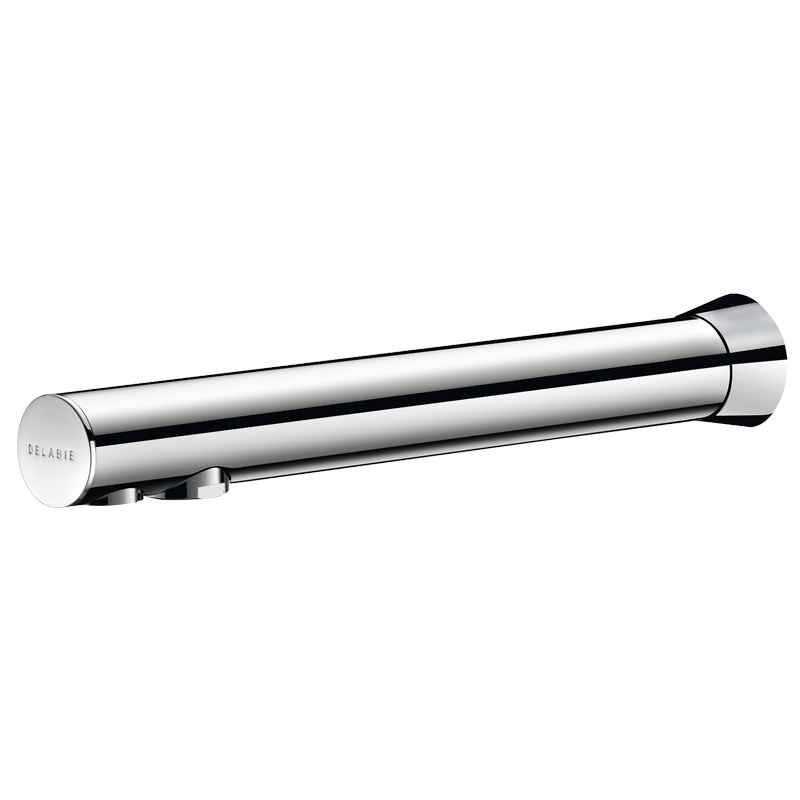

BINOPTIC electronic tap
Ref. 379DERElectronic basin tap for cross wall installation.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.

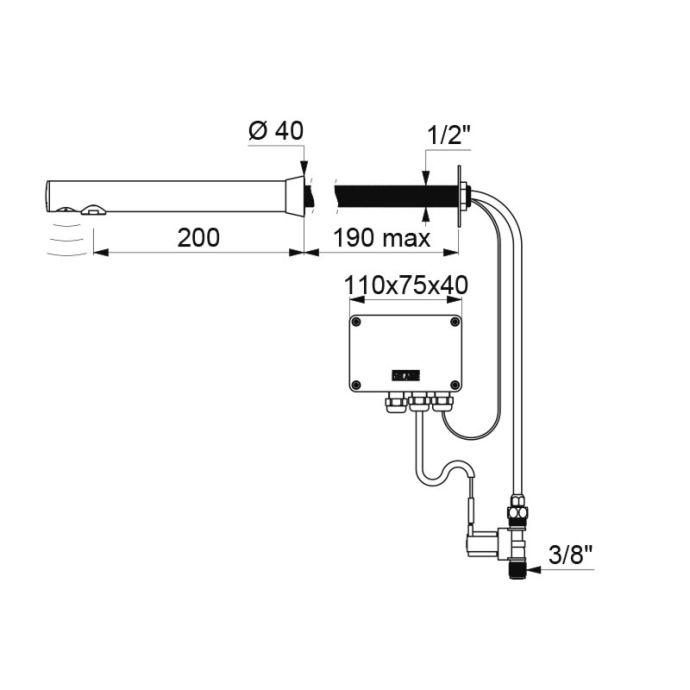

Chrome-plated spout L. 205mm for cross wall installation ≤ 190mm.
Cable for sensor L. 120mm, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.
Chrome-plated spout L. 205mm for cross wall installation ≤ 190mm.
Cable for sensor L. 120mm, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £413.74
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Independent IP65 electronic control unit
LED diagnostic aid
TECHNICAL CHARACTERISTICS
BINOPTIC electronic tap
Ref. 379DER| Supply | 230/12V mains supply |
| Connector | M3/8" |
| Technology | Electronic |
| Spout length | 205mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
| Repairability |  |

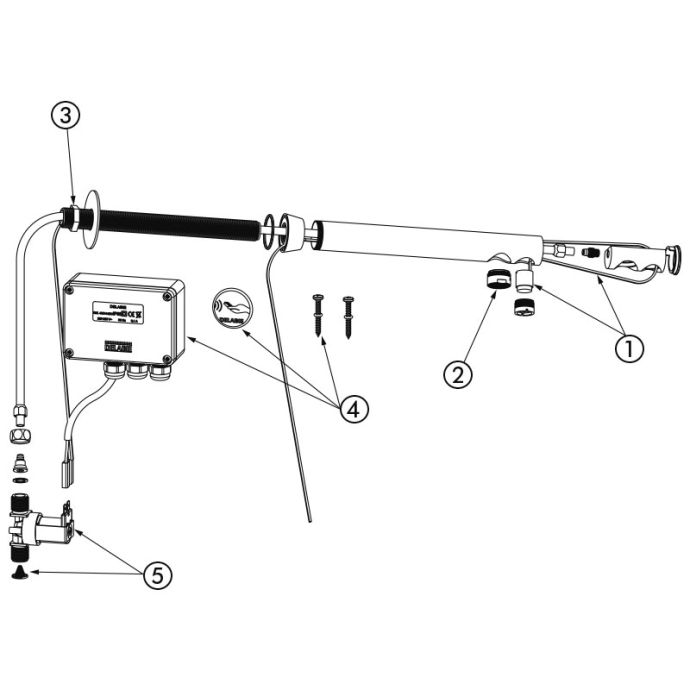

Spare parts
SPARE PARTS
BINOPTIC electronic tap
Ref. 379DER
| 1. | CEL378150V |
|
Detector |
| 2. | 922024.2P |
|
ECO flow straightener |
| 3. | 826115 |
|
Back-nut |
| 4. | 495444BC |
|
Electronic control unit |
| 5. | 495612 |
|
Solenoid valve |
VARIANTS
| 379ENCL | Recessed - Spout L. 252mm | ||
|---|---|---|---|
| 379ENC | Recessed - Spout L.200mm | £424.40 excl. VAT | |
| 379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | £449.62 excl. VAT | |
| 379DER15 | For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings | £438.23 excl. VAT | |
| 379D13 | For walls from 1 to 190mm - Spout L. 135mm | £413.74 excl. VAT | |
| 379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings | £438.96 excl. VAT |
