DESCRIPTION

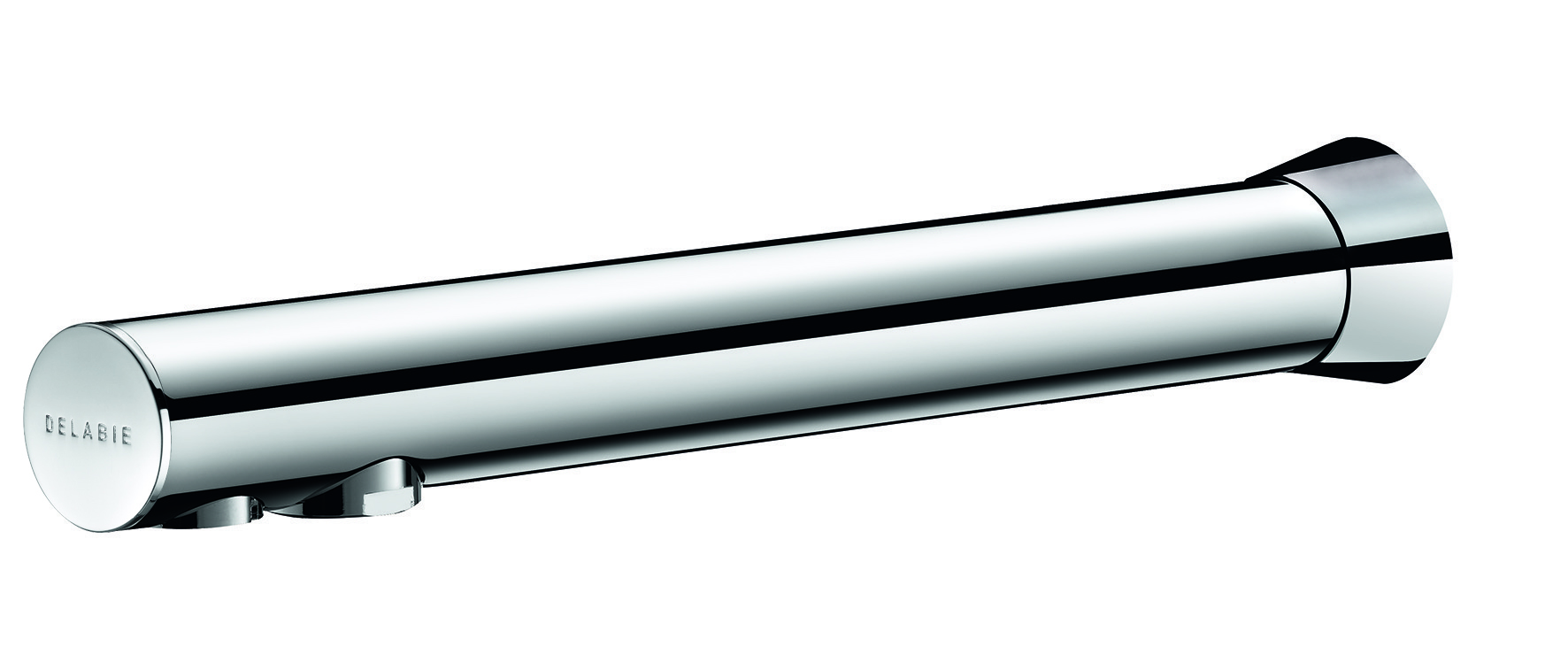

BINOPTIC electronic tap
Ref. 379DER15Cross wall electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Filter, solenoid valve and Ø 15mm conical inlet.
Chrome-plated solid brass body.
Chrome-plated spout L. 205mm for cross wall installation ≤ 190mm.
Sensor cable, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with a smooth interior and low water volume (limits bacterial niches).
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Filter, solenoid valve and Ø 15mm conical inlet.
Chrome-plated solid brass body.
Chrome-plated spout L. 205mm for cross wall installation ≤ 190mm.
Sensor cable, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with a smooth interior and low water volume (limits bacterial niches).
30-year warranty.
2024 UK public price excluding VAT: £438.23
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
LED diagnostic aid
Duty flush limits bacterial proliferation
TECHNICAL CHARACTERISTICS
BINOPTIC electronic tap
Ref. 379DER15| Supply | 230/12V mains supply |
| Connector | M1/2'' Ø 15mm |
| Technology | Electronic |
| Spout length | 205mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 379ENCL | Recessed - Spout L. 252mm | ||
|---|---|---|---|
| 379ENC | Recessed - Spout L.200mm | £424.40 excl. VAT | |
| 379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | £449.62 excl. VAT | |
| 379DER | For walls from 1 to 190mm - Spout L. 205mm | £413.74 excl. VAT | |
| 379D13 | For walls from 1 to 190mm - Spout L. 135mm | £413.74 excl. VAT | |
| 379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings | £438.96 excl. VAT |
Hand hygiene: which products to choose?
Over 90% water savings with the BINOPTIC
Associated products
BINOPTIC wall-mounted electronic soap dispenser
Electronic liquid or foam soap, or hydroalcoholic gel dispenser
Ref. 512051P
HIGHFLOW high-speed hand dryer
Air pulse
Ref. 510622
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116
VARIANTS
| 379ENCL | Recessed - Spout L. 252mm | ||
|---|---|---|---|
| 379ENC | Recessed - Spout L.200mm | £424.40 excl. VAT | |
| 379ENC15 | Recessed - Spout L.200mm - Ø15mm compression fittings | £449.62 excl. VAT | |
| 379DER | For walls from 1 to 190mm - Spout L. 205mm | £413.74 excl. VAT | |
| 379D13 | For walls from 1 to 190mm - Spout L. 135mm | £413.74 excl. VAT | |
| 379D1315 | For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings | £438.96 excl. VAT |
