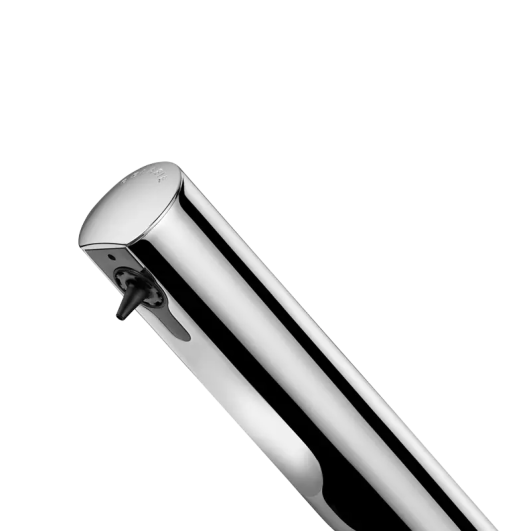

TEMPOMATIC 4 electronic tap

Ref. 44000615
Integrated batteries, stopcock Ø 15mm
TEMPOMATIC 4 electronic tap

Presentation

DESCRIPTION

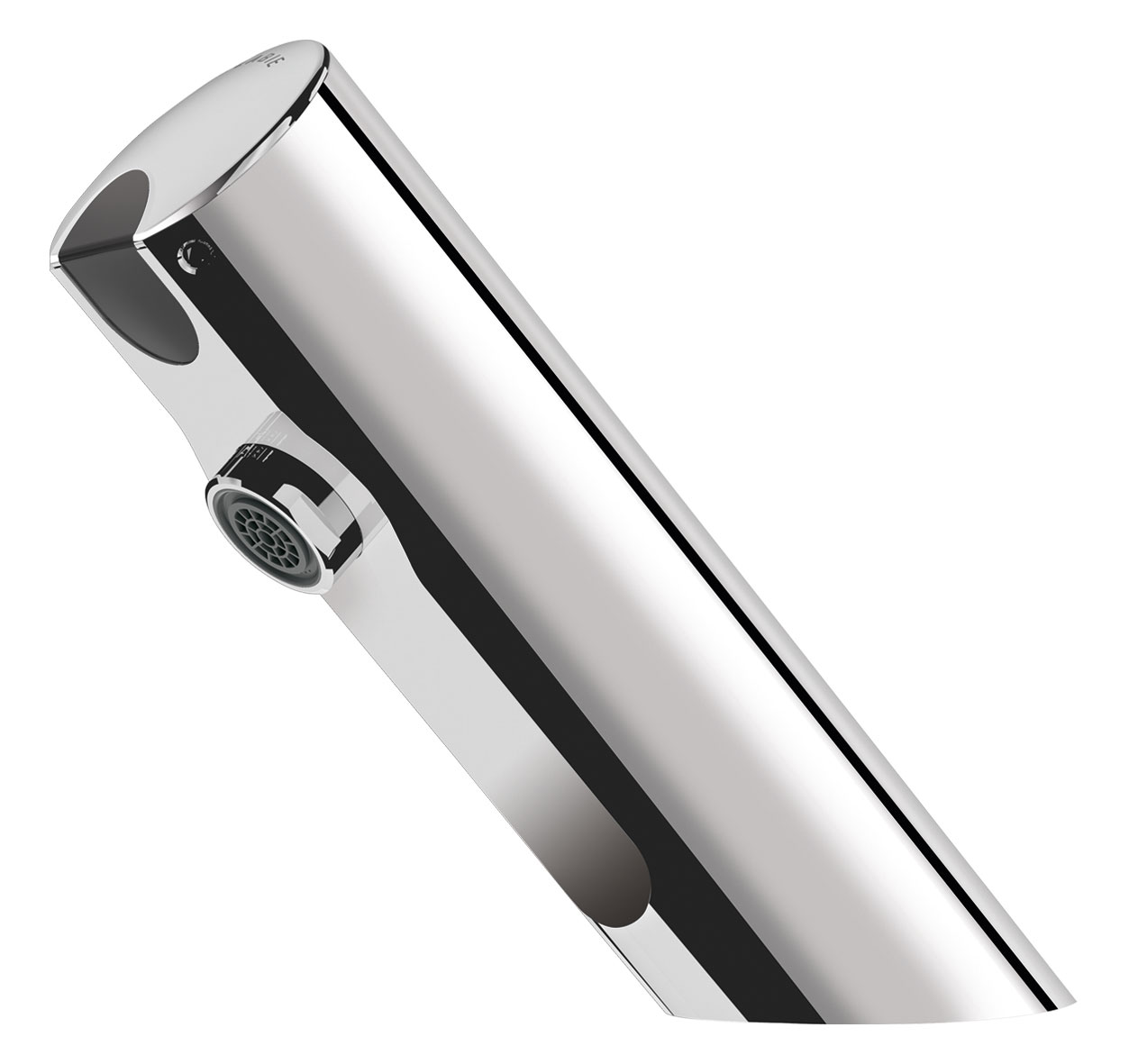

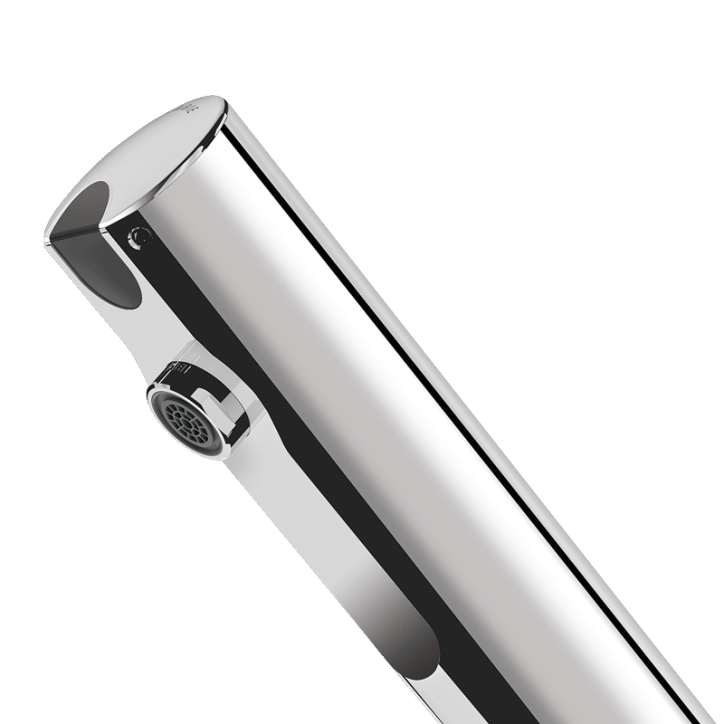

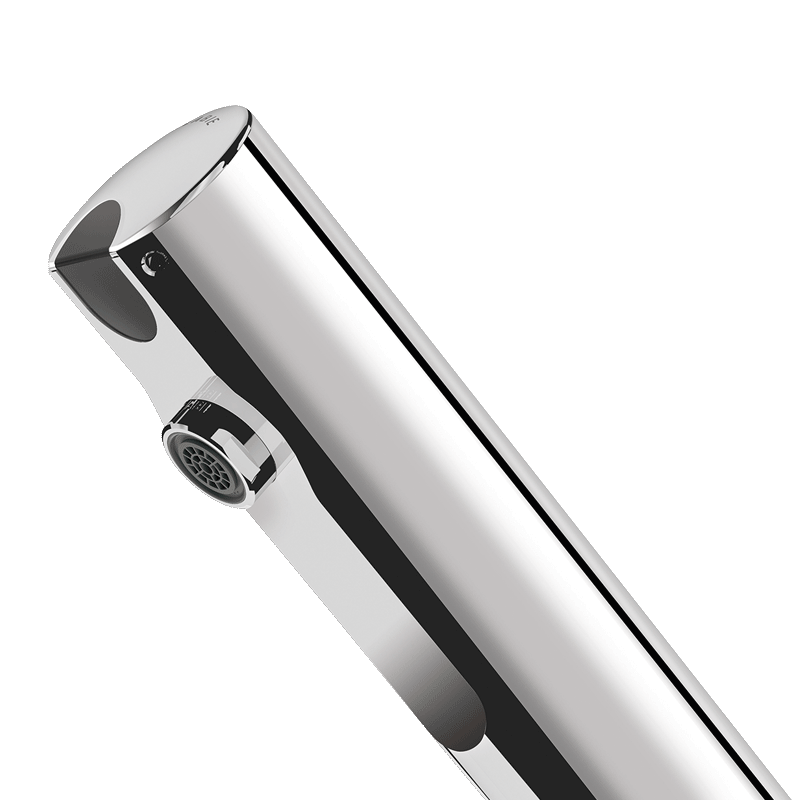

TEMPOMATIC 4 electronic tap

Ref. 44000615
Deck-mounted electronic basin tap:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
PEX flexible Ø 15mm for compression fittings with stopcock, filter and non-return valve.
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £372.51

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Piles

Batteries integrated in tap body

Maintenance aisée - Installation aisée

Integrated solenoid valve

Characteristics

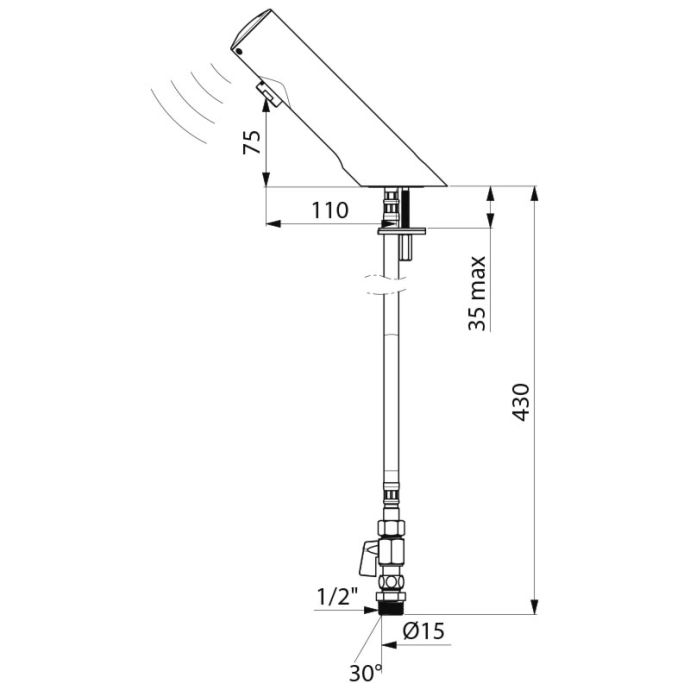

TECHNICAL CHARACTERISTICS

TEMPOMATIC 4 electronic tap

Ref. 44000615
Supply 6V batteries
Connector M1/2'' Ø 15mm
Technology Electronic
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates Logo WRAS
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

TEMPOMATIC 4 electronic tap

Ref. 44000615

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

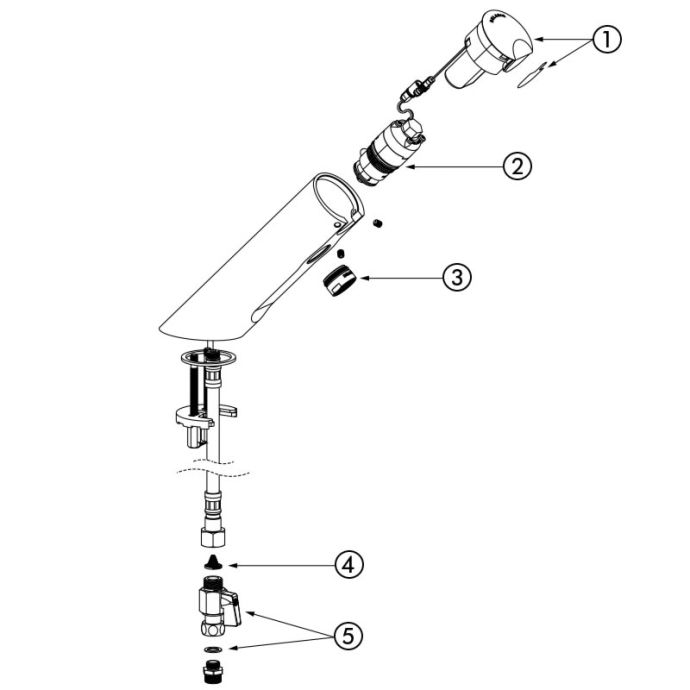

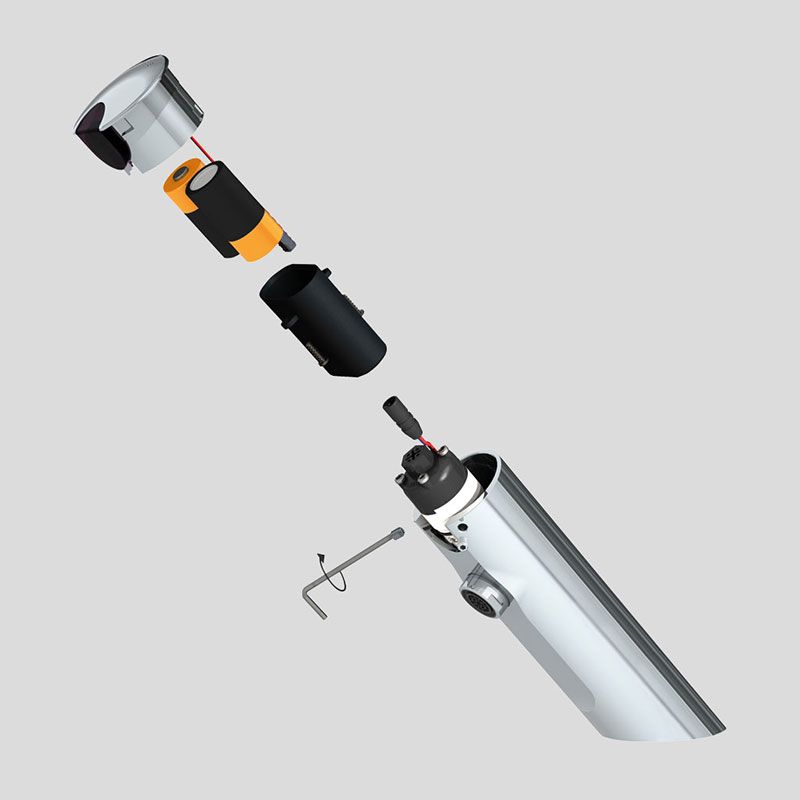

SPARE PARTS

TEMPOMATIC 4 electronic tap

Ref. 44000615
1. 490454
Electronic control unit
2. 479650
Solenoid valve
3. 922024.2P
ECO flow straightener
4. 60440.10P
Filter with mesh screen
5. 825212
In-line STOP union

VARIANTS

44000015 Mains supply, recessed unit - Stopcocks - Ø15mm compression fittings £422.60 excl. VAT
44000615CO Battery operated - With stopcocks - Copper tails £415.05 excl. VAT
