BINOPTIC MIX 2 electronic basin mixer

Ref. 473110E
Mains supply, deck-mounted, H. 100mm, Bluetooth®
BINOPTIC MIX 2 electronic basin mixer

Presentation

DESCRIPTION

BINOPTIC MIX 2 electronic basin mixer

Ref. 473110E
Provisional availability 2nd half
2025
.
Please contact the sales office to check availability.

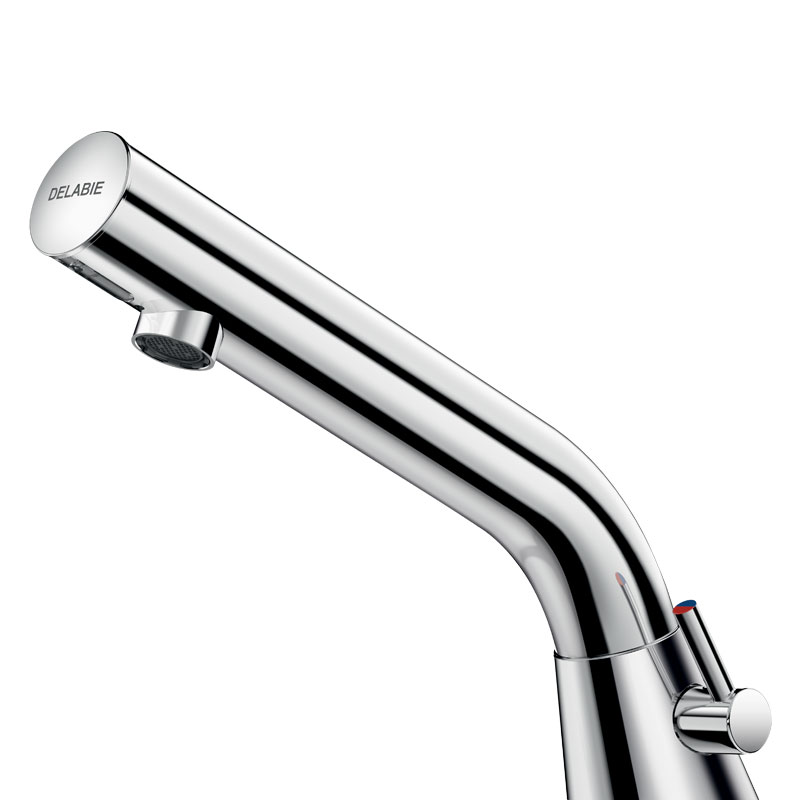

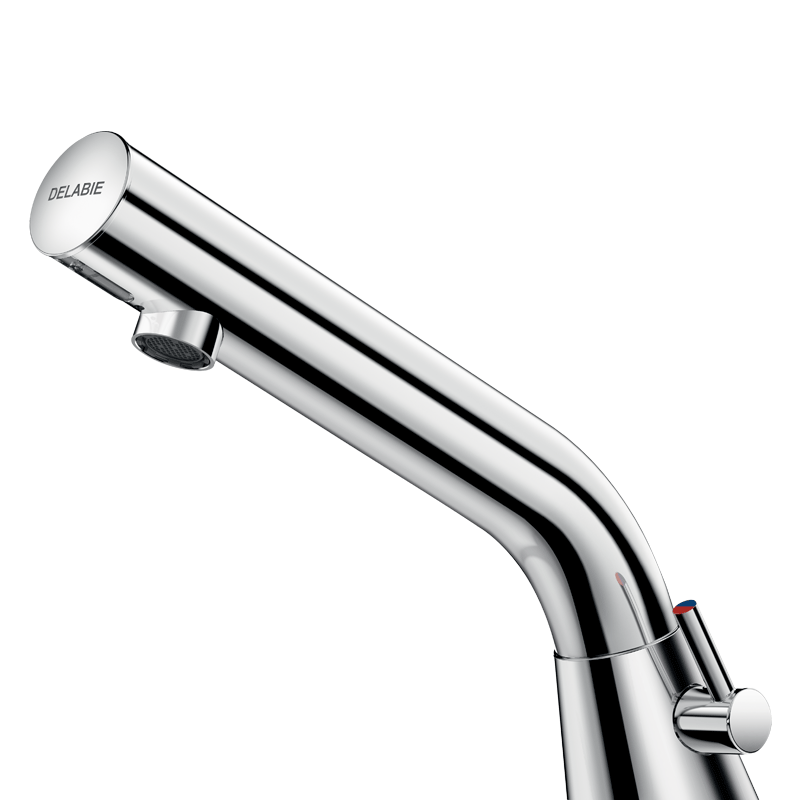

Deck-mounted chrome-plated electronic basin mixer:
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 100mm high for inset basins.
Active, infrared presence detection, sensor at the end of the spout optimises detection.
PEX flexibles F3/8" with filters and non-return valves
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth interior spout with low water volume (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Set detection distance, duty flush and launch thermal shocks manually.
Bluetooth® version: advanced settings and operating data download via DELABIE Connect app.
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £584.05

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Rinçage périodique

Anti-bacterial proliferation duty flush

Bluetooth®

Easy to configure & monitor operation

Characteristics

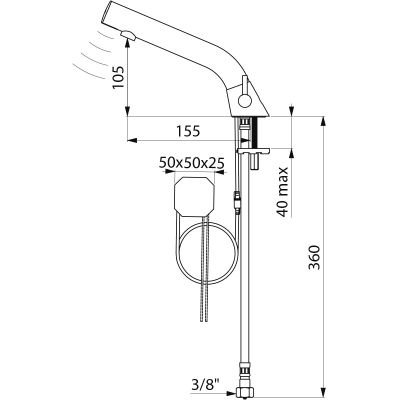

TECHNICAL CHARACTERISTICS

BINOPTIC MIX 2 electronic basin mixer

Ref. 473110E
Supply 230/6V mains supply
Connector M3/8"
Technology Electronic
Drop height 100mm
Flow rate 3 lpm
Finish Chrome-plated
Certificates ACS
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC MIX 2 electronic basin mixer

Ref. 473110E

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

47301015 Chrome finish - mains supply 230/6V - Ø 15mm compression fittings £514.33 excl. VAT
47301615 Chrome finish - 6V batteries - Ø 15mm compression fittings £514.33 excl. VAT
47300015 Satin st. steel - mains supply 230/6V - Ø 15mm compression fittings £514.33 excl. VAT
47300615 Satin st. steel - 6V batteries - Ø 15mm compression fittings £514.33 excl. VAT
