DESCRIPTION

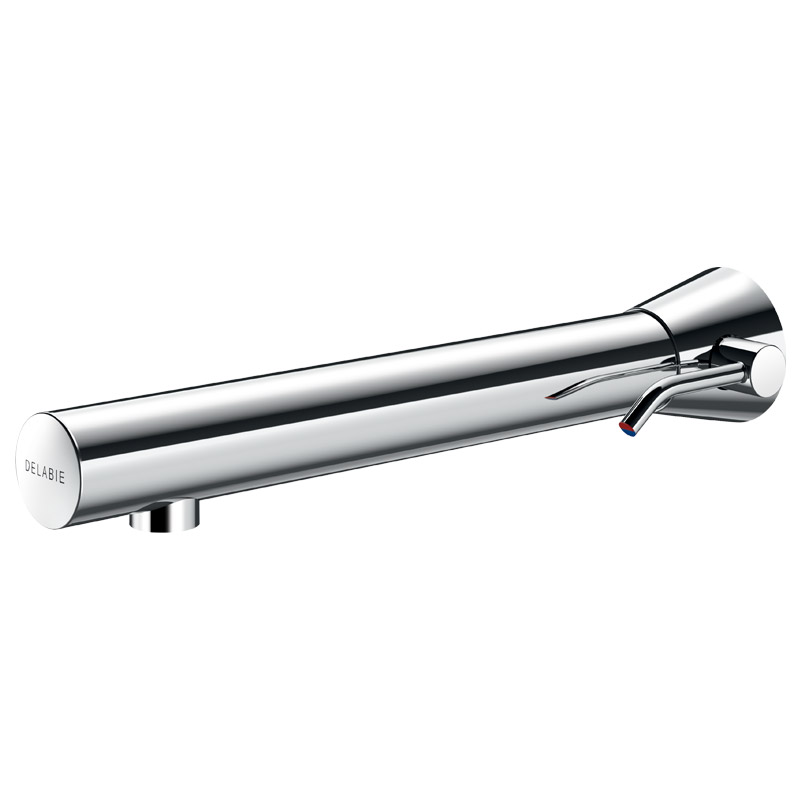

BINOPTIC MIX 2 electronic basin mixer
Ref. 48201015
Provisional availability 2nd half
Please contact the sales office to check availability.
2025
.
Please contact the sales office to check availability.
Cross wall chrome-plated electronic basin mixer:
Ø 15mm.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel mixer.
Presence detection sensor at the end of the spout optimises detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter.
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
Ø 15mm.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel mixer.
Presence detection sensor at the end of the spout optimises detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter.
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £514.33
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial proliferation duty flush
LED diagnostic aids
TECHNICAL CHARACTERISTICS

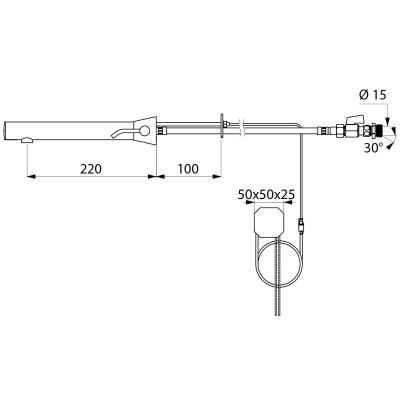

BINOPTIC MIX 2 electronic basin mixer
Ref. 48201015Supply | 230/6V mains supply |
Connector | M½" Ø 15mm |
Technology | Electronic |
Spout length | 220mm |
Flow rate | 3 lpm |
Finish | Chrome-plated |
Warranty |
VARIANTS
484010 | Chrome-plated: L.240mm, recessed supply M1/2" | £610.58 excl. VAT | |
---|---|---|---|
484010E | Chrome-plated: L.240mm, recessed union M1/2", Bluetooth connectivity | £690.23 excl. VAT | |
482010 | Chrome-plated: L.220mm, F3/8", stopcocks, for cross wall installation | £504.40 excl. VAT | |
482110 | Chrome-plated: L.220mm, F3/8", for cross wall installation | £492.01 excl. VAT | |
484000 | Satin: L.240mm, for cross wall installation, M1/2" | £610.58 excl. VAT |
