DESCRIPTION

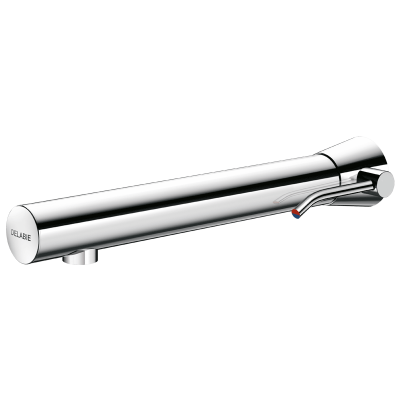

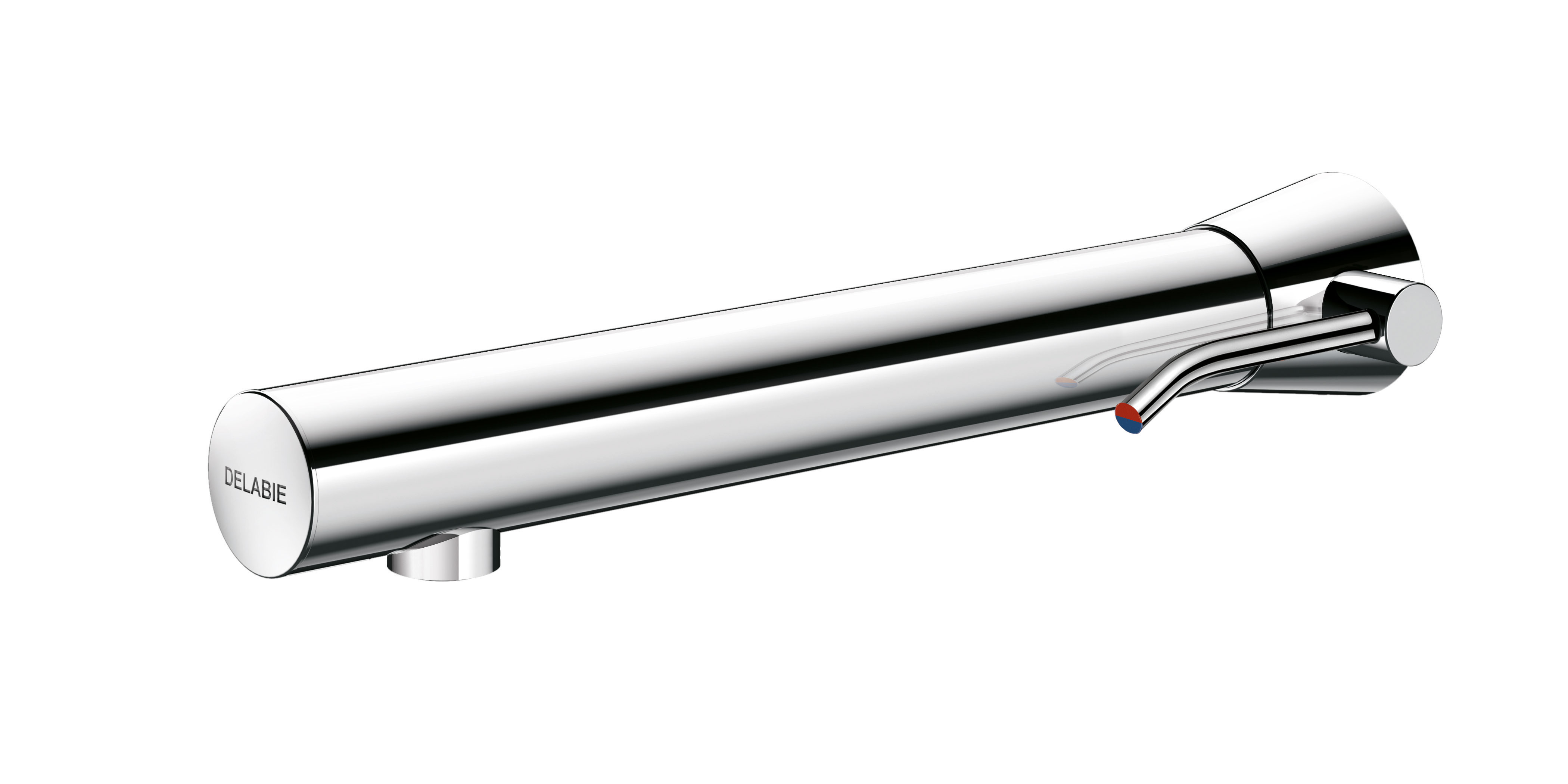

BINOPTIC MIX 2 electronic basin mixer
Ref. 484010E
Provisional availability 1st half
Please contact the sales office to check availability.
2026
.
Please contact the sales office to check availability.
Recessed chrome-plated electronic basin mixer:
230/6V mains supply.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel mixer.
Presence detection sensor at the end of the spout optimises detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter on mixers.
Set detection distance, duty flush and launch thermal shocks manually.
Bluetooth® version: advanced settings and operating data download via DELABIE Connect app.
Suitable for people with reduced mobility.
30-year warranty.
230/6V mains supply.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel mixer.
Presence detection sensor at the end of the spout optimises detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter on mixers.
Set detection distance, duty flush and launch thermal shocks manually.
Bluetooth® version: advanced settings and operating data download via DELABIE Connect app.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £690.23
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial proliferation duty flush
Easy to configure & monitor operation

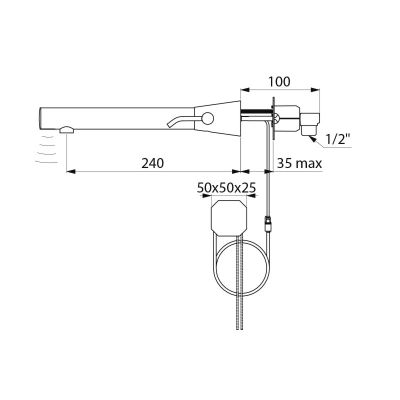

TECHNICAL CHARACTERISTICS
BINOPTIC MIX 2 electronic basin mixer
Ref. 484010ESupply | 230/6V mains supply |
Connector | M½" |
Technology | Electronic |
Spout length | 240mm |
Flow rate | 3 lpm |
Finish | Chrome-plated |
Certificates | |
Warranty |
VARIANTS
484010 | Chrome-plated: L.240mm, recessed supply M1/2" | £610.58 excl. VAT | |
---|---|---|---|
482010 | Chrome-plated: L.220mm, F3/8", stopcocks, for cross wall installation | £504.40 excl. VAT | |
48201015 | Chrome-plated: L.220mm, Ø 15mm compression fittings, cross wall | £514.33 excl. VAT | |
482110 | Chrome-plated: L.220mm, F3/8", for cross wall installation | £492.01 excl. VAT | |
484000 | Satin: L.240mm, for cross wall installation, M1/2" | £610.58 excl. VAT |
VARIANTS
484010 | Chrome-plated: L.240mm, recessed supply M1/2" | £610.58 excl. VAT | |
---|---|---|---|
482010 | Chrome-plated: L.220mm, F3/8", stopcocks, for cross wall installation | £504.40 excl. VAT | |
48201015 | Chrome-plated: L.220mm, Ø 15mm compression fittings, cross wall | £514.33 excl. VAT | |
482110 | Chrome-plated: L.220mm, F3/8", for cross wall installation | £492.01 excl. VAT | |
484000 | Satin: L.240mm, for cross wall installation, M1/2" | £610.58 excl. VAT |
