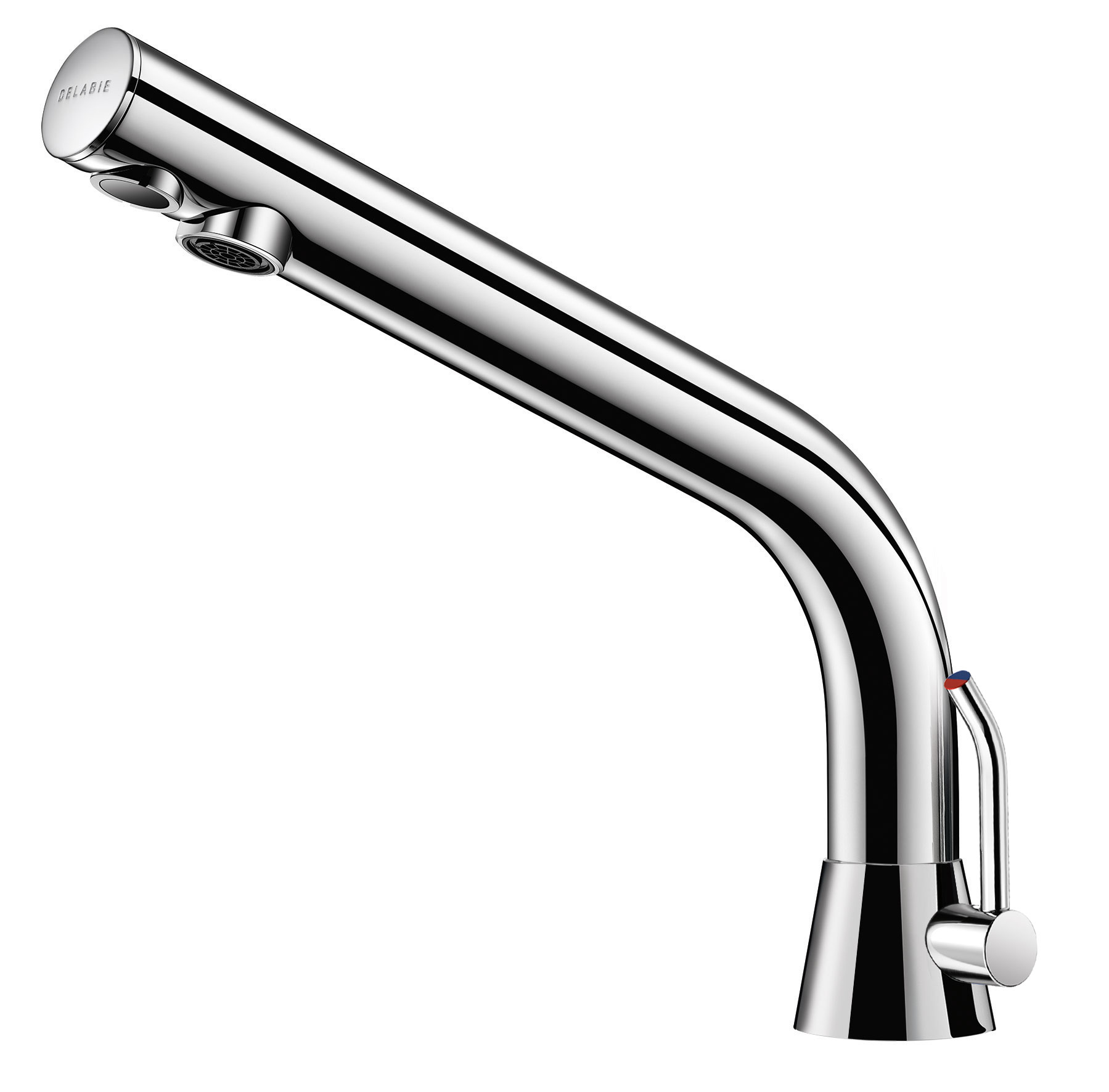

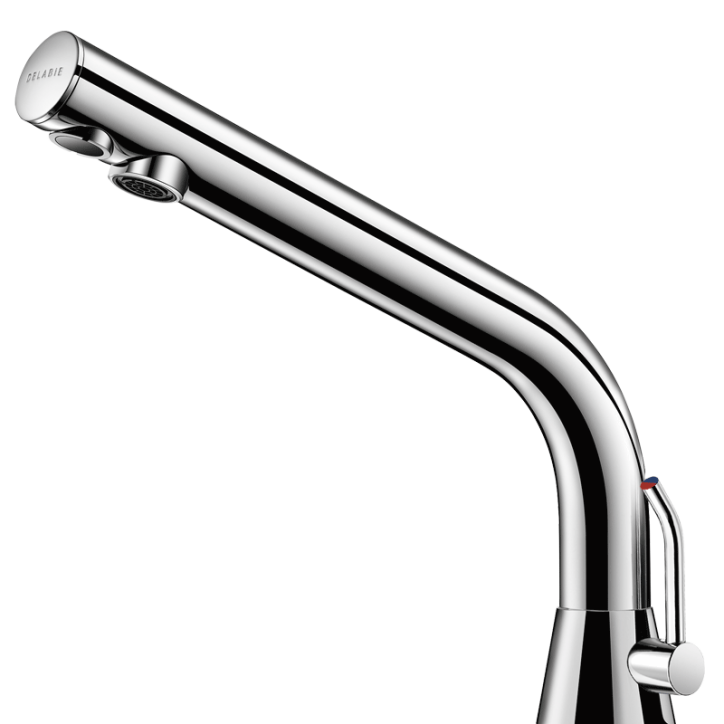

BINOPTIC MIX electronic mixer

Ref. 488MCHLH15
Battery-operated, Ø 15mm compression fittings
BINOPTIC MIX electronic mixer

Presentation

DESCRIPTION

BINOPTIC MIX electronic mixer

Ref. 488MCHLH15

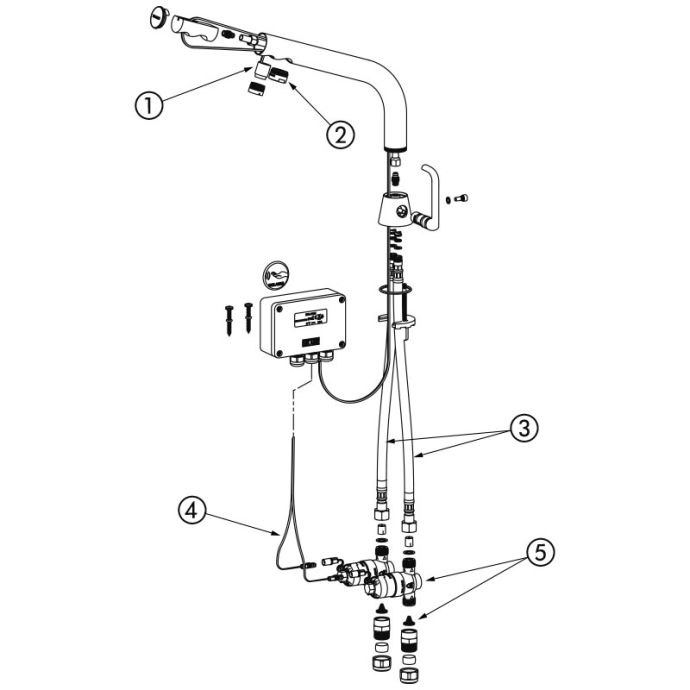

Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valve Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £704.65

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Rinçage périodique

Anti-bacterial duty flush

Maintenance aisée - Installation aisée

LED diagnostic aid

Characteristics

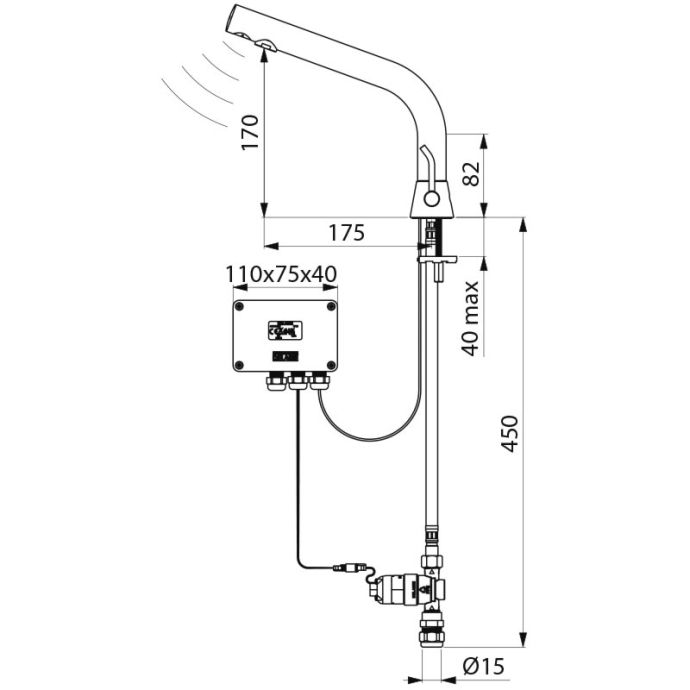

TECHNICAL CHARACTERISTICS

BINOPTIC MIX electronic mixer

Ref. 488MCHLH15
Supply 6V batteries
Connector M1/2'' Ø 15
Technology Electronic
Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC MIX electronic mixer

Ref. 488MCHLH15

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

388MCHLH15 Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings £595.71 excl. VAT
398MCHLH15 Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings £638.16 excl. VAT
498MCHLH15 Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings £747.12 excl. VAT
