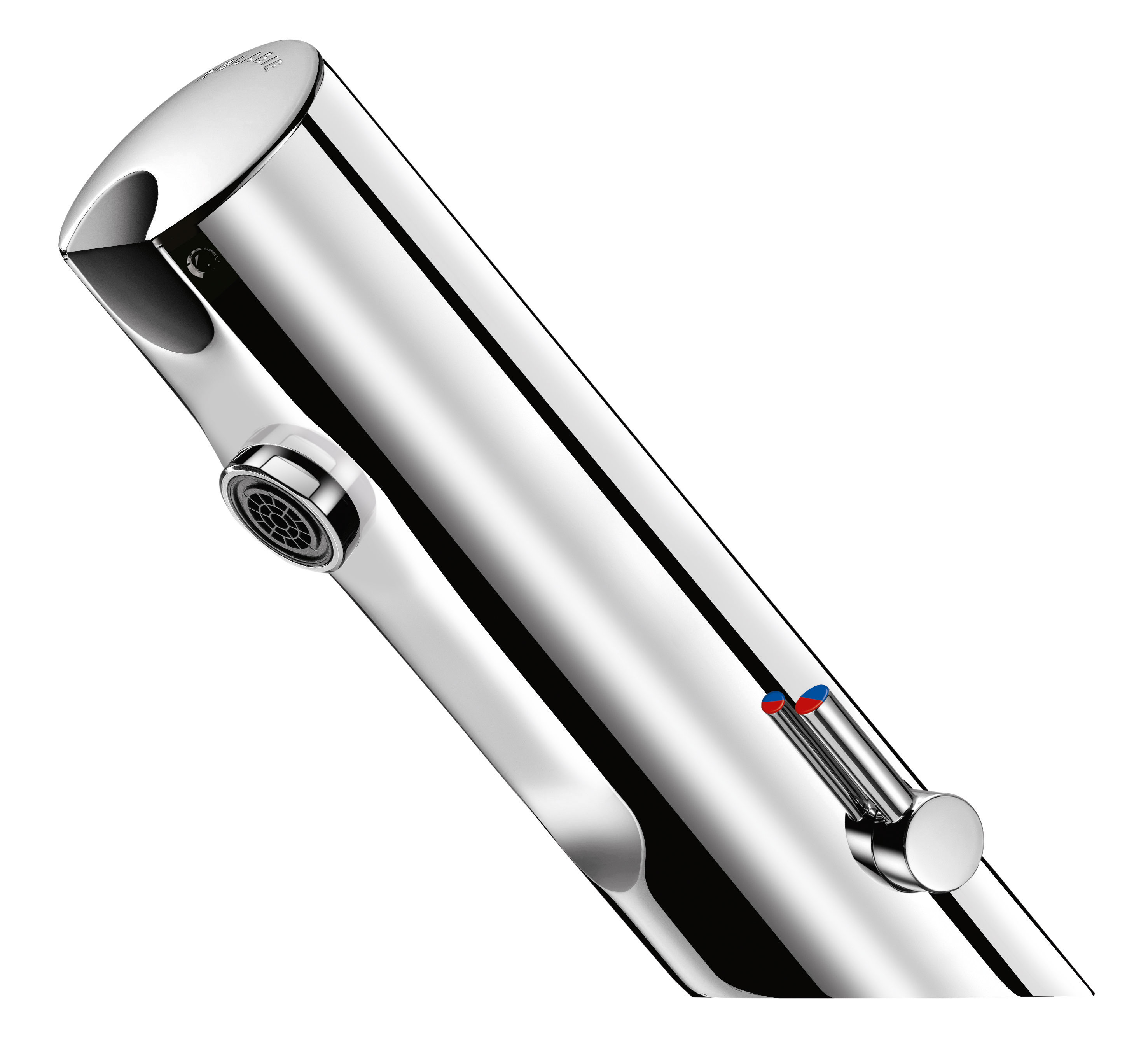

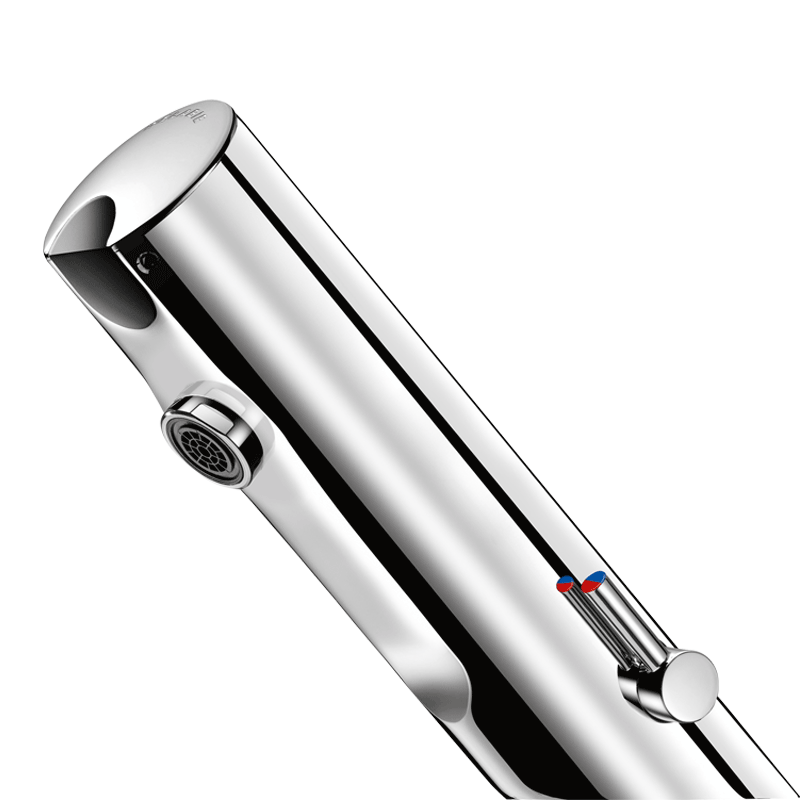

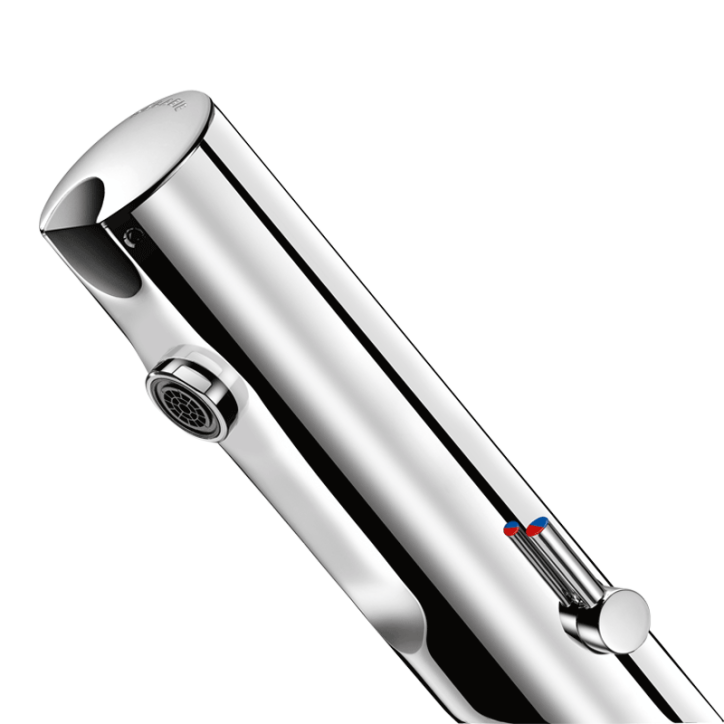

TEMPOMATIC MIX 4 electronic mixer

Ref. 49000015
Recessed mains supply, stopcocks Ø 15mm
TEMPOMATIC MIX 4 electronic mixer

Presentation

DESCRIPTION

TEMPOMATIC MIX 4 electronic mixer

Ref. 49000015
Deck-mounted electronic basin mixer:
230/6V recessed mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
PEX flexibles Ø 15mm for compression fittings with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £461.67

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Secteur

Recessed mains supply

Maintenance aisée - Installation aisée

Integrated solenoid valve

Characteristics

TECHNICAL CHARACTERISTICS

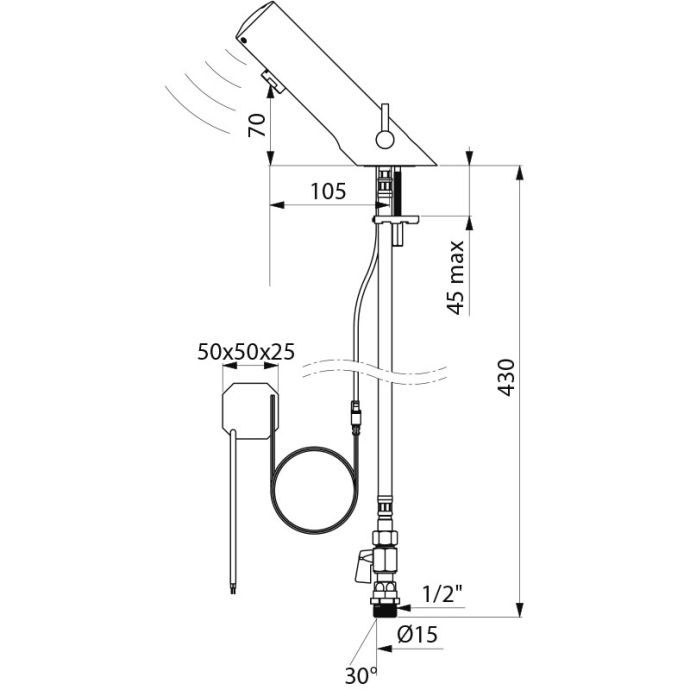

TEMPOMATIC MIX 4 electronic mixer

Ref. 49000015
Supply 230/6V mains supply (recessed)
Connector M1/2'' Ø 15mm
Technology Electronic
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates Logo CE
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur électronique TEMPOMATIC MIX 4

Ref. 49000015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

49000115 Mains supply, UK plug - standard lever - With stopcocks- Ø15mm £435.12 excl. VAT
49000615 Battery operated - standard lever - With stopcocks - Ø15mm £412.82 excl. VAT
49000615CO Battery operated - standard lever - Stopcocks - copper tails £498.03 excl. VAT
