DESCRIPTION

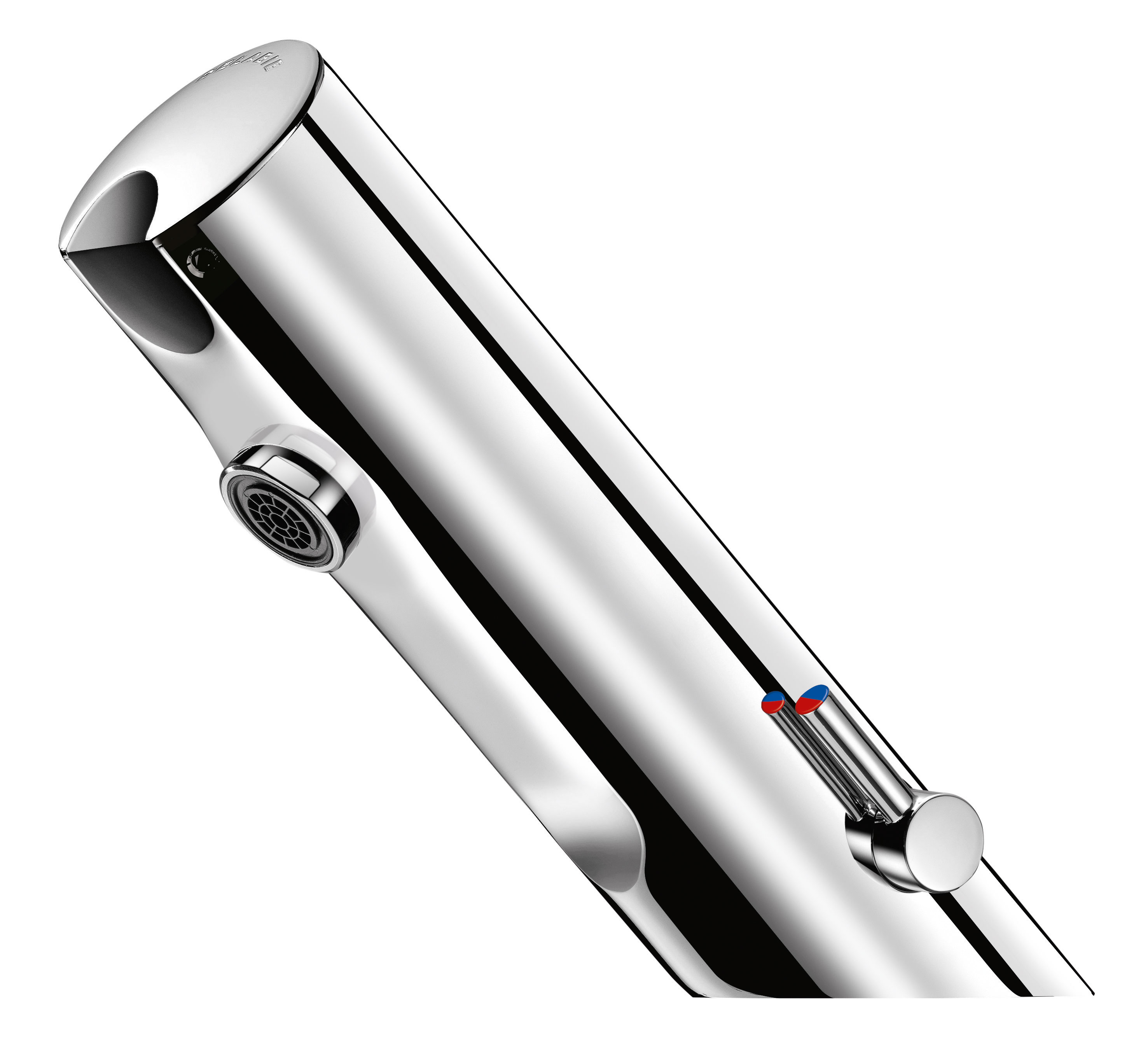

TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615Deck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
PEX flexibles Ø 15mm for compression fittings with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
PEX flexibles Ø 15mm for compression fittings with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £412.82
ADVANTAGES
![Economie d'eau](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
Exceptional water savings: 90%
![Sans contact manuel](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Hygiene: no manual contact
![Piles](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/4/0/3/3043-12-eng-US/pile.png)
Batteries integrated in mixer body
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Integrated solenoid valve
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615Supply | 6V batteries |
Connector | M½" Ø 15mm |
Technology | Electronic |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates |
![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615![](https://www.delabie.co.uk/var/site/storage/images/9/0/6/1/3241609-1-fre-FR/PD_49000615.jpg)
1. | 490446 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922024.2P |
|
ECO flow straightener |
4. | 700MCP |
|
Mixing key |
5. | 900010 |
|
Non-return valve |
6. | 60438.10P |
|
Conical filter |
7. | 825212 |
|
In-line STOP union |
VARIANTS
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | £461.67 excl. VAT | |
---|---|---|---|
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | £435.12 excl. VAT | |
49000615CO | Battery operated - standard lever - Stopcocks - copper tails | £498.03 excl. VAT |
VARIANTS
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | £461.67 excl. VAT | |
---|---|---|---|
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | £435.12 excl. VAT | |
49000615CO | Battery operated - standard lever - Stopcocks - copper tails | £498.03 excl. VAT |
