Floor trap

Ref. 683002UK
For soft or vinyl floors
Floor trap

Presentation

DESCRIPTION

Floor trap

Ref. 683002UK

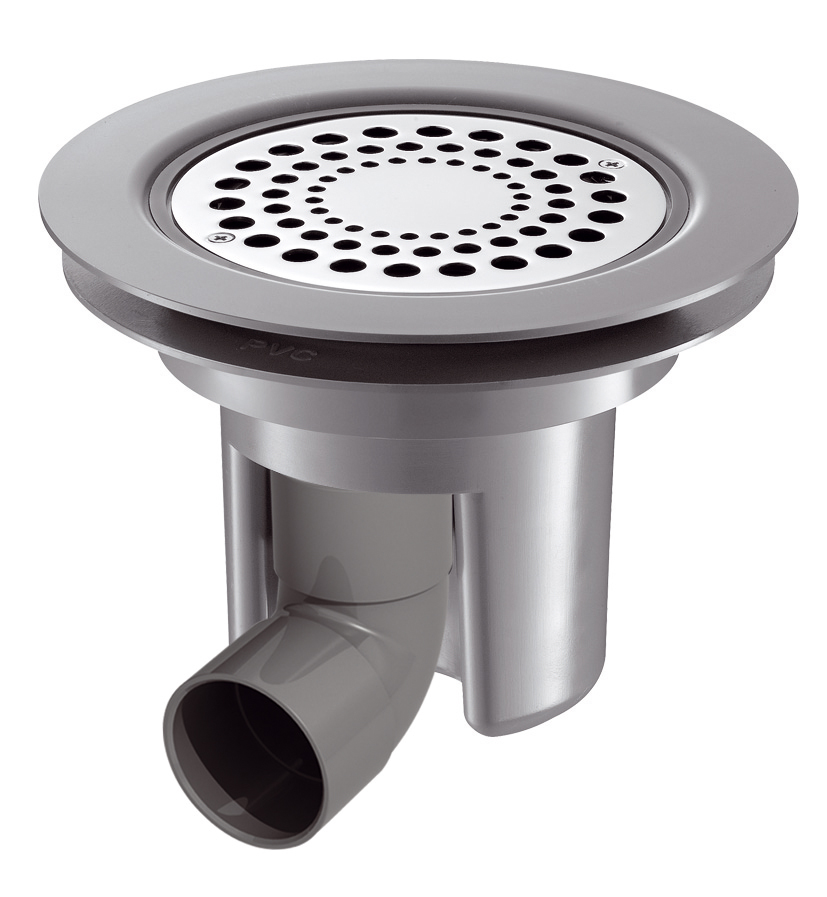

Adjustable height floor trap for soft or vinyl floors:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel grid Ø 114mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
Height adjusts up to 85mm with extension.
Grid fixed by two stainless steel screws.
30-year warranty.

2025 UK public price excluding VAT: £67.69

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adapted to floor type, adjustable height

Nettoyage aisé

Plunger with handle, body free of impurities

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 683002UK
Height 195mm max
Flow rate 36 lpm
Warranty 30-Year
Floor trap
Ref. 683002UK
