TEMPOFIX 3 frame system for urinals

Ref. 543006D
Steel frame system for urinals with flexible 1/2"
TEMPOFIX 3 frame system for urinals

Presentation

DESCRIPTION

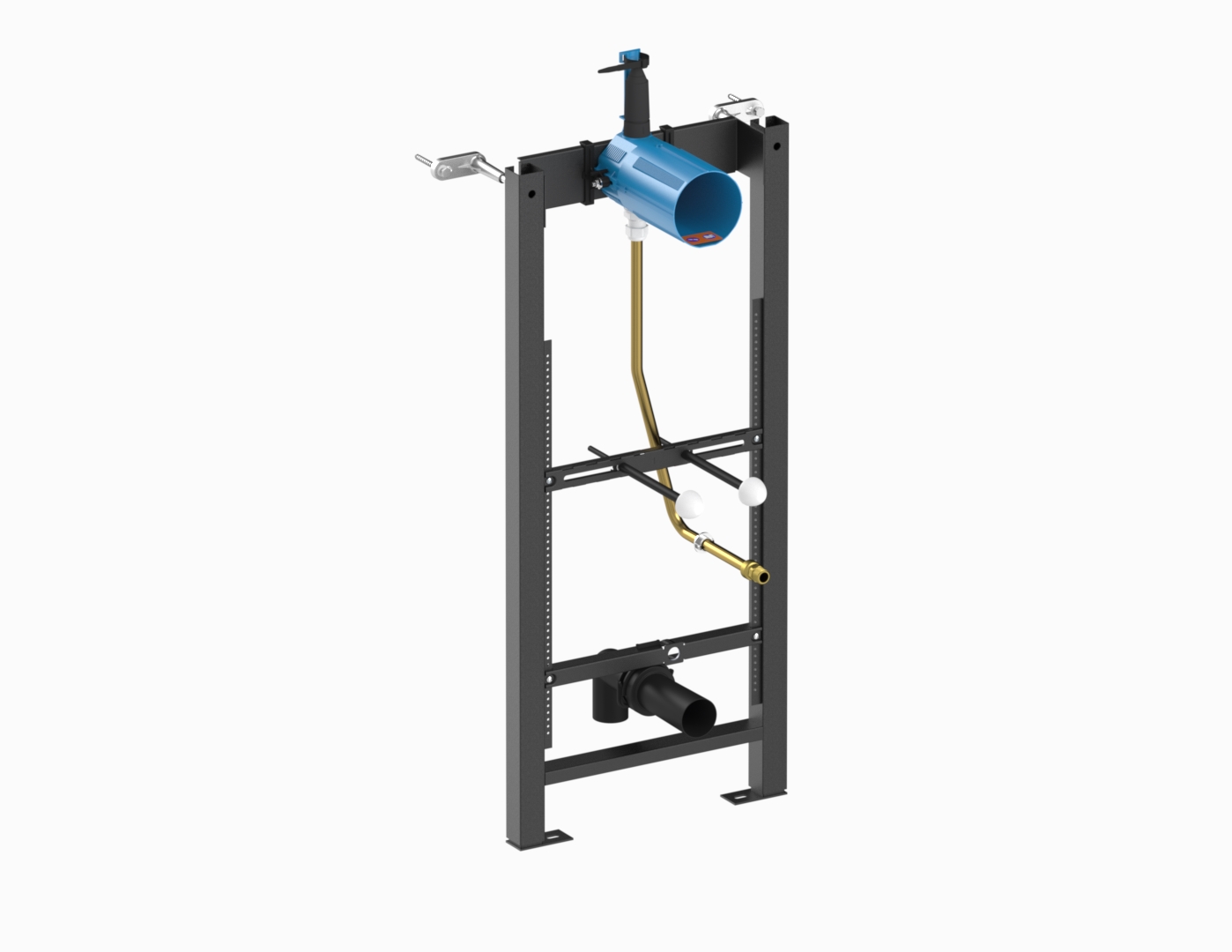

TEMPOFIX 3 frame system for urinals

Ref. 543006D
Frame system for urinal with flexible ½", kit ½:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 - 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal.
Tube with ½" brass connection for urinals with flexible inlet.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 - 120mm.
Supplied with recessed housing.
Valve configured for system flush, with accessories and connection protection..
30-year warranty.
Order with control plate references 430006, 430016, 430036, 778700 or 778707.

2024 UK public price excluding VAT: £517.67

ADVANTAGES

Maintenance aisée - Installation aisée

Easy and quick to install: supplied pre-mounted

Faible espacement au mur - Encombrement limité

Height and centres can be adjusted

Universel

Can be adjusted to wall thickness

Piles

Compatible with battery-operated electronic valves

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFIX 3 frame system for urinals

Ref. 543006D
Connector ½"
Height 985 - 1,385mm
Depth 160 - 220mm
Width 430mm
Finish Black powder-coated steel
Warranty 30-Year
TEMPOFIX 3 frame system for urinals
Ref. 543006D
