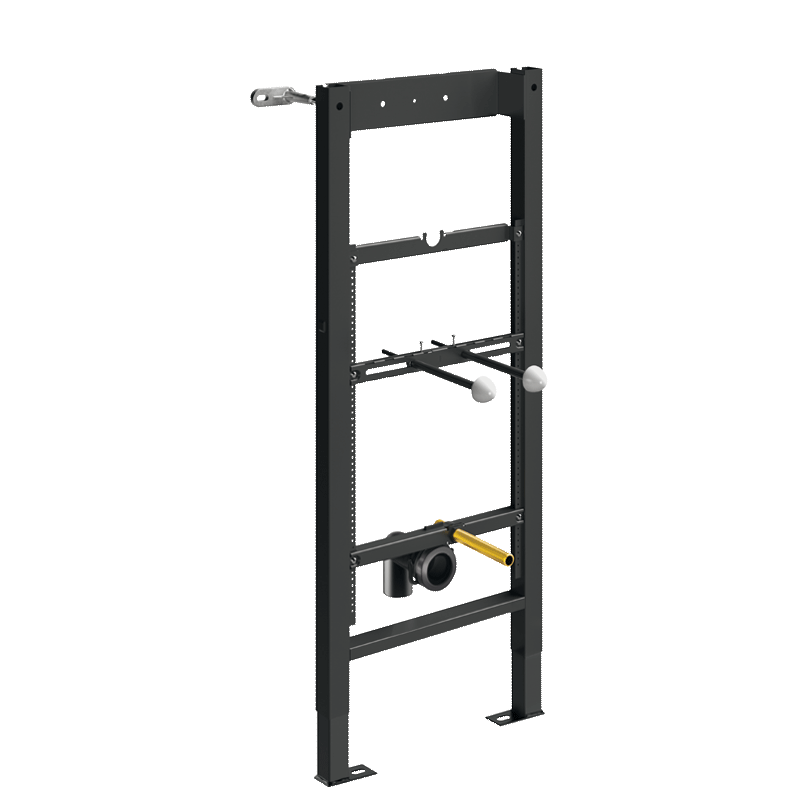

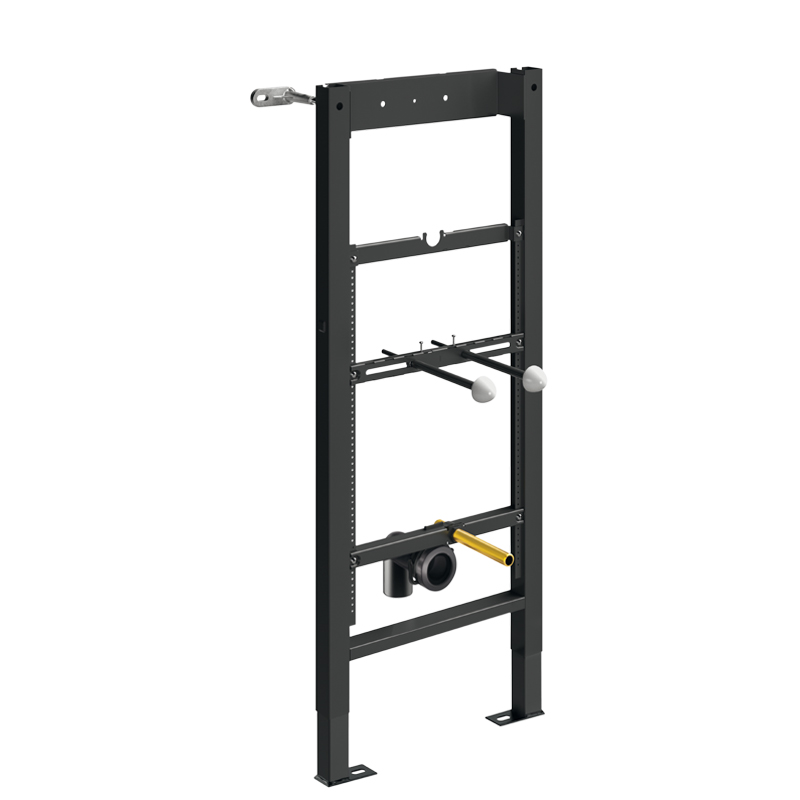

TEMPOFIX 3 frame system for urinals

Ref. 543130
For FINO and DELTACÉRAM urinals
TEMPOFIX 3 frame system for urinals

Presentation

DESCRIPTION

TEMPOFIX 3 frame system for urinals

Ref. 543130
Frame system for FINO and DELTACÉRAM urinals:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls, anchoring bolts supplied.
Adjustable bracket.
Frame height can be adjusted from 0 - 200mm.
Ø 50mm soil pipe with waterproof seal.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 - 110mm.
Compatible with HYBRIMATIC urinals (FINO or DELTACÉRAM).
Can also be used with any urinal on the market with flexible supply.
30-year warranty.

2024 UK public price excluding VAT: £403.10

ADVANTAGES

Maintenance aisée - Installation aisée

Quick and easy to install: supplied pre-assembled

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFIX 3 frame system for urinals

Ref. 543130

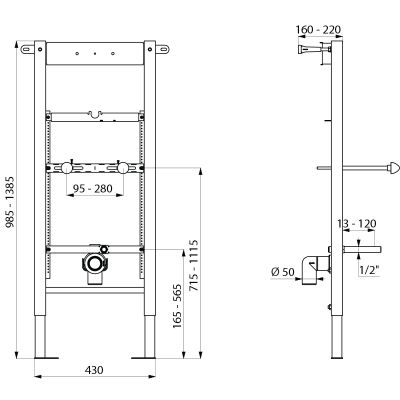

Height 985 - 1385mm
Depth 160 - 220mm
Width 430mm
Finish Black powder-coated
Warranty 30-Year
TEMPOFIX 3 frame system for urinals
Ref. 543130
