DESCRIPTION

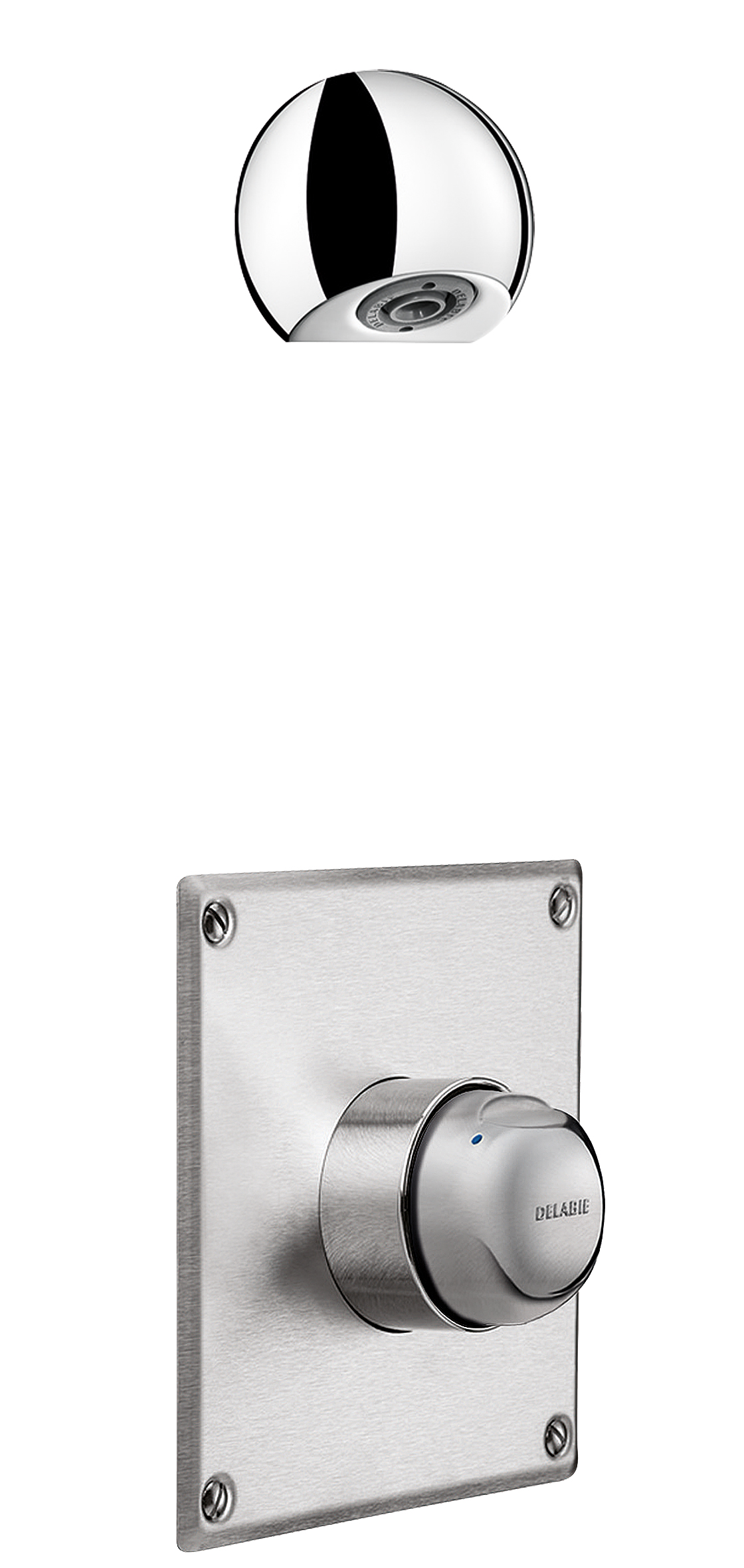

TEMPOMIX time flow shower kit
Ref. 790709Recessed time flow shower kit:
Stainless steel wall plate 160 x 160mm.
Standard recessing housing.
Recessing depth can be adjusted from 28 to 48mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
M½" connections for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
Stainless steel wall plate 160 x 160mm.
Standard recessing housing.
Recessing depth can be adjusted from 28 to 48mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
M½" connections for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
2024 UK public price excluding VAT: £435.62
ADVANTAGES
![Economie d'eau](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
80% water savings
![Anti-vandalisme](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Wall recessed installation
![Endurance - Fiabilité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Time flow system tested to over 500,000 operations
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch operation

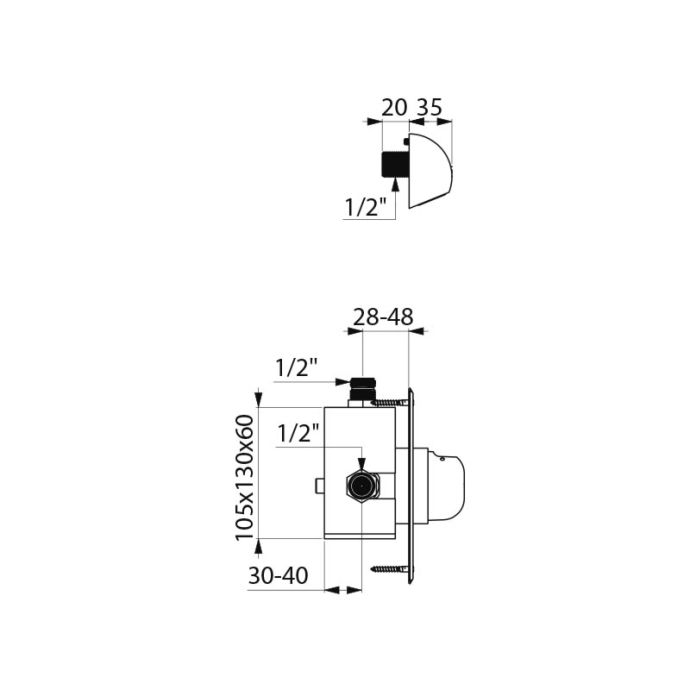

TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower kit
Ref. 790709Connector | ½" |
Technology | Time flow |
Height | 160mm |
Width | 160mm |
Flow rate | 6 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
