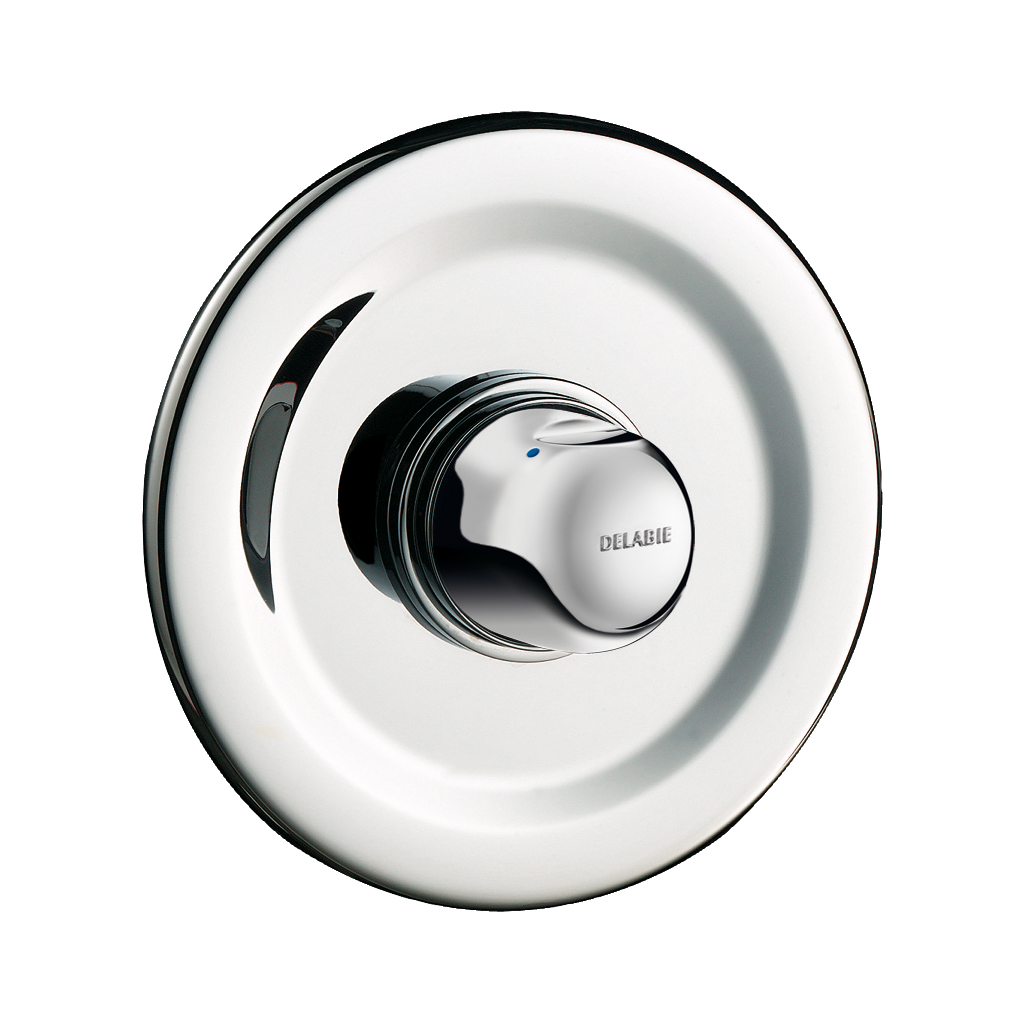

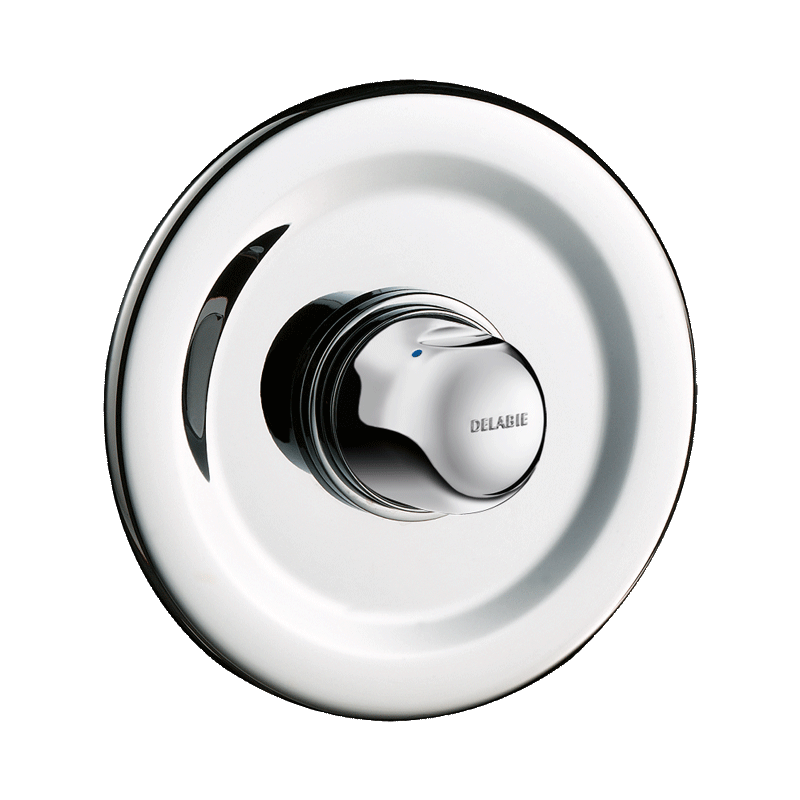

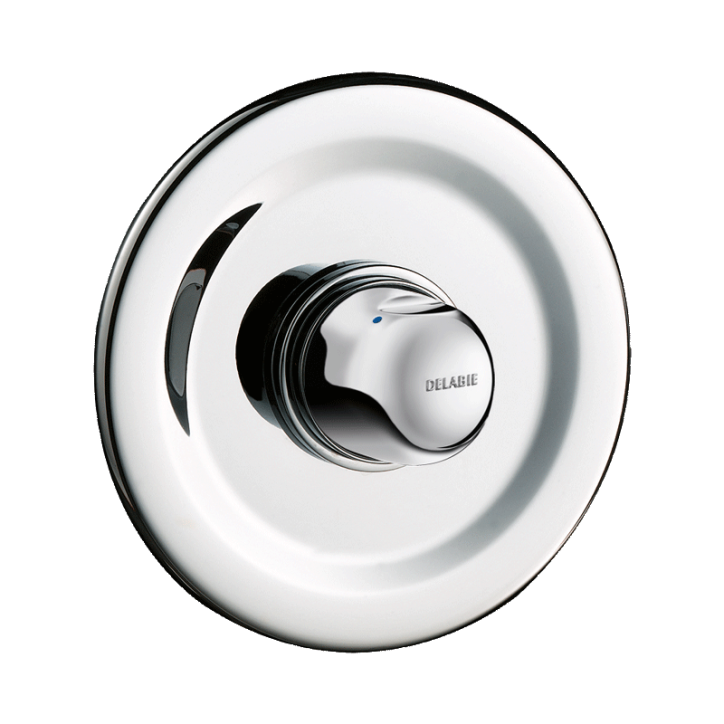

TEMPOMIX time flow shower mixer

Recessed time flow shower mixer:

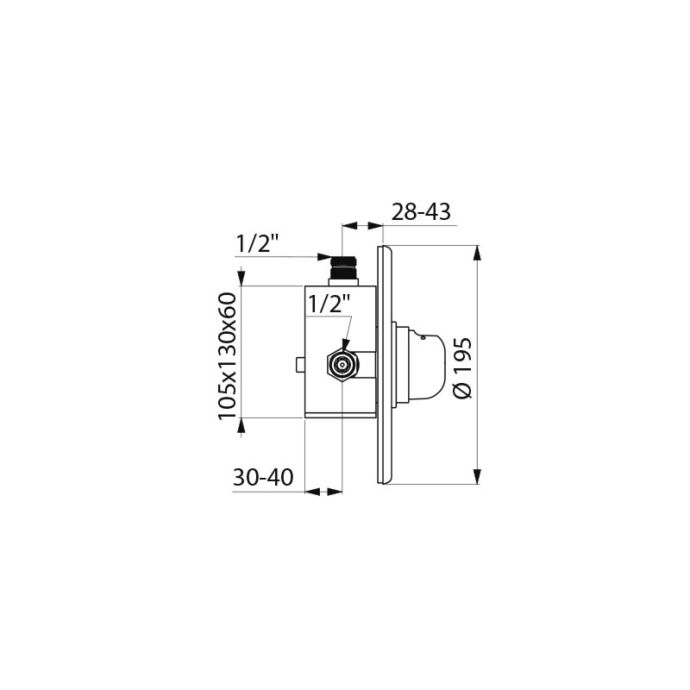

Chrome-plated metal wall plate Ø 195mm.
Standard recessing housing.
Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar.
M½" connectors for Ø 14mm copper tubes.
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
