DESCRIPTION

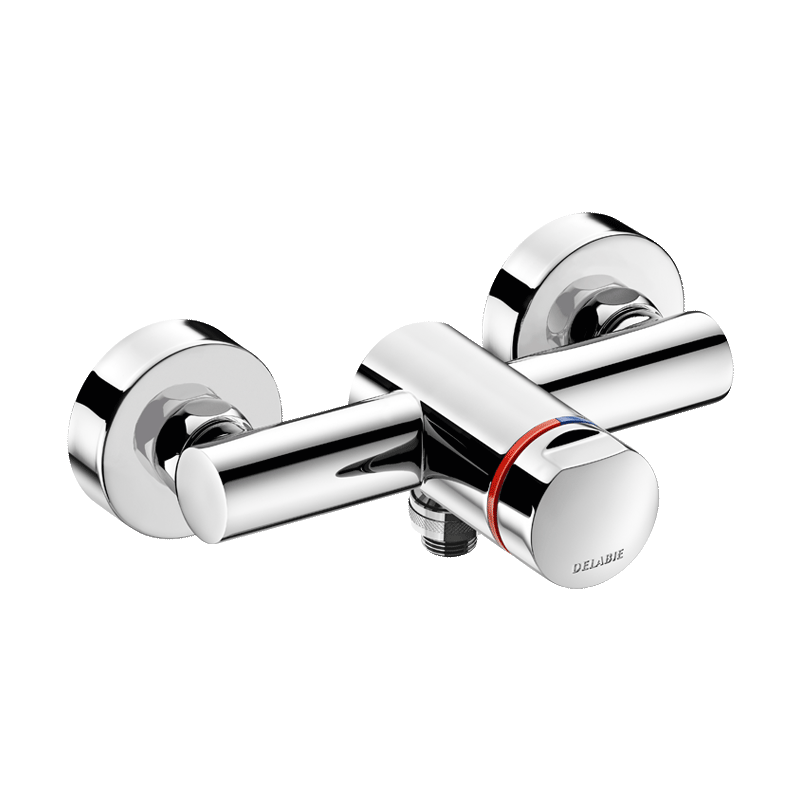

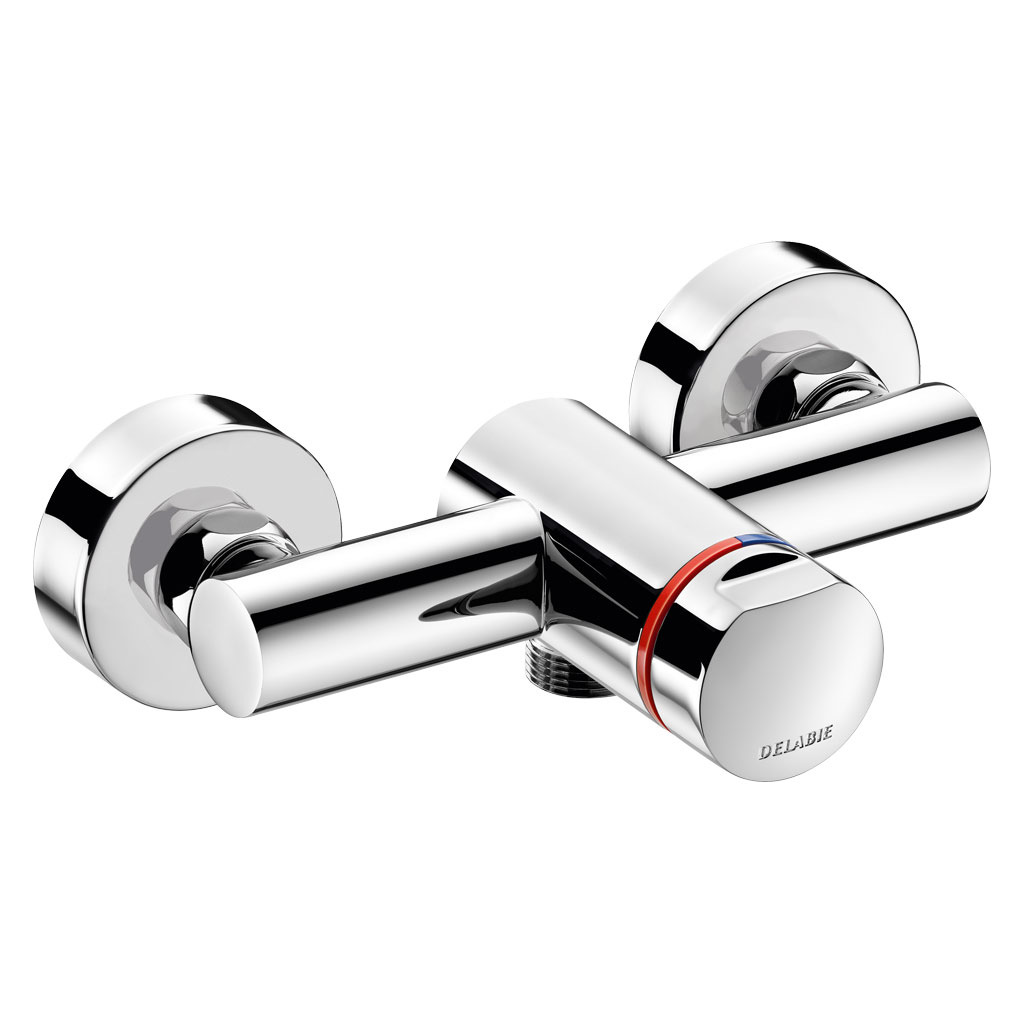

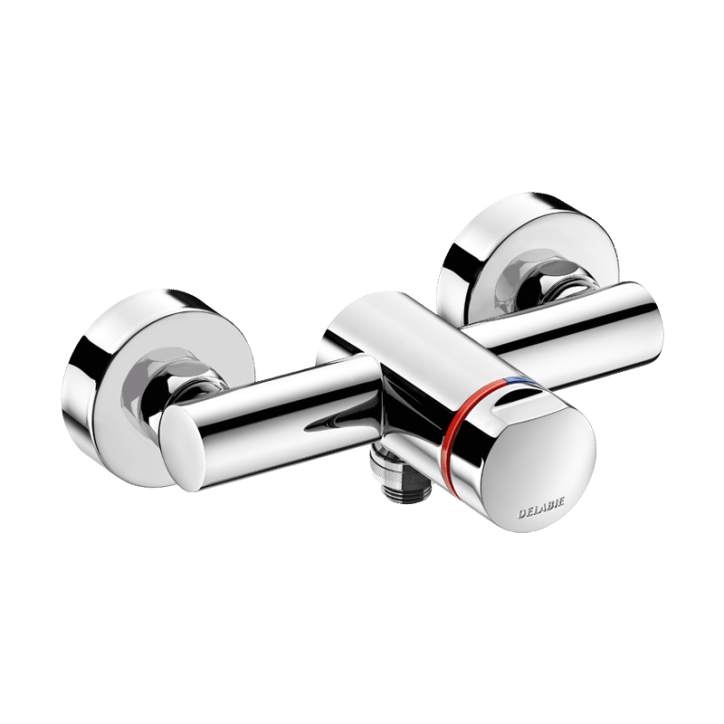

TEMPOMIX 3 time flow shower mixer
Ref. 794470Exposed time flow shower mixer:
TEMPOMIX 3 single control mixer, bottom outlet, M½" inlet with M¾ connector.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
For wall-mounted, exposed installation.
Soft-touch operation.
Time flow pre-set at ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted from 6 lpm - 12 lpm.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M½" offset connectors for 130 - 170mm centres.
Suitable for people with reduced mobility.
30-year warranty.
TEMPOMIX 3 single control mixer, bottom outlet, M½" inlet with M¾ connector.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
For wall-mounted, exposed installation.
Soft-touch operation.
Time flow pre-set at ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted from 6 lpm - 12 lpm.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M½" offset connectors for 130 - 170mm centres.
Suitable for people with reduced mobility.
30-year warranty.
2025 UK public price excluding VAT: £318.07
ADVANTAGES

Soft-touch operation

Time flow system tested to over 500,000 operations

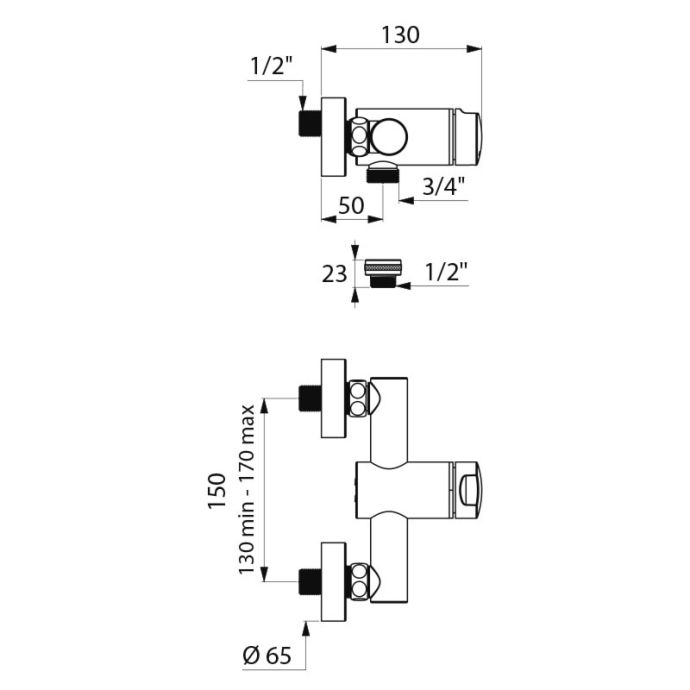

TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow shower mixer
Ref. 794470Connector | M½" |
Technology | Time flow |
Width | 150mm |
Flow rate | 9 lpm |
Certificates |
![]() ![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
794400 | Top outlet, inlet M½" and outlet M¾" | £310.66 excl. VAT |
---|
VARIANTS
794400 | Top outlet, inlet M½" and outlet M¾" | £310.66 excl. VAT |
---|
