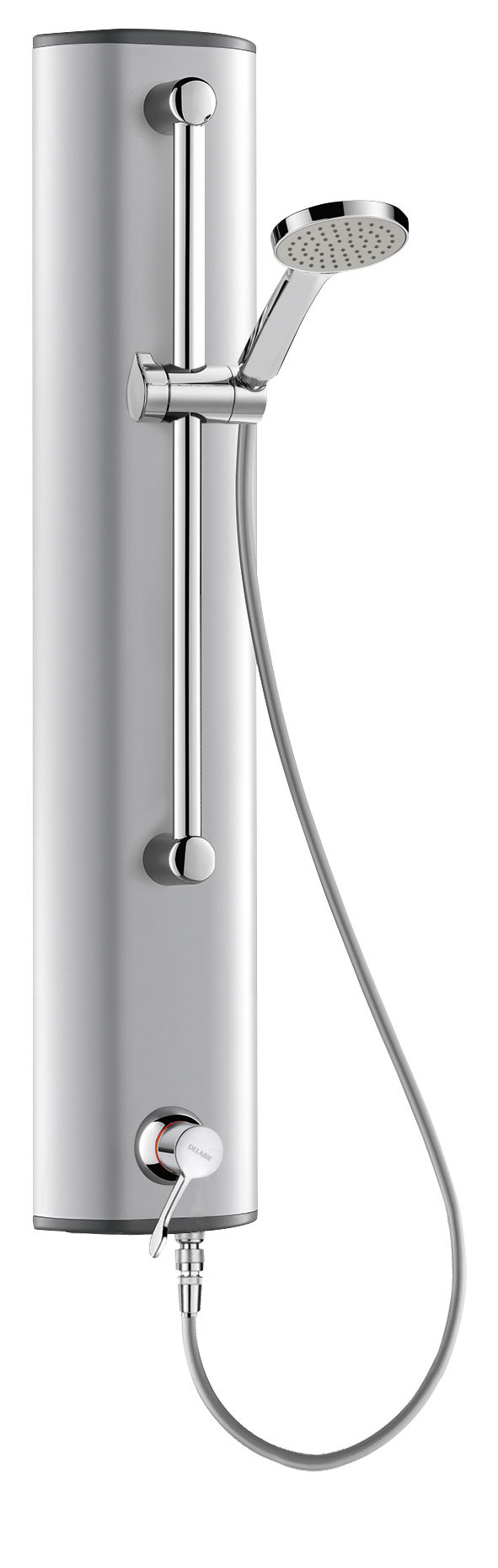

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H9635
Sequential thermostatic

Presentation

DESCRIPTION

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H9635

Anodised aluminium shower panel for wall-mounted, exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings
Filters.
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £816.32

ADVANTAGES

Sequential: opens/closes with cold water

No non-return valves on inlets

SECURITHERM: optimal anti-scalding safety

Thermostatic: total temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H9635

Supply	Concealed, via M1/2" flexible
Connector	M1/2"
Technology	Sequential thermostatic SECURITHERM
Height	1045mm
Width	210mm
Flow rate	9 lpm
Temperature limiter	39°C
Finish	Aluminium
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H9635

To download one or several documents linked to this product, please select the type of file you require :

Product sheet without price

Product sheet with price

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

Installation guide

Certificates

Spare parts

SPARE PARTS

Aluminium shower panel with SECURITHERM sequential mixer

Ref. H9635

1.	815	Chrome-plated single jet shower head M1/2"
2.	4110P	Sliding shower head holder for shower rails, Ø 25mm and 32mm, bright
3.	60212.10P	Flat filter
4.	836T1	SILVER flexible shower hose
5.	N963	Thermostatic cartridge for shower mixers
6.	826115	Back-nut
7.	807792	Push-fit rapid STOP connector
