DESCRIPTION

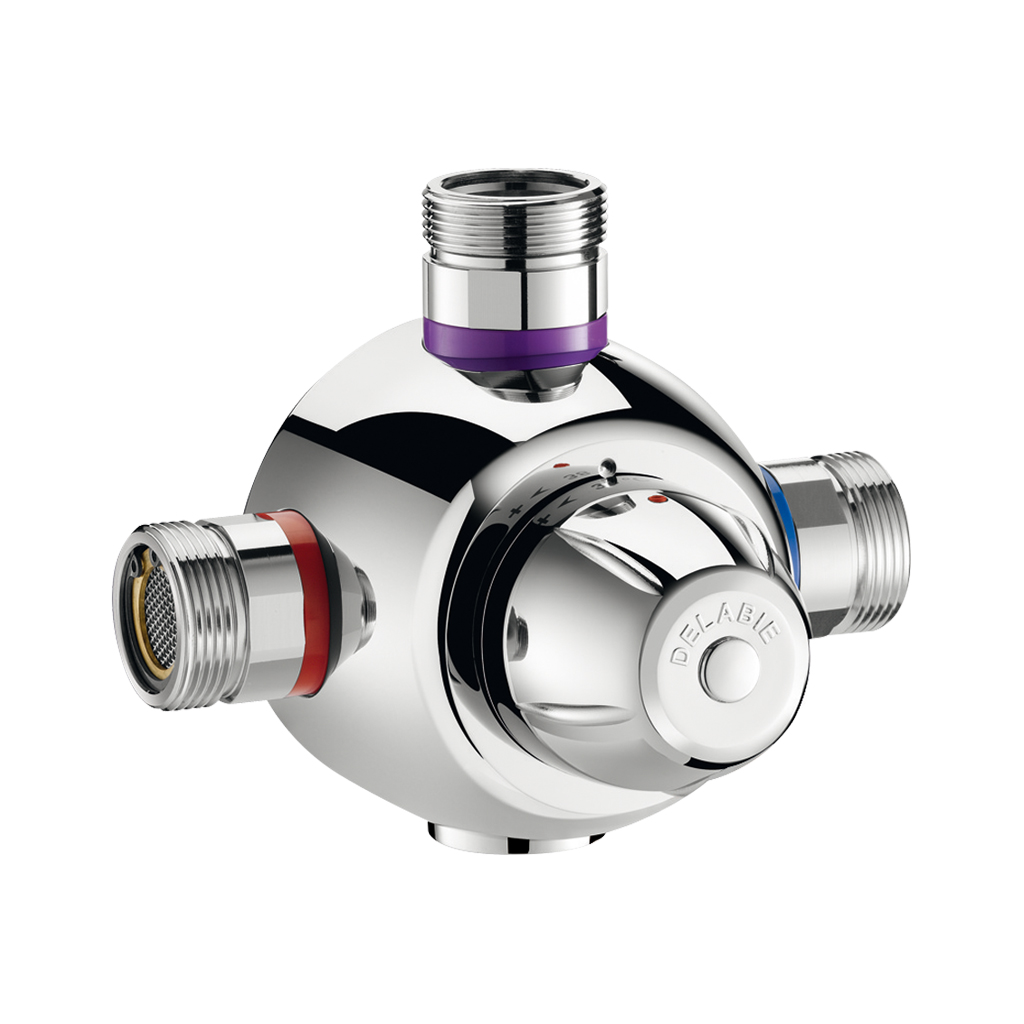

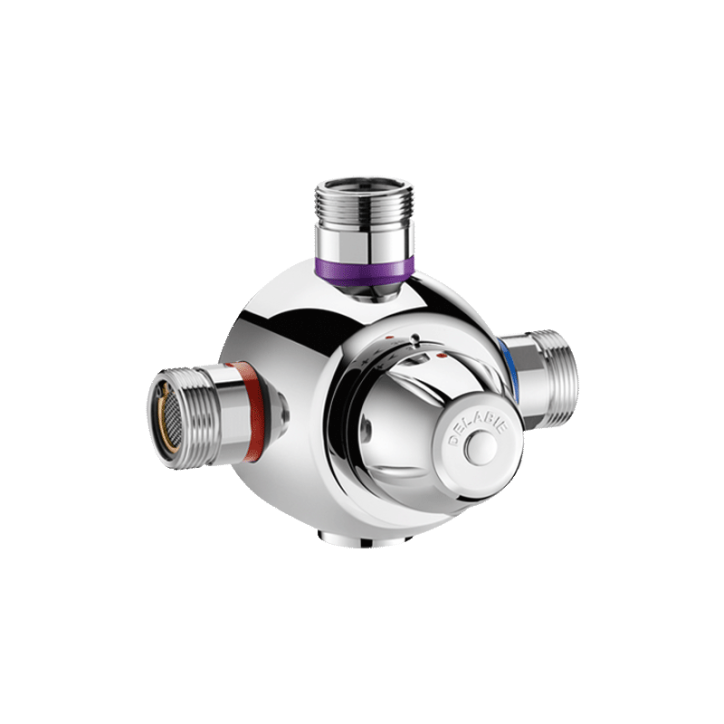

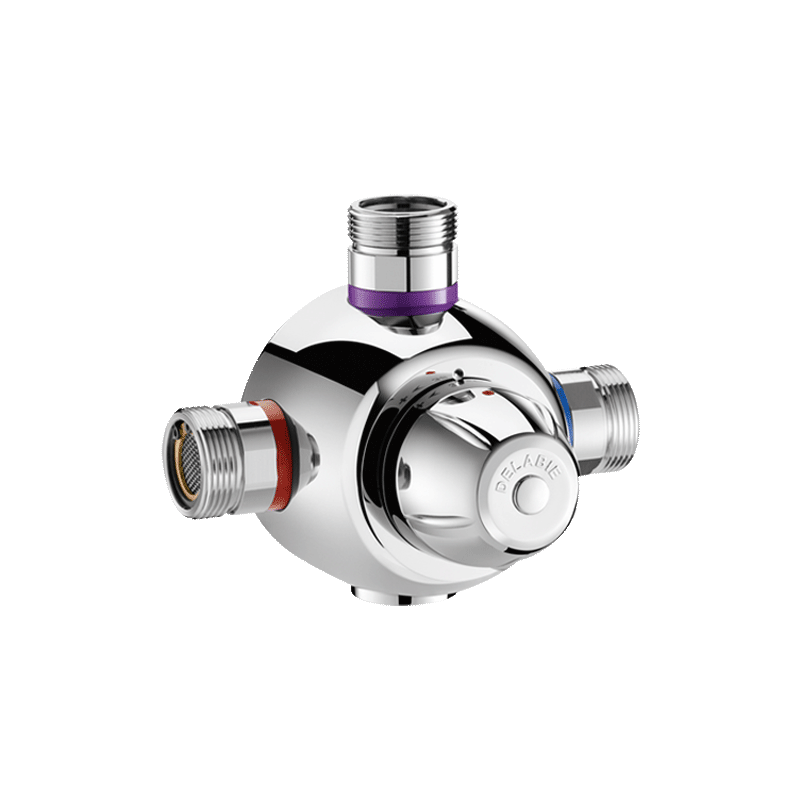

PREMIX COMFORT Group thermostatic mixing valve
Ref. 731004Group thermostatic mixing valve for mixed water from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1¼".
30-year warranty.
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1¼".
30-year warranty.
2024 UK public price excluding VAT: £1,360.67
ADVANTAGES
Automatic shut-off if cold water supply fails
Temperature stability
Accessible filters and non-return valves
Thermo-reactive cell
TECHNICAL CHARACTERISTICS
PREMIX COMFORT Group thermostatic mixing valve
Ref. 731004Connector | M1¼" |
Technology | Thermostatic |

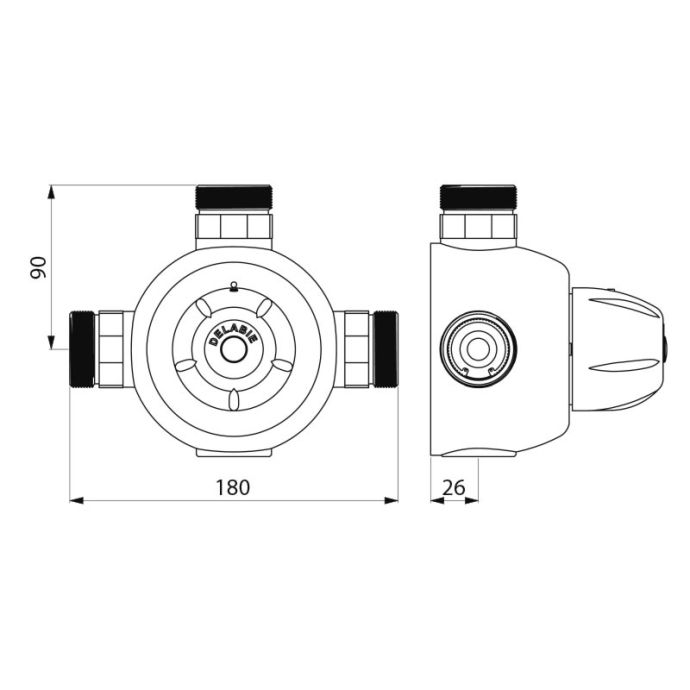

Height | 90mm |
Depth | 26mm |
Length | 180mm |
Flow rate | 140 lpm |
Certificates | |
Warranty |
VARIANTS
731002 | 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm | £611.54 excl. VAT | |
---|---|---|---|
731003 | 90 lpm - M1" - Dimensions: 160 x 80 x 23mm | £947.89 excl. VAT | |
731005 | 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm | £1,758.16 excl. VAT | |
731200 | 55 lpm - M3/4" - Dimensions: 120 x 81 x 18mm | £611.54 excl. VAT | |
731300 | 90 lpm - M1" - Dimensions: 146 x 95 x 23mm | £947.89 excl. VAT | |
731400 | 140 lpm - M1 1/4" - Dimensions: 180 x 107 x 26mm | £1,360.67 excl. VAT | |
731500 | 190 lpm - M1 1/4" - Dimensions: 218 x 129 x 26mm | £1,758.16 excl. VAT |
VARIANTS
731002 | 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm | £611.54 excl. VAT | |
---|---|---|---|
731003 | 90 lpm - M1" - Dimensions: 160 x 80 x 23mm | £947.89 excl. VAT | |
731005 | 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm | £1,758.16 excl. VAT | |
731200 | 55 lpm - M3/4" - Dimensions: 120 x 81 x 18mm | £611.54 excl. VAT | |
731300 | 90 lpm - M1" - Dimensions: 146 x 95 x 23mm | £947.89 excl. VAT | |
731400 | 140 lpm - M1 1/4" - Dimensions: 180 x 107 x 26mm | £1,360.67 excl. VAT | |
731500 | 190 lpm - M1 1/4" - Dimensions: 218 x 129 x 26mm | £1,758.16 excl. VAT |
