DESCRIPTION

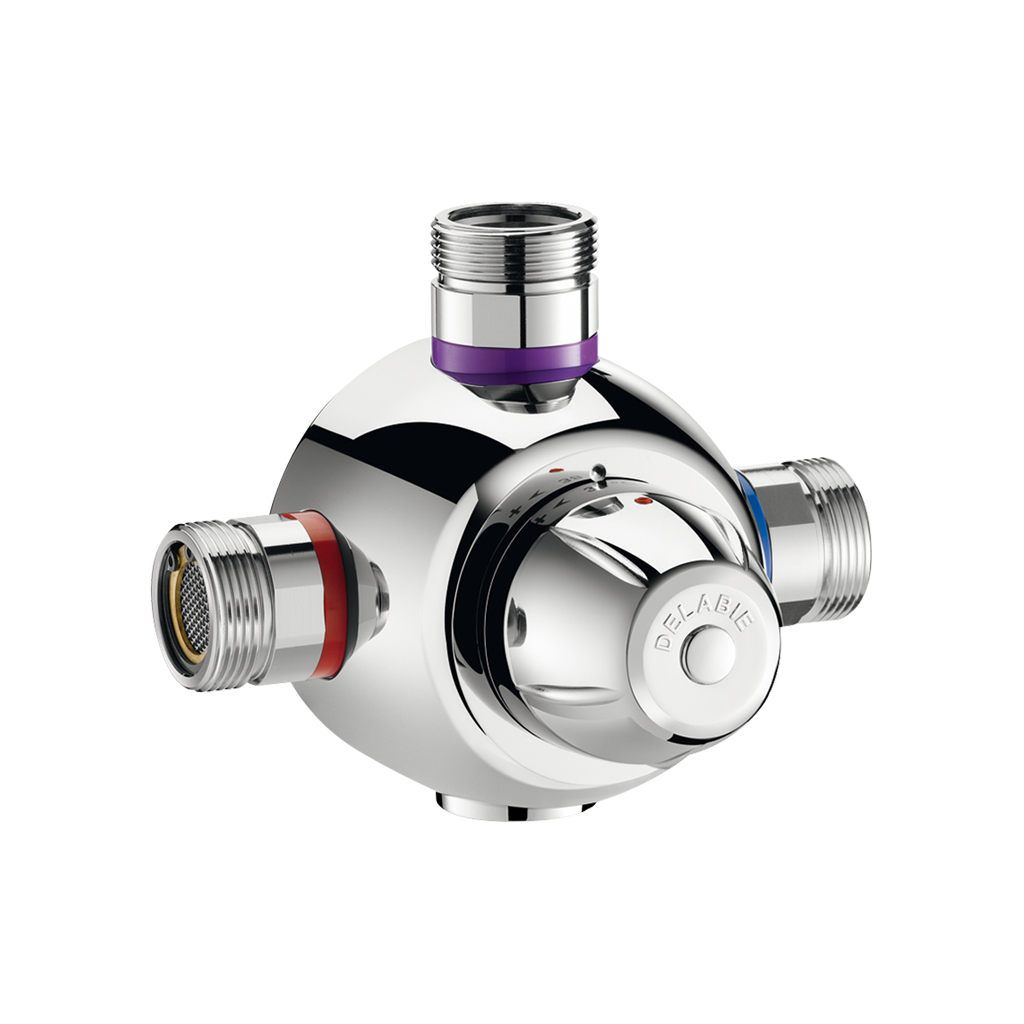

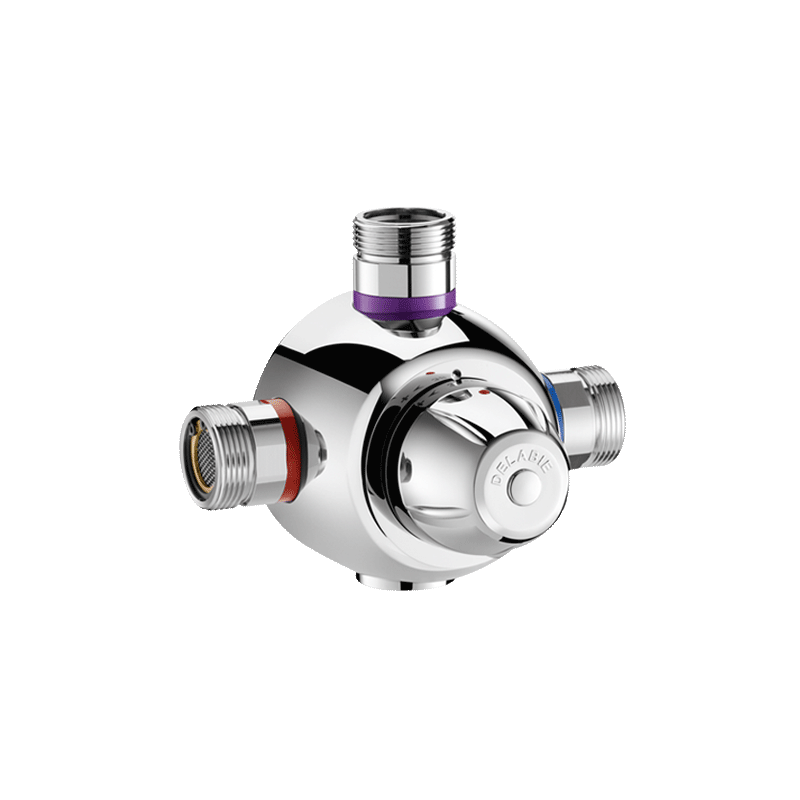

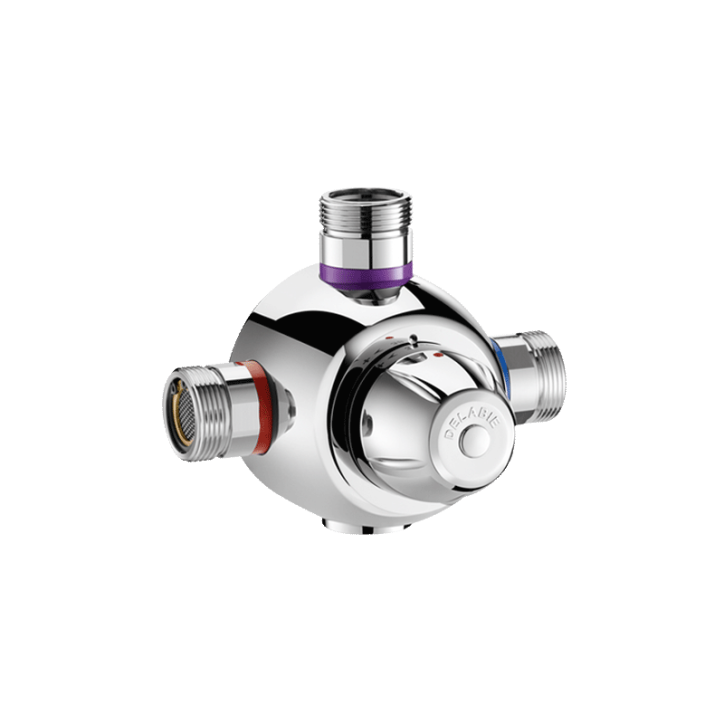

PREMIX COMFORT Group thermostatic mixing valve
Ref. 731300Group thermostatic mixing valve for mixed water from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
30-year warranty.
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermo-reactive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
30-year warranty.
2024 UK public price excluding VAT: £947.89
ADVANTAGES
![Sécurité anti-brûlure](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Automatic shut-off if cold water supply fails
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Temperature stability
![Maintenance aisée - Installation aisée](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Accessible filters and non-return valves
![Endurance - Fiabilité](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Thermo-reactive cell
TECHNICAL CHARACTERISTICS
PREMIX COMFORT Group thermostatic mixing valve
Ref. 731300Connector | M1" |
Technology | Thermostatic |

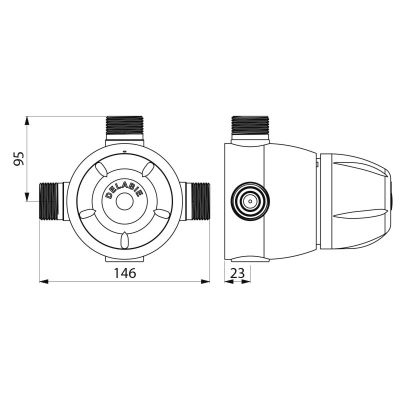

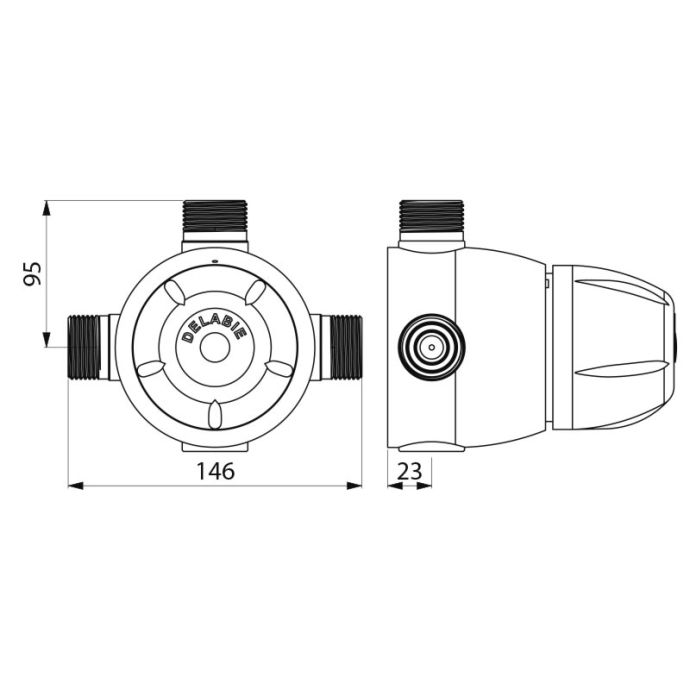

Height | 95mm |
Depth | 23mm |
Length | 146mm |
Flow rate | 90 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
731002 | 55 lpm - M3/4" - Dimensions: 120 x 60 x 18mm | £611.54 excl. VAT | |
---|---|---|---|

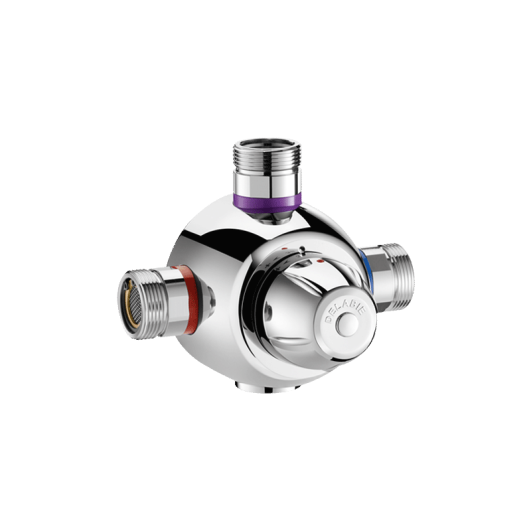

731003 | 90 lpm - M1" - Dimensions: 160 x 80 x 23mm | £947.89 excl. VAT | |
731004 | 140 lpm - M1 1/4" - Dimensions: 180 x 90 x 26mm | £1,360.67 excl. VAT | |
731005 | 190 lpm - M1 1/2" - Dimensions: 195 x 98 x 26mm | £1,758.16 excl. VAT | |
731200 | 55 lpm - M3/4" - Dimensions: 120 x 81 x 18mm | £611.54 excl. VAT | |
731400 | 140 lpm - M1 1/4" - Dimensions: 180 x 107 x 26mm | £1,360.67 excl. VAT | |
731500 | 190 lpm - M1 1/4" - Dimensions: 218 x 129 x 26mm | £1,758.16 excl. VAT |
