TEMPOMIX 3 time flow mixer

Ref. 794000
Soft-touch operation, stopcocks
See variants See variants
TEMPOMIX 3 time flow mixer +

Presentation

DESCRIPTION

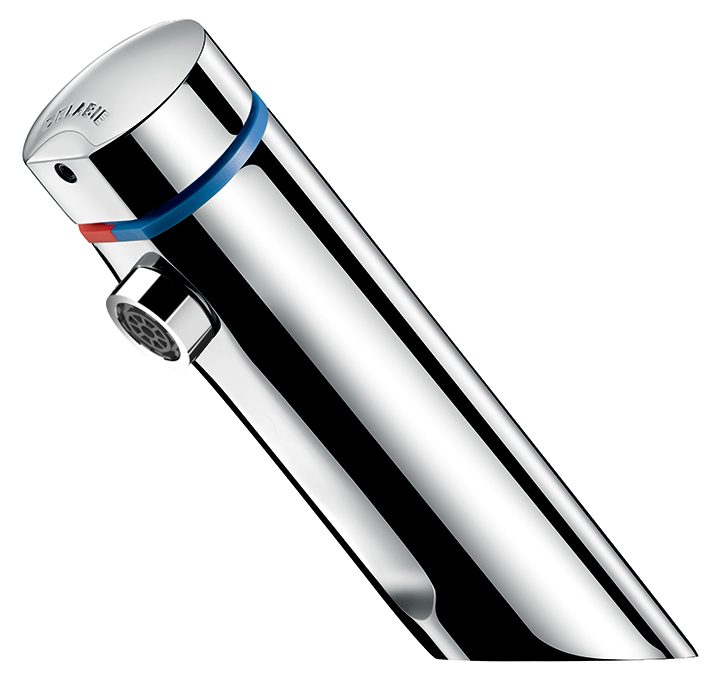

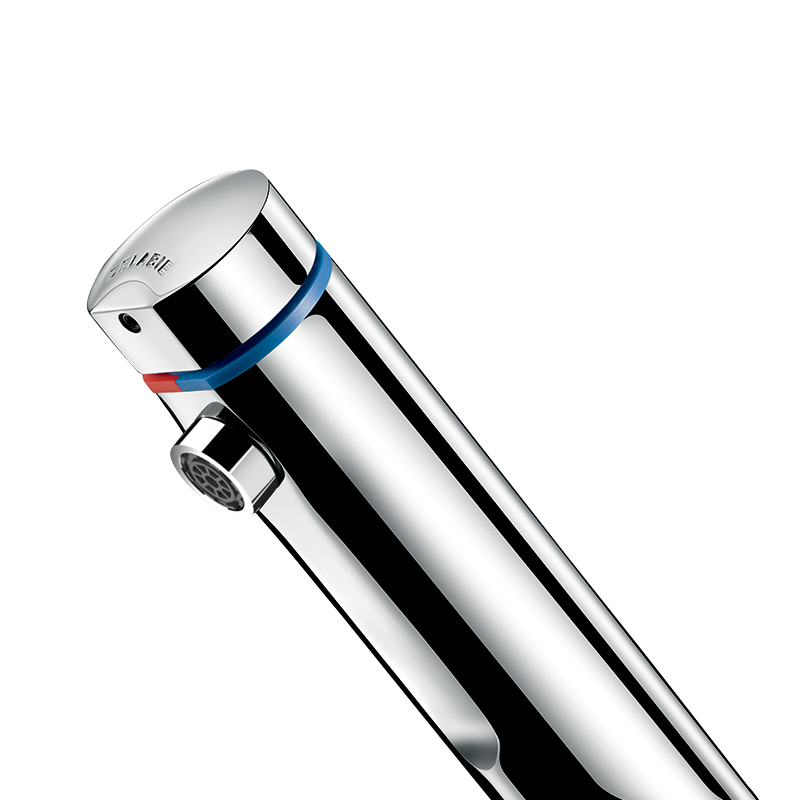

TEMPOMIX 3 time flow mixer

Ref. 794000
Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated metal body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

2025 UK public price excluding VAT: £275.36

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Anti-vandalisme

Sleek lines

Design

Sleek design

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow mixer

Ref. 794000

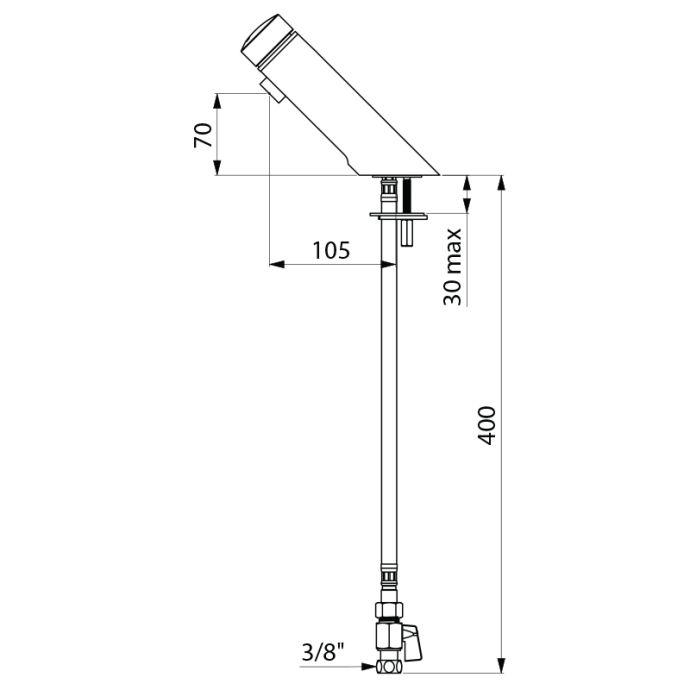

Connector F3/8"
Technology Time flow
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates ACS Logo Belgaqua Logo PZH Logo WRAS Logo DoP
Warranty 30-Year
Repairability
TEMPOMIX 3 time flow mixer
Ref. 794000

Downloads

DOWNLOADS

TEMPOMIX 3 time flow mixer

Ref. 794000

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

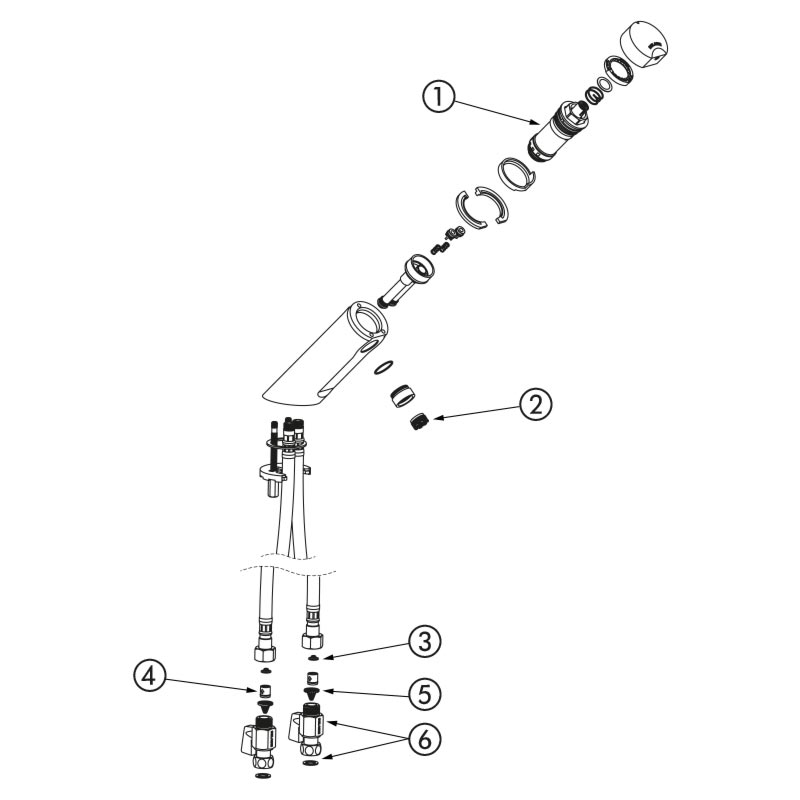

SPARE PARTS

TEMPOMIX 3 time flow mixer

Ref. 794000
1. 743794

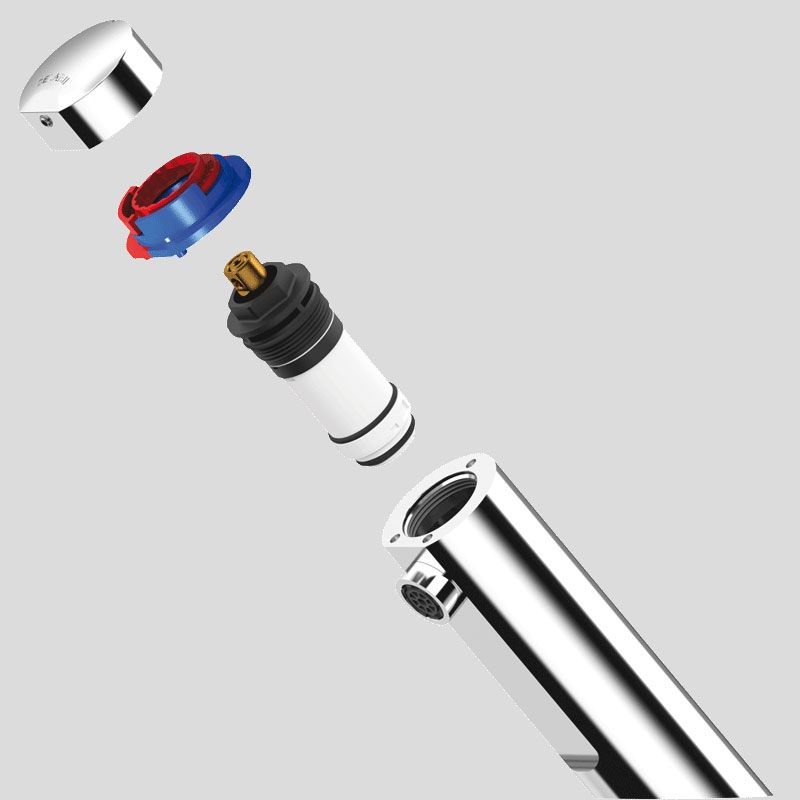

Time flow cartridge
2. 60438.10P
Conical filter
3. 900010
Non-return valve
4. 825212
In-line STOP union

VARIANTS

79400015 With stopcocks - Ø15mm compression fittings £278.78 excl. VAT
794100 With stopcock £263.89 excl. VAT
79400015CO With copper tails - stopcocks - Ø 15mm compression fittings £389.47 excl. VAT
794000AB Anti-blocking - with stopcock £292.57 excl. VAT
79400015AB Anti-blocking - with stopcock - Ø 15mm compression fittings £292.43 excl. VAT
794100AB Anti-blocking - without stopcocks £281.10 excl. VAT
