DESCRIPTION

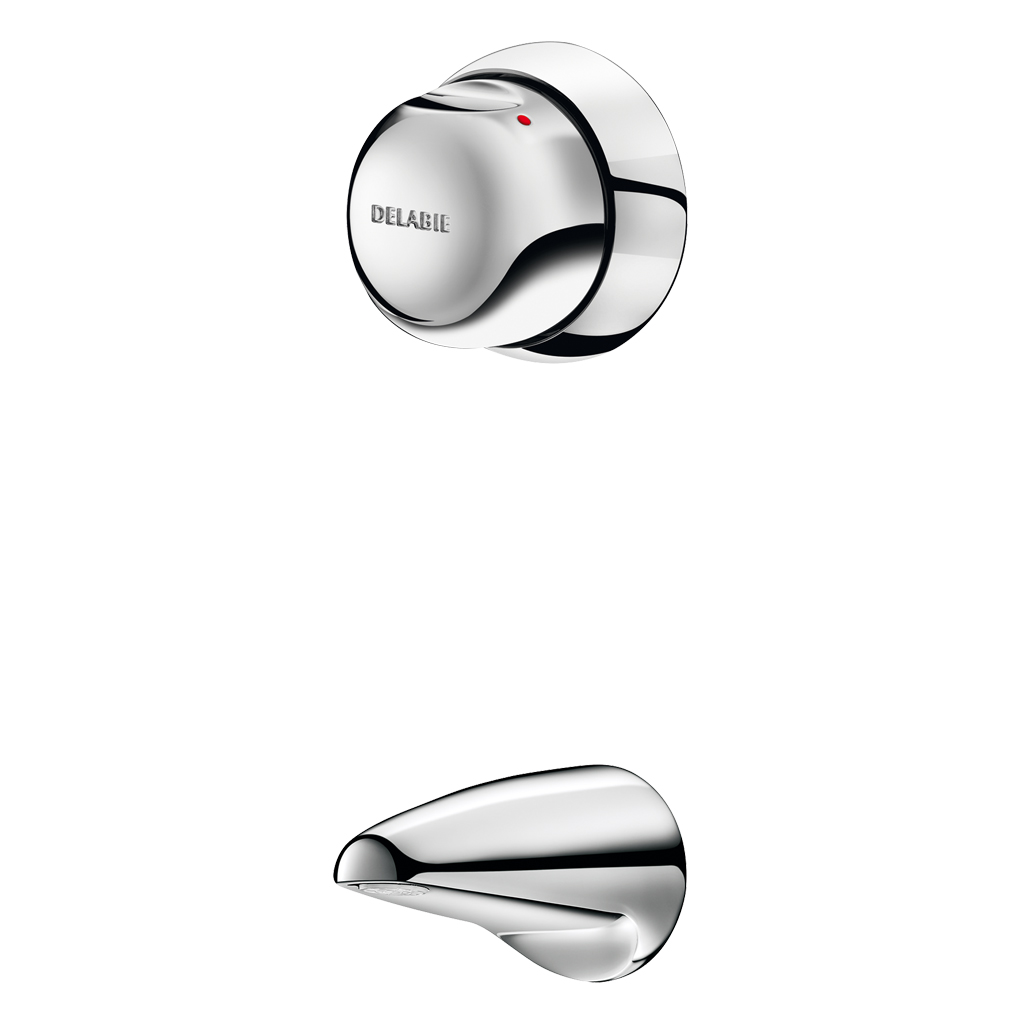

TEMPOMIX time flow mixer
Ref. 795209Cross wall single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated solid brass body M¾".
Filters and non-return valves.
Adjustable maximum temperature limiter.
Tamperproof cross wall control ≤ 220mm.
Tamperproof fixed cross wall spout ≤ 230mm.

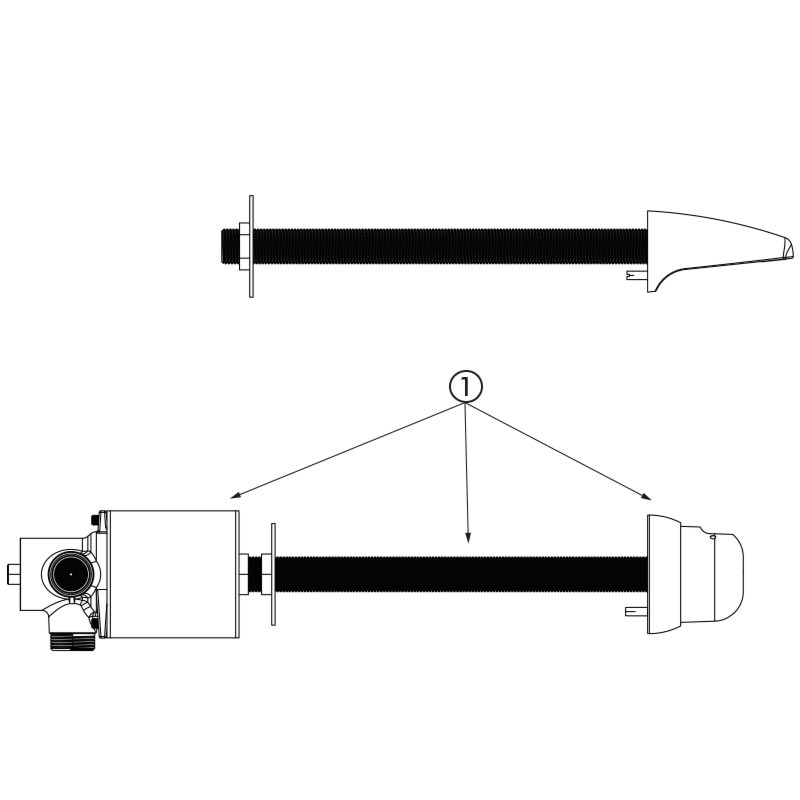

System for fixing to the wall via anti-rotating pin, back-nut and connection clamp.
Threaded rods can be cut-to-size.
Chrome-plated metal control.
30-year warranty.
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated solid brass body M¾".
Filters and non-return valves.
Adjustable maximum temperature limiter.
Tamperproof cross wall control ≤ 220mm.
Tamperproof fixed cross wall spout ≤ 230mm.
System for fixing to the wall via anti-rotating pin, back-nut and connection clamp.
Threaded rods can be cut-to-size.
Chrome-plated metal control.
30-year warranty.
2024 UK public price excluding VAT: £466.54
ADVANTAGES
Exceptional water savings: 85%
Soft-touch operation
Solid brass, installation behind partition
Temperature selection
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow mixer
Ref. 795209Connector | M¾" |
Technology | Time flow |
Length | 230mm |
Spout length | 75mm |
Flow rate | 3 lpm |
Certificates | |
Warranty |
