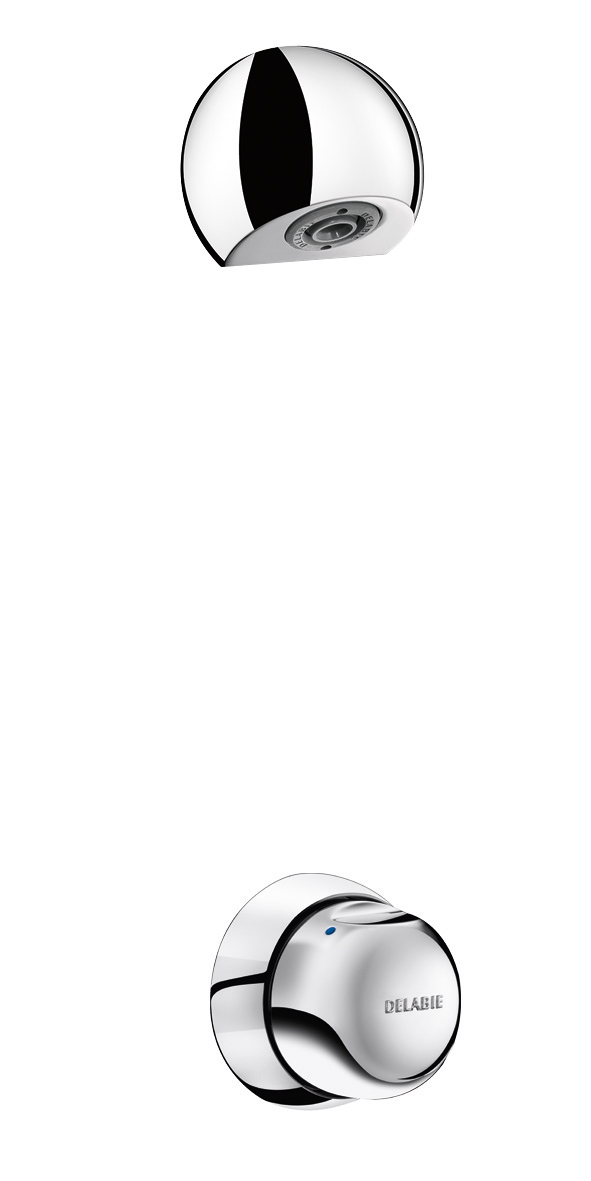

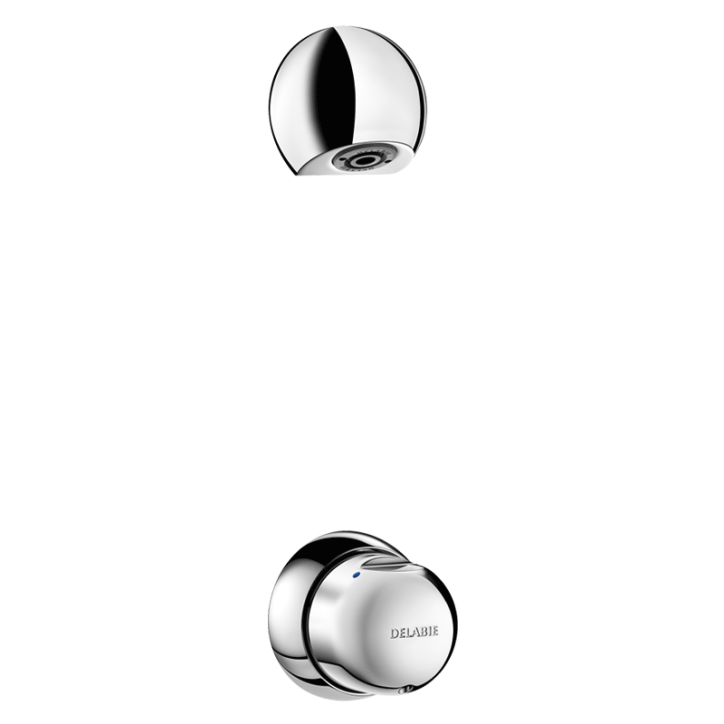

TEMPOMIX time flow shower kit

Ref. 796209
Single control time flow
TEMPOMIX time flow shower kit

Presentation

DESCRIPTION

TEMPOMIX time flow shower kit

Ref. 796209
Time flow shower kit for cross wall installation:
TEMPOMIX ¾" single control mixer.
For walls ≤ 220mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (adjustable by the installer).
Ligature-resistant collar.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated ROUND shower head, tamperproof with scale-resistant nozzle and automatic flow rate regulation.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Integrated non-return valves and filters.
Threaded rods can be cut-to-size.
30-year warranty.

2024 UK public price excluding VAT: £495.82

ADVANTAGES

Economie d'eau

80% water savings

Anti-vandalisme

Cross wall installation

Endurance - Fiabilité

System tested to over 500,000 operations

Maintenance aisée - Installation aisée

Maintenance outside of the area of use

Characteristics

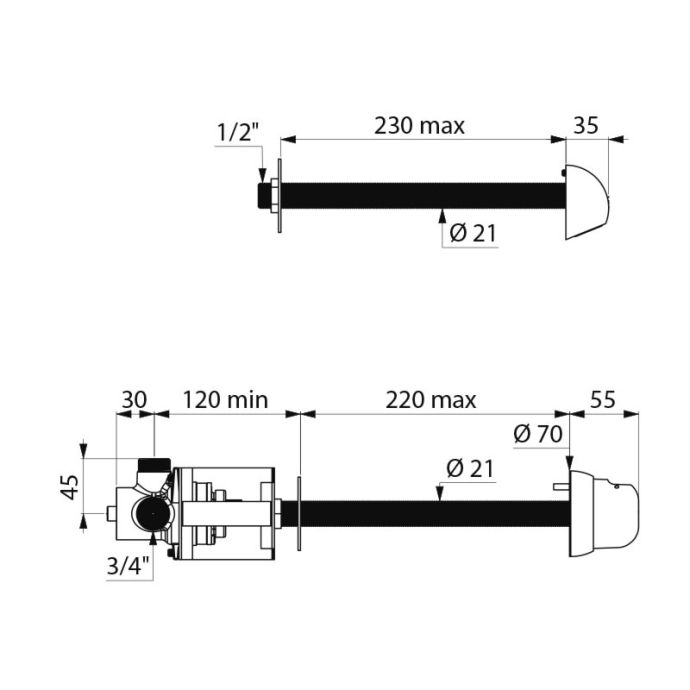

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower kit

Ref. 796209
Connector ¾"
Technology Time flow
Length 220mm
Flow rate 6 lpm
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX time flow shower kit

Ref. 796209

To download one or several documents linked to this product, please select the type of file you require :
