Mirror Soap Water Air

T E C H N I C A L D E S C R I P T I O N

4 FUNCTION MIRROR CABINET
MIRROR, SOAP DISPENSER, TAP AND HAND DRYER
OR PAPER TOWEL DISPENSER

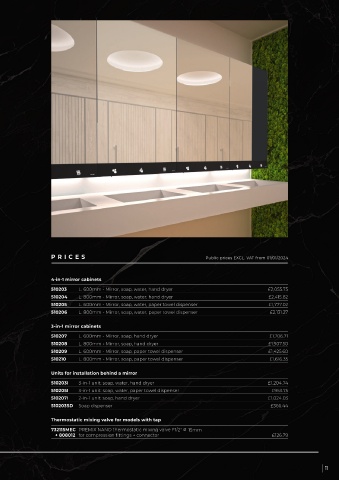

P R I C E S Public prices EXCL. VAT from 01/01/2024
304 stainless steel designer cabinet Liquid or foam electronic soap dispenser: Models with paper towel dispenser:
with matte black melamine finish. - No-waste pump dispenser. - Dispenses one sheet at a time.
- Large capacity tank: 5 litres. - Dimensions: 120 x 275 x 360mm. 4-in-1 mirror cabinets
Touch-free for improved hygiene: - Suitable for vegetable-based liquid soap - Capacity: 500 sheets.
soap dispenser, tap and hand dryer with a maximum viscosity of 3,000 mPa.s 510203 L. 600mm - Mirror, soap, water, hand dryer £2,055.75
are automatically activated when hands or specific foam soap. 510204 L. 800mm - Mirror, soap, water, hand dryer £2,415.82
are detected by infrared sensor. LED strip downlights for the basin.
510205 L. 600mm - Mirror, soap, water, paper towel dispenser £1,777.02
Electronic basin tap: 510206 L. 800mm - Mirror, soap, water, paper towel dispenser £2,131.27
Quick and easy to install: Vandal-resistant model with lock
- Reduced stagnation solenoid valve. and standard DELABIE key.
- A single electrical connection for all
the elements: 230V / 50-60Hz mains supply. - Flow rate pre-set at 3 lpm at 3 bar, 3-in-1 mirror cabinets
adjusts from 1.4 to 6 lpm. Anti-blocking: stops automatically
- Connects to the water supply inside 510207 L. 600mm - Mirror, soap, hand dryer £1,706.71
the cabinet via top or recessed inlets. - Scale-resistant flow straightener. if the soap dispenser, tap or hand dryer 510208 L. 800mm - Mirror, soap, hand dryer £1,907.50
- Water connection: M3/8". - Duty flush (~60 seconds every 24 hours are used continuously.
after the last use). 510209 L. 600mm - Mirror, soap, paper towel dispenser £1,425.60
- Concealed fixings: supplied with Internal storage shelf. 510210 L. 800mm - Mirror, soap, paper towel dispenser £1,616.35
stainless steel screws for concrete walls - Stopcock.
or reinforced wood. - For mixed water, use a PREMIX mixer.
Several cabinets can be installed Units for installation behind a mirror
- Adjustable hinges.
side-by-side to create a mirror wall.
Models with air pulse hand dryer: 510203I 3-in-1 unit: soap, water, hand dryer £1,204.74
Linking screws are provided.
Glass mirror and black glass strip - High speed: dries in 10 - 12 seconds. 510205I 3-in-1 unit: soap, water, paper towel dispenser £953.75
with illuminated pictograms. - Pulsed air at 360km/h. Airflow: 36 l/second. 30-year warranty * 510207I 2-in-1 unit: soap, hand dryer £1,024.03
- Low energy consumption: 704W. (3-year warranty for the hand dryer). 510203SD Soap dispenser £366.44
- Noise level: 74 dBA. 50 years repairability
- Class I, IP23. CE marked. * see General terms and conditions of sale Thermostatic mixing valve for models with tap
- 3-year warranty.
732115MEC PREMIX NANO thermostatic mixing valve F1/2" ∅ 15mm
+ 808012 for compression fittings + connector £126.79
