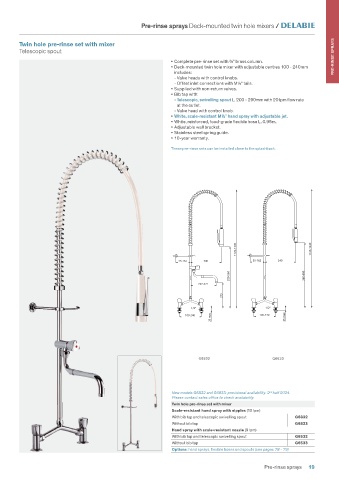

Page 21 - Professional_Catering
P. 21

Pre-rinse sprays Deck-mounted twin hole mixers /


        Twin hole pre-rinse set with mixer
        Telescopic spout
                                                             • Complete pre-rinse set with ¾" brass column.           PRE-RINSE SPRAYS
                                                             • Deck-mounted twin hole mixer with adjustable centres 100 - 240mm
                                                              includes:
                                                              - Valve heads with control knobs.
                                                              - Offset inlet connections with M½" tails.
                                                             • Supplied with non-return valves.
                                                             • Bib tap with:
                                                              - Telescopic, swivelling spout L. 200 - 290mm with 20 lpm flow rate
                                                                 at the outlet.
                                                              - Valve head with control knob.
                                                             • White, scale-resistant M½" hand spray with adjustable jet.
                                                             • White, reinforced, food-grade flexible hose L. 0.95m.
                                                             • Adjustable wall bracket.
                                                             • Stainless steel spring guide.
                                                             • 10-year warranty.
                                                             These pre-rinse sets can be installed close to the splashback.



















                                                                                    1125-1245                 1125-1245


                                                                35-162   340              35-162   340
                                                                                  320-560                   360-600

                                                                       242-322
                                                                               275

                                                                    1/2"                      1/2"
                                                                           25 max                    25 max
                                                                  100-240                   100-240






                                                                       G6832                     G6533






                                                             New models G6832 and G6833: provisional availability: 2 half 2024.
                                                                                                nd
                                                             Please contact sales office to check availability.
                                                             Twin hole pre-rinse set with mixer
                                                             Scale-resistant hand spray with nipples (10 lpm)
                                                             With bib tap and telescopic swivelling spout  G6832
                                                             Without bib tap                             G6833
                                                             Hand spray with scale-resistant nozzle (9 lpm)
                                                             With bib tap and telescopic swivelling spout  G6532
                                                             Without bib tap                             G6533
                                                             Options: hand sprays, flexible hoses and spouts (see pages 78 - 79)


                                                                                              Pre-rinse sprays  19
   16   17   18   19   20   21   22   23   24   25   26
