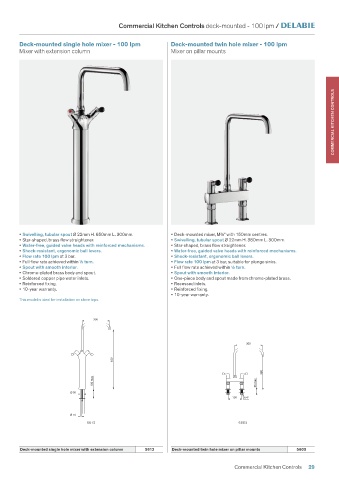

Commercial Kitchen Controls deck-mounted - 100 lpm /


        Deck-mounted single hole mixer - 100 lpm             Deck-mounted twin hole mixer - 100 lpm
        Mixer with extension column                          Mixer on pillar mounts






                                                                                                                      COMMERCIAL KITCHEN CONTROLS






























        • Swivelling, tubular spout Ø 22mm H. 650mm L. 300mm.  • Deck-mounted mixer, M¾" with 150mm centres.
        • Star-shaped, brass flow straightener.               • Swivelling, tubular spout Ø 22mm H. 380mm L. 300mm.
        • Water-free, guided valve heads with reinforced mechanisms.  • Star-shaped, brass flow straightener.
        • Shock-resistant, ergonomic ball levers.            • Water-free, guided valve heads with reinforced mechanisms.
        • Flow rate 100 lpm at 3 bar.                        • Shock-resistant, ergonomic ball levers.
        • Full flow rate achieved within ½ turn.              • Flow rate 100 lpm at 3 bar, suitable for plunge sinks.
        • Spout with smooth interior.                        • Full flow rate achieved within ½ turn.
        • Chrome-plated brass body and spout.                • Spout with smooth interior.
        • Soldered copper pipe water inlets.                 • One-piece body and spout made from chrome-plated brass.
        • Reinforced fixing.                                  • Recessed inlets.
        • 10-year warranty.                                  • Reinforced fixing.
                                                             • 10-year warranty.
        This model is ideal for installation on stove tops.



                                  300



                                                                                       300

                                         650

                                                                                             380
                                  100 max                                                  35 max


                          Ø 50
                                                                                   150   3/4"


                          Ø 16
                                5612                                                 5603




        Deck-mounted single hole mixer with extension column  5612  Deck-mounted twin hole mixer on pillar mounts  5603
