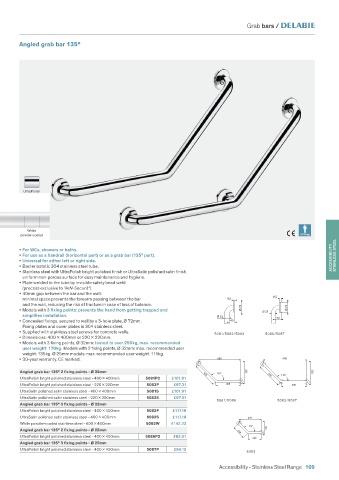

Page 111 - Accessibility-Hygienic-Accessories

Grab bars /

Angled grab bar 135°

UltraPolish

UltraSatin

White
powder-coated

• For WCs, showers or baths.
• For use as a handrail (horizontal part) or as a grab bar (135° part). ACCESSIBILITY STAINLESS STEEL
• Universal for either left or right side.
• Bacteriostatic 304 stainless steel tube.
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene.
• Plate welded to the tube by invisible safety bead weld
(process exclusive to "ArN-Securit").
• 40mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar 8,5 8,5
and the wall, reducing the risk of fracture in case of loss of balance.
• Models with 3 fixing points: prevents the hand from getting trapped and Ø 72 Ø 25 Ø 72
simplifies installation. Ø 32 40
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm. 40
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls. 5081/5082/5083 5086/5087
• Dimensions: 400 400mm or 220 220mm.
• Models with 3 fixing points, Ø 32mm: tested to over 250kg, max. recommended
user weight: 170kg. Models with 2 fixing points, Ø 32mm: max. recommended user
weight: 135kg. Ø 25mm models: max. recommended user weight: 115kg.
• 30-year warranty. CE marked. 680 680

Angled grab bar 135° 2 fixing points - Ø 32mm 283 283
135°
135°
400
400
UltraPolish bright polished stainless steel - 400 400mm 5081P2 £101.91
UltraPolish bright polished stainless steel - 220 220mm 5083P £97.31 400 400
UltraSatin polished satin stainless steel - 400 400mm 5081S £101.91
UltraSatin polished satin stainless steel - 220 220mm 5083S £97.31
5081/5086 5082/5087
Angled grab bar 135° 3 fixing points - Ø 32mm
UltraPolish bright polished stainless steel - 400 400mm 5082P £117.19
UltraSatin polished satin stainless steel - 400 400mm 5082S £117.19 375
White powder-coated stainless steel - 400 400mm 5082W £142.23
135° 156
Angled grab bar 135° 2 fixing points - Ø 25mm 220
UltraPolish bright polished stainless steel - 400 400mm 5086P2 £82.01 220
Angled grab bar 135° 3 fixing points - Ø 25mm
UltraPolish bright polished stainless steel - 400 400mm 5087P £94.12
5083
Accessibility - Stainless Steel Range 109
