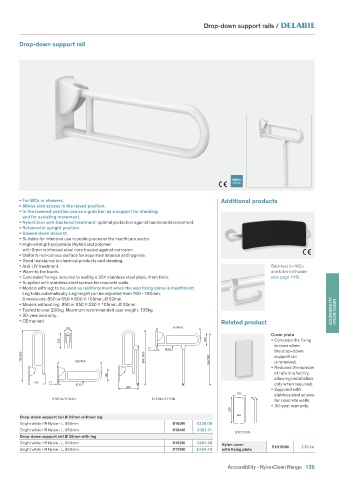

Page 141 - Accessibility-Hygienic-Accessories

Drop-down support rails /

Drop-down support rail

• For WCs or showers. Additional products
• Allows side access in the raised position.
• In the lowered position use as a grab bar, as a support for standing
and for assisting movement.
• NylonClean anti-bacterial treatment: optimal protection against bacterial development.
• Retained in upright position.
• Slowed down descent.
• Suitable for intensive use in public places or the healthcare sector.
• High-strength polyamide (Nylon) and polymer:
with 2mm reinforced steel core treated against corrosion.
• Uniform non-porous surface for easy maintenance and hygiene.
• Good resistance to chemical products and cleaning.
• Anti-UV treatment. Backrest for WCs
• Warm to the touch. and toilet roll holder
• Concealed fixings, secured to wall by a 304 stainless steel plate, 4mm thick. (see page 149)
• Supplied with stainless steel screws for concrete walls.
• Models with leg: to be used as reinforcement when the wall fixing alone is insufficient.
Leg folds automatically. Leg height can be adjusted from 760 - 780mm.
Dimensions: 850 or 650 800 105mm, Ø 32mm.
• Models without leg: 850 or 650 230 105mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg. ACCESSIBILITY NYLON CLEAN
• 30-year warranty.
• CE marked. Related product
650/850
105
105 650/850
Cover plate
230 230 180 180 • Conceals the fixing
screws when
17 Ø 32 the drop-down
17
Ø 32
750/950 750/950 650/850 800/1000 800/1000 760/780 760/780 support rail
is removed.
650/850
• Reduces the number
of rails in a facility,
180 180
allowing installation
242 17
242
17
Ø 32 only when required.
Ø 32
300
300
• Supplied with
105 stainless steel screws
N
2
0
7
5
/
1
0
N
/
1
5 5160N/5164N N 5 5162N/5170N N 17
6
4
1
6
5
1
6
for concrete walls.
• 30-year warranty.
230
Drop-down support rail Ø 32mm without leg
Bright white HR Nylon - L. 650mm 5160N £339.08
Bright white HR Nylon - L. 850mm 5164N £361.31
510150N
Drop-down support rail Ø 32mm with leg
Bright white HR Nylon - L. 650mm 5162N £461.38
Nylon cover
Bright white HR Nylon - L. 850mm 5170N £484.40 with fixing plate 510150N £35.14
Accessibility - NylonClean Range 139
