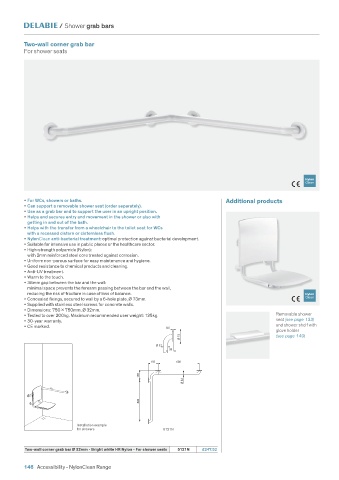

Page 148 - Accessibility-Hygienic-Accessories

/ Shower grab bars

Two-wall corner grab bar
For shower seats

• For WCs, showers or baths. Additional products
• Can support a removable shower seat (order separately).
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower or also with
getting in and out of the bath.
• Helps with the transfer from a wheelchair to the toilet seat for WCs
with a recessed cistern or cisternless flush.
• NylonClean anti-bacterial treatment: optimal protection against bacterial development.
• Suitable for intensive use in public places or the healthcare sector.
• High-strength polyamide (Nylon):
with 2mm reinforced steel core treated against corrosion.
• Uniform non-porous surface for easy maintenance and hygiene.
• Good resistance to chemical products and cleaning.
• Anti-UV treatment.
• Warm to the touch.
• 38mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar and the wall,
reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 6-hole plate, Ø 73mm.
• Supplied with stainless steel screws for concrete walls.
• Dimensions: 750 750mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg. Removable shower
• 30-year warranty. seat (see page 133)
• CE marked. 8,5 and shower shelf with
glove holder
Ø 73 (see page 149)

Ø 32
38
150 600

150
Ø 32

600

Installation example
for showers 5121N

Two-wall corner grab bar Ø 32mm - Bright white HR Nylon - For shower seats 5121N £247.52

146 Accessibility - NylonClean Range
